TMG -GH1010R Product Manual

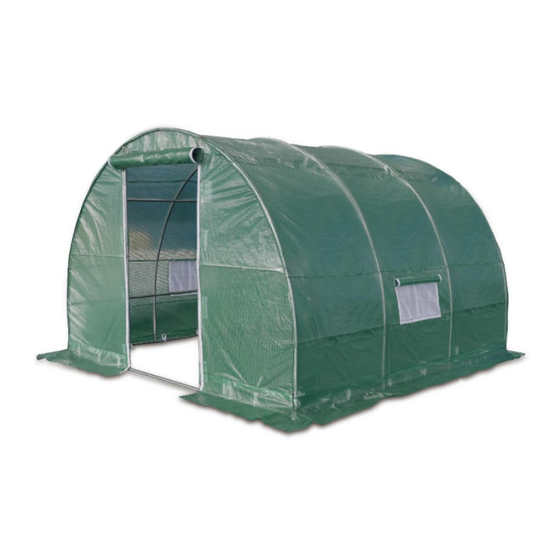

Loft x loft walk-in round tunnel greenhouse
Hide thumbs

Advertisement

Quick Links

Download this manual
Main Specifications:
W W W . T M G I N D U S T R I A L . C O M
P 0 / 13
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-GH1010R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-GH1010R

Summary of Contents for TMG TMG-GH1010R

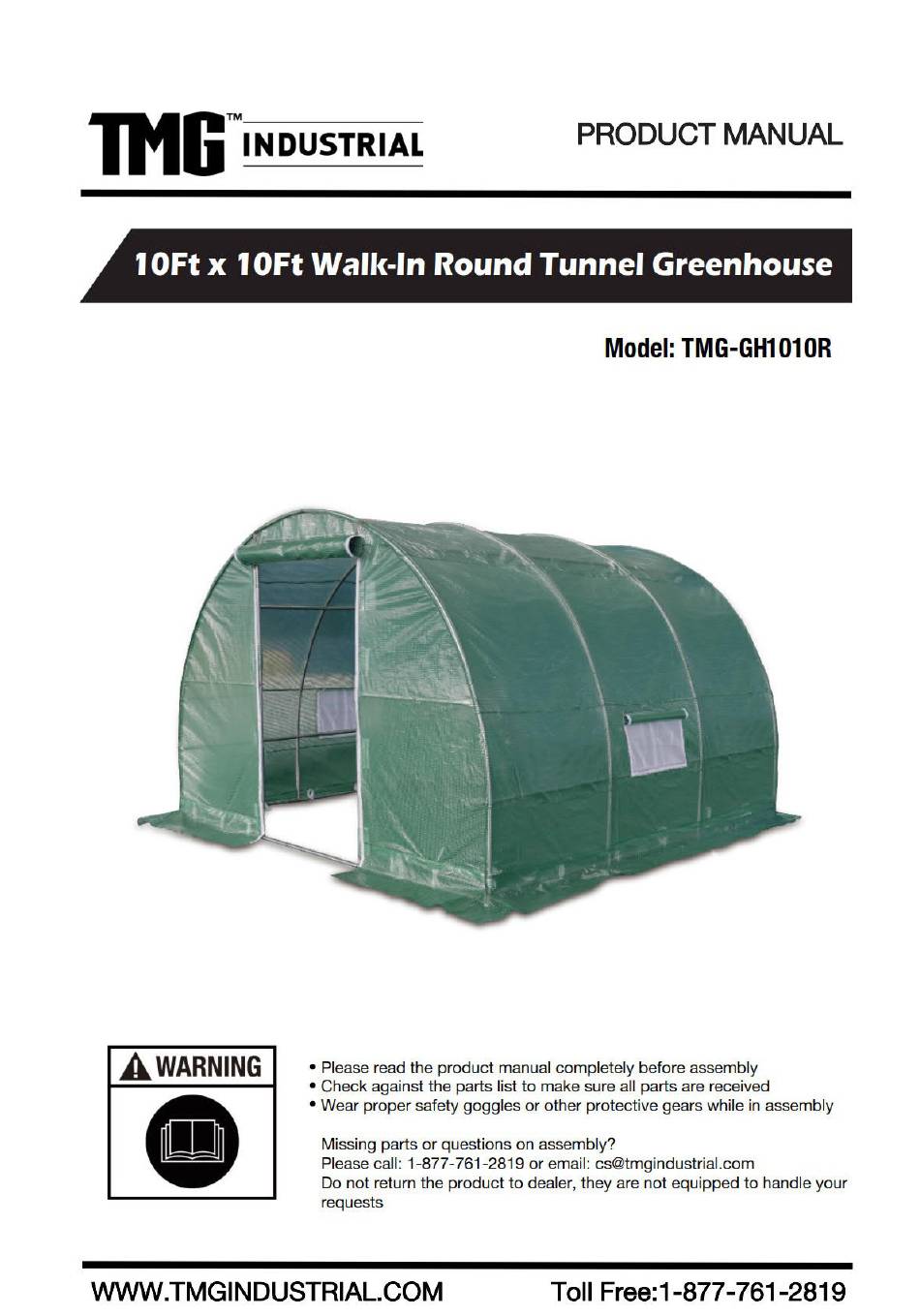

  • Page 1 Main Specifications: W W W . T M G I N D U S T R I A L . C O M P 0 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 2: Main Specifications

    Main Specifications : - Assembly size : W3 x L3 x H2 (m) / 10 x 10 x 07 (ft) Front roll up door : 1.86 x 1(m) / 6.1 x 3.3 (ft) Prior to assembly Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation.
  • Page 3 TMG-GH1010R Part List Parts Graphical Description Qty BOX code Peak arch tube Middle rafter tube Lower rafter tube (middle truss) Lower rafter tube (front and rear truss) Diagonal bracing bar (1st and last span) Roof purlin (horizontal tube) Roof purlin...
  • Page 4 Bottom tension bar (rear cover) Ceiling cross bar (front truss) Door frame lower tube (front and rear truss) Door frame upper tube (front truss) Upper tube (rear truss) Tube clamp Mushroom head hexagon socket head bolt M6x65mm Mushroom head hexagon socket head bolt M6x40mm Mushroom head hexagon socket head bolt M6x30mm...
  • Page 5 Step 2 : Assemble all trusses  The building includes 4 trusses : (1) Front truss, (1) rear truss, and (2) middle trusses. The front truss fabric panels and the top fabric (#15) have been connected as a whole.  Parts used to install the front truss and rear truss in this step (refer to figure 1) : - (1x2) Peak arch tube (#1) - (2x2) Middle rafter tube (#2)
  • Page 6 Figure 2  Lay down all (4) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#18) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.(refer to figure 3) Figure 3 Step 3 : Put up the front (1...
  • Page 7 (7) Roof purlin (#5) (5) Mushroom head hexagon socket head bolt (#10) Figure 4 Step 4 : Put up the rest middle trusses  Repeat the previous step to erect the second span truss, and then connect the other end Roof purlin (#5) with the truss with bolts (#10), and complete the installation of the second truss to the sixth truss in turn.
  • Page 8 Figure 5 Step 5 : Put up the rest rear trusses Finally, the rear truss (the 4th span truss) is erected, and then the Roof purlin (#5A)  is connected with the truss with bolts (#10). (refer to figure 6) ...
  • Page 9 Step 6 : Install the diagonal bracing bars (#7)  Connect diagonal bracing bar (#4) on the first and last span between the Lower rafter tube (#3A) and (#3) with tube clamp (#9), use bolt (#12) and ( #10) (figure 7) ...
  • Page 10 Figure 8 Step 8 : Install the remaining parts on the rear truss (figure 9)  Parts used in this step : (2) Bottom tension bar (#6) (1) Frame horizontal tube (#6B) (1) Frame horizontal tube (#6C) (1) Bottom tension bar (#7A) (1) Door frame lower tube (#8) (1) Upper tube (#8B) (1) Mushroom head hexagon socket head bolt (#10)
  • Page 11 Step 9 : Install the waterproof plug and fix the truss  The ends of rafters (#3A) and (#3) at the lower part of the truss, as well as the outer roof purl in (#5) and (#5A) at the front and rear truss, shall be provided with waterproof plugs.
  • Page 12 Figure 11 Step 11 : Installing fabric panel  Lift cover or panel (#15) to fully cover the truss, noting that the side with the door needs to be placed on the front door arch. Then adjust the four sides evenly (refer to figure 12) Figure 12 Step 12 : Knitted fabric...
  • Page 13 Figure 13  Fasten the fabric front door. Use the Velcro on the fabric to tie the fabric tightly to the bottom tension bar (#6) at the lower part of the front truss door frame lower tube (#8) and door frame upper tube (#8A) .(refer to figure 14) Figure 14 W W W .

  • Page 14: After The Installation

    After the Installation Inspect the building periodically to make sure the parts are firmly fixed and the whole building is well supported. Check all bolts and hardware connectors to make sure they are in place and tightened. Check the base plates, adjust the ropes if necessary and clean the cover regularly.
