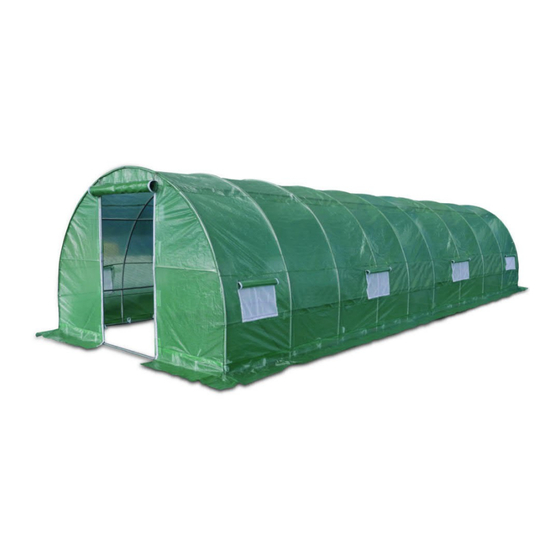

10ft x 30ft walk-in round tunnel greenhouse

Advertisement

Quick Links

Main Specifications:
W W W . T M G I N D U S T R I A L . C O M
P 0 / 12
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-GH1030R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TMG TMG-GH1030R

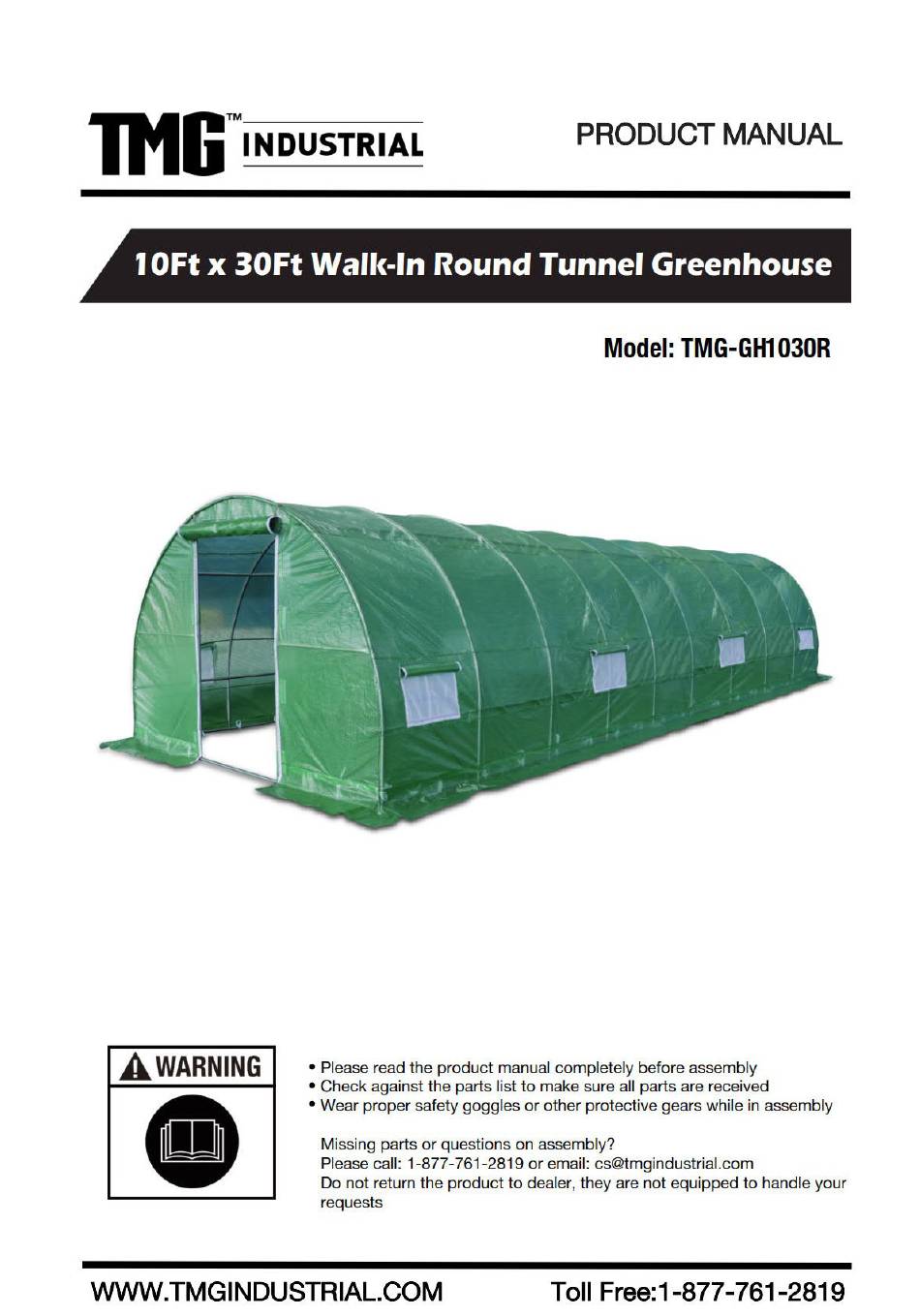

  • Page 1 Main Specifications: W W W . T M G I N D U S T R I A L . C O M P 0 / 12 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 2: Main Specifications

    Main Specifications : - Assembly size : W3 x L9 x H2 (m) / 10 x30 x 07 (ft) Front roll up door : 1.86 x 1(m) / 6.1 x 3.3 (ft) Prior to assembly Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation.
  • Page 3 TMG-GH1030R Part List Parts Graphical Description Qty BOX code Peak arch tube Middle rafter tube Lower rafter tube (middle truss) Lower rafter tube (front and rear truss) Diagonal bracing bar (1st and last span) Roof purlin (horizontal tube) Roof purlin...
  • Page 4 Bottom tension bar (rear cover) Ceiling cross bar (front truss) Door frame lower tube (front and rear truss) Door frame upper tube (front truss) Upper tube (rear truss) Tube clamp Mushroom head hexagon socket head bolt M6x65mm Mushroom head hexagon socket head bolt M6x40mm Mushroom head hexagon socket head bolt M6x30mm...
  • Page 5 Step 2 : Assemble all trusses  The building includes 10 trusses : (1) Front truss, (1) rear truss, and (8) middle trusses. The front truss fabric panels and the top fabric (#15) have been connected as a whole.  Parts used to install the front truss and rear truss in this step (refer to figure 1) : - (1x2) Peak arch tube (#1) - (2x2) Middle rafter tube (#2)
  • Page 6 Figure 2  Lay down all (10) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#18) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.(refer to figure 3) Figure 3 Step 3 : Put up the front (1...
  • Page 7 Figure 4 Step 4 : Put up the rest middle trusses  Repeat the previous step to erect the second span truss, and then connect the other end Roof purlin (#5) with the truss with bolts (#10), and complete the installation of the second truss to the sixth truss in turn.
  • Page 8 Step 5 : Put up the rest rear trusses Finally, the rear truss (the 10th span truss) is erected, and then the Roof purlin  (#5A) is connected with the truss with bolts (#10). (refer to figure 6)  Parts used in this step : (7) Roof purlin (#5A) (5) Mushroom head hexagon socket head bolt (#10) Figure 6...
  • Page 9 Figure 7 Step 7 : Install the remaining parts on the front truss (figure 8)  Parts used in this step : (2) Bottom tension bar (#6) (2) Door frame horizontal tube (#6A) (1) Door frame lower horizontal tube (#7) (1) Ceiling cross bar (#7B) (2) Door frame lower tube (#8) (2) Door frame upper tube (#8A)
  • Page 10 Step 8 : Install the remaining parts on the rear truss (figure 9)  Parts used in this step : (2) Bottom tension bar (#6) (1) Frame horizontal tube (#6B) (1) Frame horizontal tube (#6C) (1) Bottom tension bar (#7A) (1) Door frame lower tube (#8) (1) Upper tube (#8B) (1) Mushroom head hexagon socket head bolt (#10)
  • Page 11 Figure 10 Step 10 : Installation of riding clamp and waterproof plug  Fix the roof purlin (#5) and (#5A) close to the ground on the concrete ground with riding clip (#13) and expansion bolt (#16). The installation dimension shown in the figure is for reference (refer to figure 11).
  • Page 12 Step 11 : Installing fabric panel  Lift cover or panel (#15) to fully cover the truss, noting that the side with the door needs to be placed on the front door arch. Then adjust the four sides evenly (refer to figure 12) Figure 12 Step 12 : Knitted fabric...
  • Page 13: After The Installation

     Fasten the fabric front door. Use the Velcro on the fabric to tie the fabric tightly to the bottom tension bar (#6) at the lower part of the front truss door frame lower tube (#8) and door frame upper tube (#8A). (refer to figure 14) Figure 14 After the Installation Inspect the building periodically to make sure the parts are firmly fixed and the whole...
