TMG -GH3040 Product Manual
  1. Manuals
  2. Brands
  3. TMG Manuals
  4. Greenhouse Kit
  5. TMG-GH3040
  6. Product manual

TMG -GH3040 Product Manual

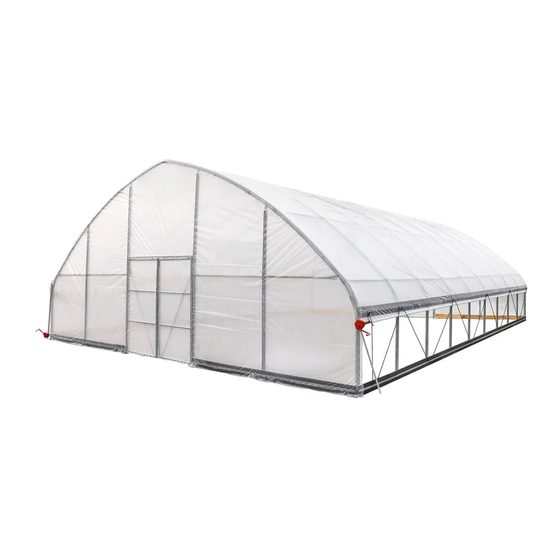

30' x 40' tunnel greenhouse grow tent
Hide thumbs Also See for TMG-GH3040:

Advertisement

Quick Links

Download this manual
www.tmgindustrial.com
0/18
Toll Free:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-GH3040 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-GH3040

Summary of Contents for TMG TMG-GH3040

  • Page 1 www.tmgindustrial.com 0/18 Toll Free:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS Overall assembled size : W9.15 x L11.7 x H4 (m) / W30 x L38.4 x H13.1 (ft)  Shoulder height : H1.43 m /4.7ft  Door : W2.2 x H2 (m) / 7.2 x 6.6 (ft)  PRIOR TO ASSEMBLY Please read the instructions carefully before installation.
  • Page 3 TMG-GH3040 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube L1470mm Upper rafter tube L1996mm Upper rafter tube L1996mm (front and rear truss) Lower rafter tube L1996mm Lower rafter tube L1996mm (front and rear truss) Shoulder tube L2090mm Shoulder tube...
  • Page 4 Door right upper vertical tubes L1977mm Connector tube L120mm Door cross tubes L1377mm Door cross tubes L1689mm Door frame cross pull tube L2154mm Ceiling cross bar L1987mm Door frame column tube L1978mm Door frame column left tube L1978mm Door frame column right tube L1978mm Door horizontal tube L990mm...
  • Page 5 Half round head bolt M6x50mm Self locking bolt and nuts M8x60mm Self locking bolt and nuts M8x70mm Hex bolt and nuts M10x70mm Hex bolt and nuts M10x30mm Hex bolt and nuts M10x120mm Self tapping screw #12x25 Self tapping screw #12x35 Square plug 30x30mm Round plug...

  • Page 6: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Mark the ground in the final building location with a line showing the positions of base plates, front doors. All  lines should be drawn from center to center of all base plate tubes. Diagonal line X must be equal to Y. Base plates : all base plates must be installed firmly with expansion bolts (#6A) on this step.
  • Page 7 STEP 2 : ASSEMBLE ALL TRUSSES. The building includes 10 trusses : (2) front and rear truss, and (8) middle trusses.  Install front and rear trusses.  PART PART 12x2 www.tmgindustrial.com 6/18 Toll Free:1-877-761-2819...
  • Page 8 Install (8) middle trusses.  PART PART 12x8 www.tmgindustrial.com 7/18 Toll Free:1-877-761-2819...
  • Page 9 Lay down all (10) trusses on the ground when the assembly is all completed and before moving to next step, and  then wrap (#33) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 10 STEP 3 : PUT UP ALL TRUSSES.  Put up the truss, use hex bolt (#23) to secure the truss to the base plates.  Attach all purlins, then wrap the sharp points with tape (#33) to prevent scratching the top fabric. PART PART www.tmgindustrial.com...
  • Page 11 Step 4: Install the front and rear door frames.  Install 2 left door frames. PART PART 26x2 www.tmgindustrial.com 10/18 Toll Free:1-877-761-2819...
  • Page 12  Install 2 right door frames. PART PART 26x2 www.tmgindustrial.com 11/18 Toll Free:1-877-761-2819...
  • Page 13 STEP 5 : INSTALLATION OF FRONT AND REAR TRUSSES. PART PART 16x2 www.tmgindustrial.com 12/18 Toll Free:1-877-761-2819...
  • Page 14 STEP 6 : INSTALL BOARDS (#36) AND REED GROOVE (#14).  Fix the board (#36) with self tapping screw (#28).  Fix the reed groove (#14) with the self tapping screw (#27). PART PART www.tmgindustrial.com 13/18 Toll Free:1-877-761-2819...
  • Page 15 STEP 7 : INSTALL FRONT AND REAR FILM.  Lift the film (#32A) and fix the film with a clip spring (#14A) from top to bottom.  Install door buckle (#17) with self tapping screw (#27).  Cut the door film as shown. PART PART 27x2...
  • Page 16 STEP 8 : INSTALL TOP COVER FILM.  when you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on one side. the cover must be pulled over the top of the truss frame without being snagged or stressed on any frame members.
  • Page 17 STEP 9 : INSTALL ROLL FILM SYSTEM.  Install the roll film tube (#16), add a round plug (#30) at the end. the film (#32) is wound on a roll film tube , and clamped with a pressure film carrier (#20). PART PART www.tmgindustrial.com...
  • Page 18  A round plug (#30) is put on both ends of the film rolling machine guide tube (#15), and the guide tube is mounted on the frame with a hex bolt (#26), and it is required to swing freely. The film rolling machine (#18) drives the roll film tube (#16) to be raised and lowered horizontally and flexibly without jamming.

  • Page 19: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the tunnel greenhouse periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
