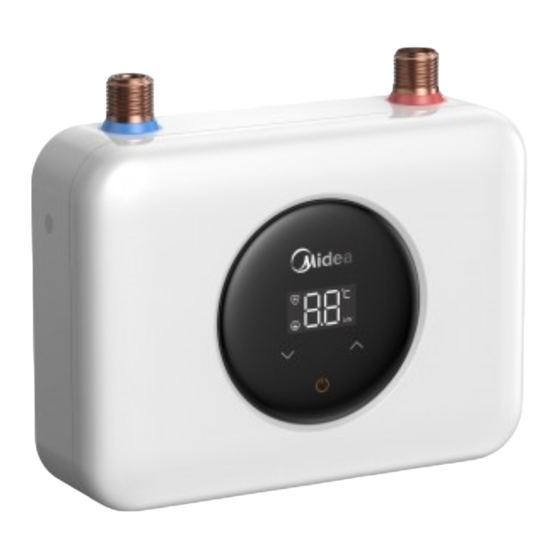

Instant Electric Water Heater
USER MANUAL
DFS55HK
Warning: All the contents of this Guide have been checked carefully. If there are any printing errors OR
misunderstanding, please contact Midea customer service team.
It will be compiled into the new version of the guide without any notice if there are any technical improvements.

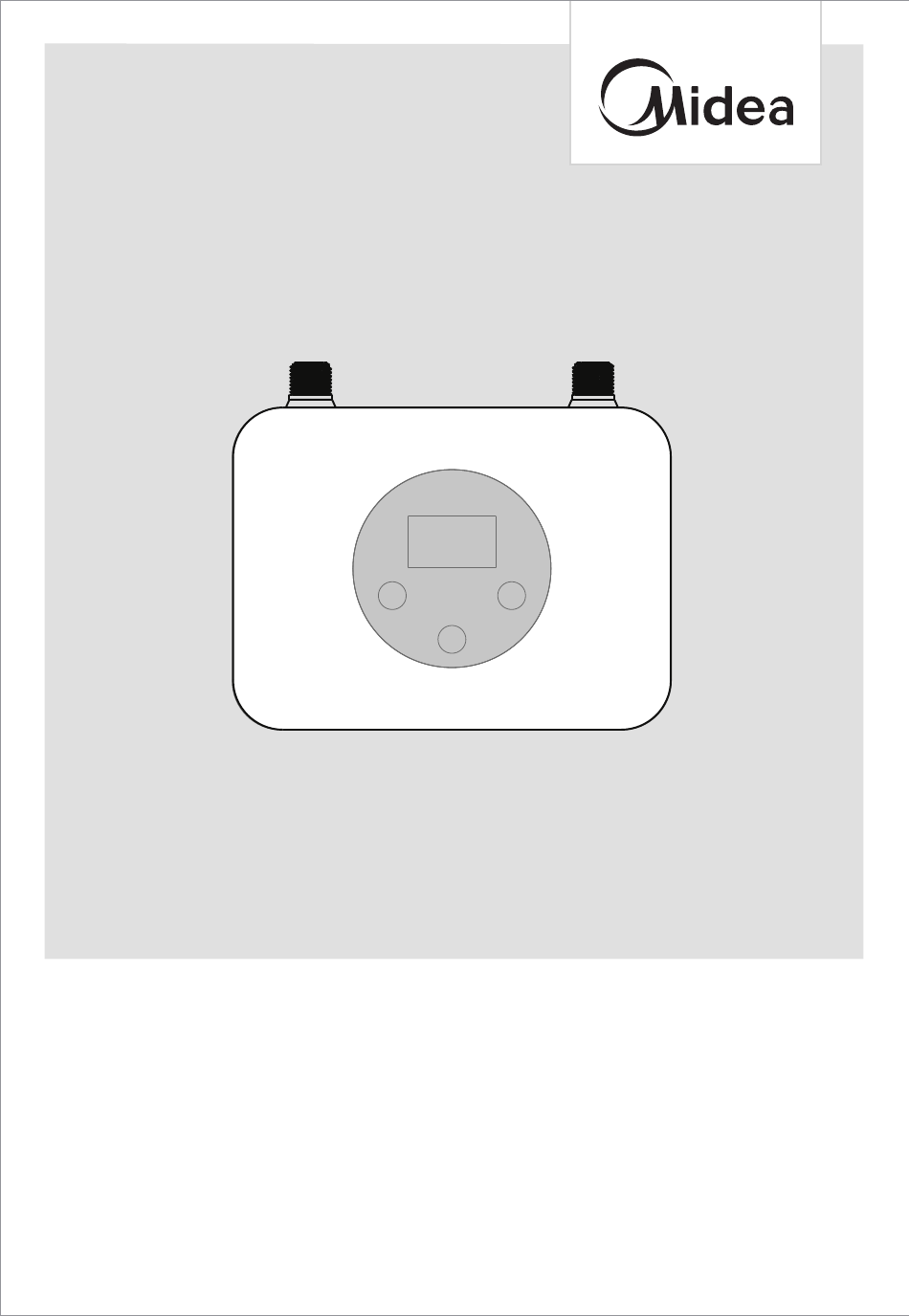

The diagram above is just for reference. Please treat the appearance of the actual product as final.
Advertisement
Table of Contents
Related Manuals for Midea DFS55HK
Summary of Contents for Midea DFS55HK
- Page 1 Warning: All the contents of this Guide have been checked carefully. If there are any printing errors OR misunderstanding, please contact Midea customer service team. It will be compiled into the new version of the guide without any notice if there are any technical improvements.
-
Page 2: Table Of Contents
Thank you for choosing Midea! Please read this user manual be carefully before using this new appliance to ensure that you have a better understanding of the product features, and know how to operate this product in a safe way. -
Page 3: Safety Instructions
Unintended use may cause hazards and loss of warranty claims. Please refer to the terms & conditions at the warranty card or Midea HK o cial website. Explanation of Symbols... - Page 4 If the power cord is damaged, please stop use the appliance immediately and contact ● Midea customer service center for product maintenance. In order to avoid a hazard due to inadvertent resetting of the Earth Leakage Circuit ●...
-
Page 5: Specifications
SPECIFICATIONS Product Model DFS55HK 220-240V~ Rated Voltage Rated Frequency 50Hz Rated Power 5700W Rated Current 24.7A Wire Specification 2.5mm Air Switch Specification ≥25A Leakage protection action current 15mA Maximum Water Pressure 0.8MPa Starting Water Flow 1.5Liters/minute Ending Water Flow 0.8Liters/minute... -
Page 6: Product Overview
PRODUCT OVERVIEW Product introduction Front shell Display Operation panel Water inlet pipe Water inlet blue Outlet pipe marking sleeve Outlet pipe red Water flow sensor marking sleeve Outlet water Water inlet temperature sensor temperature sensor Flow regulating valve Power cord Main control board Heating tube Posterior shell... - Page 7 Pruduct structure DFS55HK (Note:All dimensions are in mm) Internal Wire Diagram Thermostat / Thyristor board/ Thyristor / Heater / Power supply board/ ⑥ Display panel / ⑦ Flow sensor / ⑧ Temperature sensor INSTALLATION OF ELECTRICAL SCHEMATICS...
-
Page 8: Quick Start Guide
Accessories Plastic expansion tube Mounting screws QUICK START GUIDE Before First Use Note The water heater is correctly installed as required For the first time, water shall be supplied before power supply 1. Connecting the power cord 2. Turn on the tap 220-240V~ Earthing 3. -
Page 9: Product Installation
5. Water Supply. Check the capacity of power circuit To install DFS55HK, the copper wire core of the wire must be greater than 2.5mm . The air switch with leakage protection should be greater than 25A. The meter specification is greater than 40A. - Page 10 Plumbing Connection Put a gasket on the water inlet joint of the water heater. Put a gasket on the water outlet connector of the water heater and connect the hose assembly of the faucet as shown in the figure. Intake Outlet Water tap Wash basin...
-
Page 11: Operation Instructions
Power Cord Installation Cut o the power supply. Connect the power line to the air switch with leakage protection, and pay attention to the screw that it must be tighten but not loosened. otherwise it will cause fire (red or brown is the live line L, blue is the zero line N, and yellow or green is the ground line Water Supply After all the plumbing connection is completed, open water inlet valve of the product... - Page 12 Operation instructions 1. On / o : After the power is turned on, press the on / o key to start and shut down the machine. Set temperature When the machine is turned on, press the adjustment key to adjust the temperature， With each click, set the temperature to increase or decrease by 1 ℃, and set the temperature adjustment range: 30-48 ℃;...
- Page 13 6. Grounding indication When the icon is on, it means that the machine has no potential safety hazards and can be used safely; When the icon flashes once a second, it indicates that the ground wire is not connect- ed or in a poor connection. 7.
-
Page 14: Cleaning And Maintenance
Constant temperature function：The water heater tracks the inlet temperature and inlet flow, and automatically calculates the output power to ensure that the outlet temperature is stable within the range near the set temperature Error protection function：In the standby state, check the quality of hardware such as inlet and outlet temperature sensors Function of detecting the outlet water temperature sensor: when the outlet water temperature sensor is detected to be open circuited or short circuited, the "set... -
Page 15: Troubleshooting
TROUBLESHOOTING SYMPTOMS REASONS SUGGESTIONS Check whether there is Power failure ● Plug in the power power failure supply but there is Action of high temperature Inform professionals to ● no display on the protection repair screen Power board failure Inform professionals to repair ●... -
Page 16: Trademarks, Copyrights And Legal Statement
Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea. -
Page 17: Disposal And Recycling
DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. -
Page 18: Data Protection Notice
Economic Area. Further information are provided on request. You can contact our Data Protection O cer via MideaDPO@midea.com. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via... - Page 19 www.mideahk.com MideaHK 2022 all rights reserved...
