Midea DSK45U5 Instruction Manual

Instant electric water heater
Hide thumbs

Advertisement

Quick Links

Download this manual

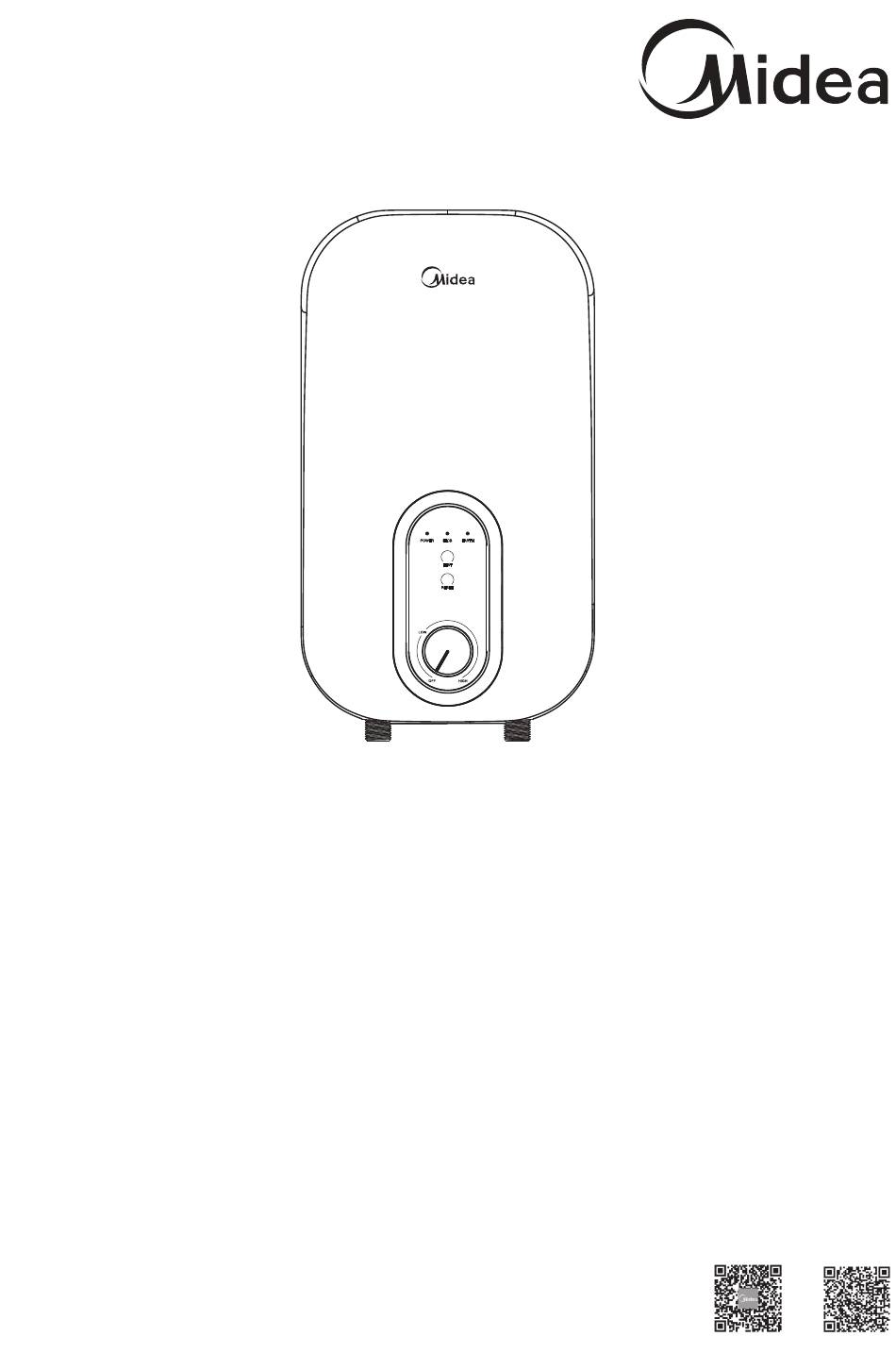

The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Instant Electric Water Heater
Instruction Manual
Model: DSK45U5
Thank you very much for purchasing our water heater.
Before installing and operating your water heater, please
read this manual carefully and keep it for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSK45U5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea DSK45U5

Summary of Contents for Midea DSK45U5

  • Page 1 Instant Electric Water Heater Instruction Manual Model: DSK45U5 Thank you very much for purchasing our water heater. Before installing and operating your water heater, please read this manual carefully and keep it for future reference.

  • Page 2: Table Of Contents

    Sincerely thank you for selecting our electric water heater. Please read this manual carefully before use; correctly grasp the methods for installation and use of this electrical water heater, to make full use of its excellent performances. Please do preserve the instruction manual for future reference.

  • Page 3: Cautions

    1. CAUTIONS To prevent personal injury, injury to others and property damage, the instructions below must be followed. Incorrect operation due to failure to follow instructions will cause harm or damage. Special Cautions ● This water heater is for household, and it can be installed wherever place that need hot water. ●...

  • Page 4: Product Introduction

    The water heater should be earthed before use. Please ensure that the resistance of household earth wire is <4Ω. Using water heater without earthed is highly prohibited. 2. PRODUCT INTRODUCTION 2.1 Technical Performance Parameters Model DSK45U5 Rated Voltage 220-240V~ Rated Frequency 50/60Hz...
  • Page 5 2.2 Parts Identification Terminal Block Main control board Thermal cut out Tank Indicator Stainless light board steel circlip Silicon control Flow Switch Marker for Marker for water inlet wateroutlet Blue Water outlet Water inlet 2.3 Internal Wire Diagram ①：Thermal cut out ②：Terminal Block ③：Heating Elements ④：Flow Switch...

  • Page 6: Unit Installation

    3. UNIT INSTALLATION 3.1 Installation Instruction ① Check the capacity of power circuit; ② Power cord installation; ③ Water heater installation; ④ Plumbing connection; ⑤ Power supply connection; ⑥ Water Supply. 3.2 Power Cord Installation Step 1 Step 2 Remove the power cord wire pressing plate and Remove the screws at the bottom of the unit.
  • Page 7 NOTE The installation position of neutral line (blue), live line (brown/red) and earth line (green/yellow) should be corresponding to the other end on wiring terminals. 3.3 Water Heater Installation Determine installation position of the unit according to length of power cord / position ①...
  • Page 8 Water flow adjusting valve with filter (Fig.2) Cold water inlet NOTE Water flow adjusting valve with filter must be used when install the unit. Blue marker stands for water inlet, red marker stands for water outlet. Do not overexert to avoid damaging the water heater.

  • Page 9: Methods Of Using

    4. METHODS OF USING 4.1 Operating Of The Unit Switch on the power supply, the unit will take self-inspection for 2s, “ELCB”; "EARTH" blue indicator light will be on (well connected to the Ground). Green indicator light will be on (under the condition of no electricity leakage). When the water flow exceeds 1.5L/min, rotate the knob clockwise to switch on heating power rotate switch, heating indicator light will be on, the unit start to work.

  • Page 10: Maintenance

    5. MAINTENANCE ● This electric water heater should be installed at the place without sunshine or rain spray. Please cut off power supply if not use for long time. ● Please blow down the water for about 10 seconds to drain away the impurities in the pipe before connecting the water source to the electric water heater to avoid blockage of water heater.

  • Page 11: Troubleshooting

    6. TROUBLESHOOTING SYMPTOMS REASONS SUGGESTIONS 1. Power supply error; 1. Check whether power Switch on the power 2. PCB error; is cut supply, ELCB indicator 3. Electricity leaks. 2. Contact authorized light is off. service personnel for repair. 1. The “TEMP” knob is off; 1.
