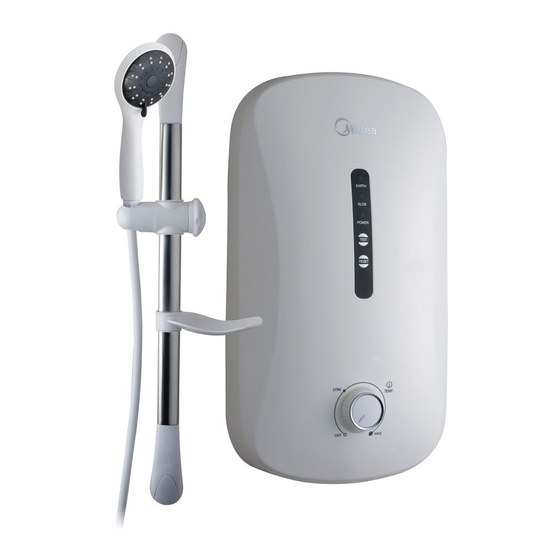

Midea DSK45P5 Instruction Manual

Instant electric water heater
Hide thumbs

Advertisement

Quick Links

Download this manual
Instant Electric Water Heater
Instruction Manual
For Model: DSK45P5
DSK38P5
The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Thank you very much for purchasing our water heater.
Before installing and operating your water heater, please
read this manual carefully and keep it for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSK45P5 and is the answer not in the manual?

Questions and answers

Related Manuals for Midea DSK45P5

Summary of Contents for Midea DSK45P5

  • Page 1 Instant Electric Water Heater Instruction Manual For Model: DSK45P5 DSK38P5 The diagram above is just for reference. Please take the appearance of the actual product as the standard. Thank you very much for purchasing our water heater. Before installing and operating your water heater, please...

  • Page 2: Table Of Contents

    Sincerely thank you for selecting our electric water heater. Please read this manual carefully before use; correctly grasp the methods for installation and use of this electrical water heater, to make full use of its excellent performances. Please do preserve the instruction manual for future reference.

  • Page 3: Cautions

    1. CAUTIONS To prevent personal injury, injury to others and property damage, the instructions below must be followed. Incorrect operation due to failure to follow instructions will cause harm or damage. Installation must be carried out by a qualified personnel and in compliance to the local authority regulations. Special Cautions ●...

  • Page 4: Product Introduction

    2. PRODUCT INTRODUCTION 2.1 Technical Performance Parameters DSK45P5 DSK38P5 Model Rated Voltage 220V~ Rated Frequency 50Hz 4500W Rated Power 3800W Rated Current 20.5A 17.3A Dia. Of Wire Code 2.5mm² 2.5mm² Air Switch ≥25A ≥25A Rated Pressure 0 MPa Minimum Flow Rate 1.2 Liters/minute...
  • Page 5 2.3 Internal Wire Diagram Indicator Light And Key Board Temperature Sensor Flow Sensor Relay ELCB Blue Relay Yellow/Green Main Control Board Thermal Cut Out Heating Elements Temperature Adjusting Board Silicon Control WIRING DIAGRAM FOR DSK**P5...

  • Page 6: Unit Installation

    3. UNIT INSTALLATION 3.1 Installation Instruction ① Check the capacity of power circuit; ② Power cord installation; ③ Water heater installation; ④ Plumbing connection; Power supply connection; ⑤ ⑥ Water Supply. 3.2 Power Cord Installation Step 1 Step 2 Remove the power cord wire pressing plate and Remove the screws at the bottom of the unit.
  • Page 7 NOTE The installation position of neutral line (blue), live line (brown/red) and earth line (green/yellow) should be corresponding to the other end on wiring terminals. 3.3 Water Heater Installation Determine installation position of the unit according to length of power cord / position ①...
  • Page 8 Correct installation Wrong installation To main line wire Circuit Power breaker knob L(Red) N(Blue) E(Yellow/Green) Outlet Inlet Valve Water flow adjusting valve with filter Valve (Fig.2) NOTE Water flow adjusting valve with filter must be used when install the unit. Blue marker stands for water inlet, red marker stands for water outlet.

  • Page 9: Methods Of Using

    4. METHODS OF USING 4.1 Operating Of The Unit Switch on the power supply, the unit will take self-inspection for 2s, “ELCB” green indicator light will be on (under the condition of no electricity leakage). When the water flow exceeds 1.2L/min, rotate the knob clockwise to switch on heating power rotate switch, heating indicator light will be on, the unit start to work.

  • Page 10: Maintenance

    5. MAINTENANCE ● This electric water heater should be installed at the place without sunshine or rain spray. Please cut off power supply if not use for long time. ● Please blow down the water for about 10 seconds to drain away the impurities in the pipe before connecting the water source to the electric water heater to avoid blockage of water heater.

  • Page 11: Troubleshooting

    6. TROUBLESHOOTING SYMPTOMS REASONS SUGGESTIONS 1. Power supply error; 1. Check whether power Switch on the power 2. PCB error; is cut supply, ELCB indicator 2. Contact authorized light is off. service personnel for repair. 1. The “TEMP” knob is off; 1.
  • Page 12 www.midea.com/global...

This manual is also suitable for:

Dsk38p5
