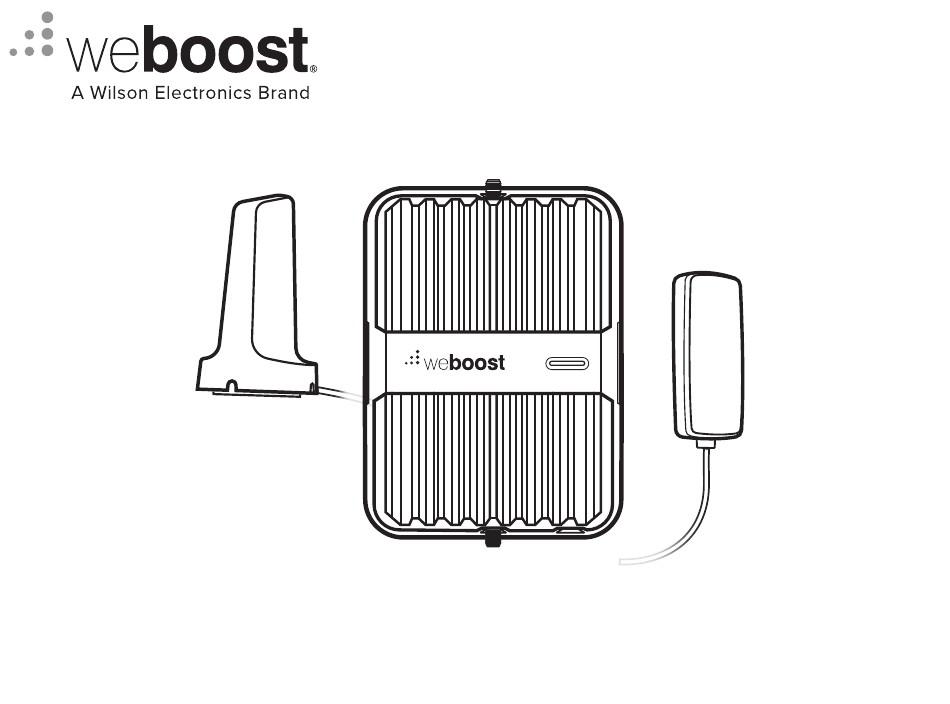

  • Page 1 Installation Guide ® AM100-Pro Vehicle Cell Signal Booster Kit...
  • Page 2: Table Of Contents

    Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 STEP 1 Mount the Outside Antenna .
  • Page 3: Package Contents

    Package Contents Booster & Outside Power Inside Mounting Antenna Cable Antenna Bracket (311216) (850029) (314401)
  • Page 4: Step 1 Mount The Outside Antenna

    STEP 1 Mount the Outside Antenna 12 in. away from windows Identify a location on the top of your vehicle (including sunroofs) that is: ■ Near the center of the roof . ■ At least 12 inches away from any other antennas .
  • Page 5 (STEP 1 cont .) See options on how cable can be routed with different vehicles. Note: When going though a car wash, remember to remove your antenna . Car/Sedan: Cable routed into rear side door . SUV/Van/Hatchback: Cable routed into top of hatchback door .
  • Page 6: Step 2 Mount The Inside Antenna

    STEP 2 Mount the Inside Antenna Identify a place to mount the in-vehicle seat mounting antenna, either on the side of the seat or on option the dash and mount . The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used .
  • Page 7: Step 3 Connect Outside Antenna To Booster

    STEP 3 Connect Outside Antenna to Booster Connect the cable from the outside antenna to the port labeled “Outside Antenna” on the AM100-Pro booster . Note: The Velcro® strip on the bottom of the booster can also be used to keep booster from sliding around .
  • Page 8: Step 5 Connect Power Supply To Booster

    STEP 5 Connect Power Supply to Booster Connect the 12V power supply cord to the end of the booster, labeled "12V DC" then plug the power adapter into vehicle’s 12V DC power supply . Push switch to ON position . If your AM100-Pro is working correctly, the light on the booster will be green .
  • Page 9: Booster Light Patterns

    Booster Light Patterns SOLID GREEN This indicates that your AM100-Pro booster is functioning properly and there are no issues with installation . SOLID RED Booster has shutoff . This is due to a feedback loop condition called oscillation . This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower .
  • Page 10 (Booster Light Patterns cont .) NOTE: The AM100-Pro booster can be reset by disconnecting and reconnecting the power supply . After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the booster .
  • Page 11: Troubleshooting

    Troubleshooting FIXING BLINKING OR RED LIGHT ISSUES This section is only applicable if the Booster is red or blinking red and you are not experiencing the desired signal boost. ■ Unplug the booster’s power supply . ■ Relocate the inside and outside antenna further from each other . The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before .
  • Page 12 (Troubleshooting cont .) FREQUENTLY ASKED QUESTIONS How can I contact customer support? Customer Support can be reached at support@techlineglobal .com . Why do I need to create distance between the Outside Antenna and Inside Antenna? Antennas connected to a booster create spheres of signal . When these spheres overlap, a condition called oscillation occurs .
  • Page 13: Safety Guidelines

    Safety Guidelines Use only the power supply provided in this package . Use of a non-weBoost product may damage your equipment . Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone . RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons .
  • Page 14: Specifications

    Specifications AM100-Pro Cell Signal Booster Model 520005 Connectors 50 Ohms Antenna Impedance Frequency 1920-1980 MHz, 1710-1785 MHz, 2500-2570 MHz, 880-915 MHz, 2110-2170 MHz, 1805-1880 MHz, 2620-2690 MHz, 925-960 MHz Uplink Power 2100 MHz B1 900 MHz B8 1800 MHz B3 24 dBm 25 dBm 23 dBm...
  • Page 15: Warranty

    2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials . Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase . Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost .
  • Page 16 3301 East Deseret Drive, St . George, UT www .weboost .com support@techlineglobal .com Copyright © 2021 weBoost . All rights reserved . Wilson Electronics products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents NOT AFFILIATED WITH WILSON ANTENNA...
