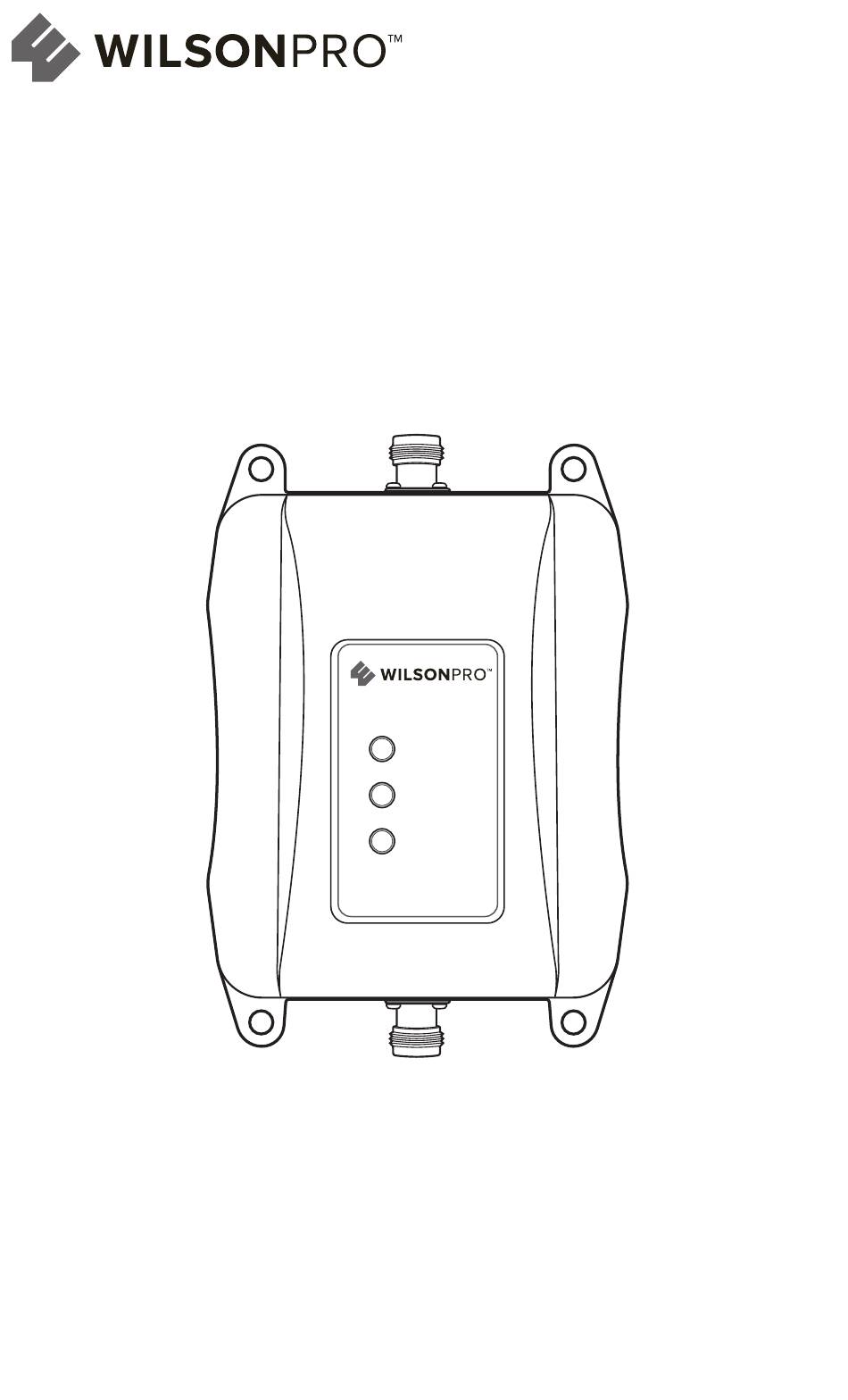

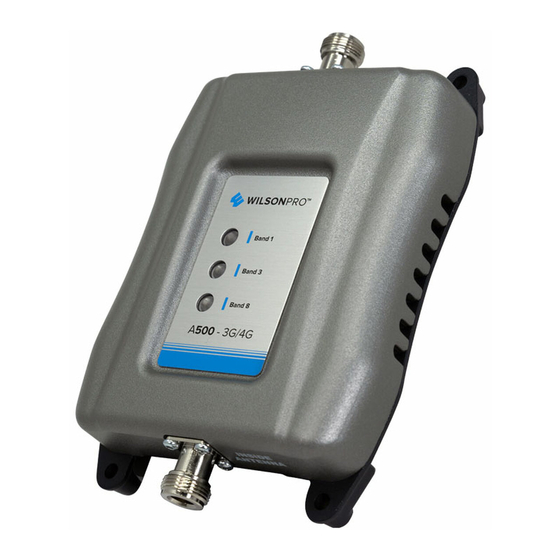

- Page 1 A WILSON ELECTRONICS, LLC COMPANY WilsonPro A500 Cellular Signal Booster User Manual...
- Page 2 ______ Index Package Contents Preparation STEP 1: Find The dBm Reading On Your Phone STEP 2: Measure Signal Strength For Inside Antenna STEP 3: Measure Signal Strength For Outside Antenna STEP 4: Temporarily Mount The Outside Antenna STEP 5: Connect The System STEP 6: Compare Results STEP 7:...
- Page 3 Bracket Bracket This device may be operated ONLY in a fi xed location for in-building use. The signal booster unit is designed for use in an indoor, temperature controlled environment (< 100 degrees Fahrenheit) WilsonPro A500 CELL PHONE SIGNAL BOOSTER...
- Page 4 Recommended: Power Strip NOTE: These instructions will walk you through a “soft” install process to fi nd the optimal locations for the inside and outside antennas, then through the process of the permanent installation. CELL PHONE SIGNAL BOOSTER WilsonPro A500...
- Page 5 • Speedtest by Ookla is another free app Android users: do a signal strength test and network speed test. • Network Cell Info Lite, available for free on the Google Play store, provides nearly real-time monitoring of cellular and WiFi signals WilsonPro A500 CELL PHONE SIGNAL BOOSTER...
- Page 6 EXCELLENT GOOD FAIR POOR DEAD ZONE 3G/1x -70dBm -71 to -85dBm -86 to -100dBm -101 to -109dBm -110dBm (typically voice) 4G/LTE -90dBm -91 to -105dBm -106 to -110dBm -111 to -119dBm -120dBm (typically data) CELL PHONE SIGNAL BOOSTER WilsonPro A500...
- Page 7 Note: The Outside Antenna must be at least 6 meters vertical or 15 meters horizontal from the Inside Antenna for best performance. Make sure the Inside Antenna and outside Antennas are facing away from each other. WilsonPro A500 CELL PHONE SIGNAL BOOSTER...
- Page 8 Note: The Outside Antenna must be at least 6 meters vertical or 15 meters horizontal from the Inside Antenna for best performance. Make sure the Inside Antenna and outside Antennas are facing away from each other. CELL PHONE SIGNAL BOOSTER WilsonPro A500...
- Page 9 Window Entry Cable Connect the supplied Coax Cable to end of booster labeled Inside Antenna. Inside Antenna Power up the Booster. To protect Booster from power surges, connect to a power strip. WilsonPro A500 CELL PHONE SIGNAL BOOSTER...
- Page 10 4 times the power and signal amplifi cation 10dB 10 times the power and signal amplifi cation 12dB 16 times the power and signal amplifi cation 20dB 100 times the power and signal amplifi cation CELL PHONE SIGNAL BOOSTER WilsonPro A500...
- Page 11 Mount, or use an existing pipe in an optimal signal location. Watch out for power lines. Outside Antenna (pole mount) Drip Holes need to face down Inside Antenna WilsonPro A500 Mounting on existing roof exhaust pipe would be a good time-saver option. Drip Holes need to face down WilsonPro A500...
- Page 12 : Mounting on side of roof (Good Option) Outside Antenna (fl ush mount) Inside Antenna WilsonPro A500 Window Entry Cable Drip Holes If needed, cable clips can be need to face down purchased at most hardware stores CELL PHONE SIGNAL BOOSTER WilsonPro A500...
- Page 13 Use anchors, washers and screws to attach Wall Bracket. Slip Inside Antenna onto the Wall Mount Bracket to secure. slide into mount anchor & screw anchor & screw Wall Mount & hardware drywall WilsonPro A500 CELL PHONE SIGNAL BOOSTER...
- Page 14 Outside Antenna If needed, cable clips can be purchased at most hardware stores CELL PHONE SIGNAL BOOSTER WilsonPro A500...
- Page 15 Un- plug and re-plug in power supply. 4 BEST: Increase the distance (horizontally or vertically) between the Outside and Inside antenna. Add cable if needed. Un-plug and re- plug in power supply. WilsonPro A500 CELL PHONE SIGNAL BOOSTER...
- Page 16 Rotate the Outside Antenna in small increments (roof/pole mount only). Un-plug and re-plug power supply. • Move the Outside Antenna to a di erent location. Un-plug and re-plug power supply. • Change the method of mounting the Outside Antenna. Un-plug and re-plug power supply. CELL PHONE SIGNAL BOOSTER WilsonPro A500...
- Page 17 ______ Specifi cations WilsonPro A500 Specifications Product WilsonPro Signal Booster Model Number WilsonPro A500 Connectors N-Female Antenna Impedance OHm Frequency MHz 1920-1980 / 2110-2170 1710-1785 / 1805-1880 880-915 / 925-960 Bands Gain Slope 16dB 20dB 16dB Uplink 74dB 71dB 80dB...
- Page 18 This is a CONSUMER device. The WilsonPro A500 is an ICASA Approved and Registered Device. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- Page 19 ______ Antenna Kit Options The following accessories are to be used with the WilsonPro WilsonPro A500 Booster. INSIDE ANTENNA EXPANSION KITS BT512952 – 1 Extra PANEL antenna expansion kit: 1 x Wall mount panel antenna 1 x 2-way splitter 1 x 15m and 1x 0.5m cable lengths ended with connectors BT512969–...
- Page 20 ______ Warranty 1 YEAR WARRANTY weBoost Signal Boosters are warranted for one (1) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost.
