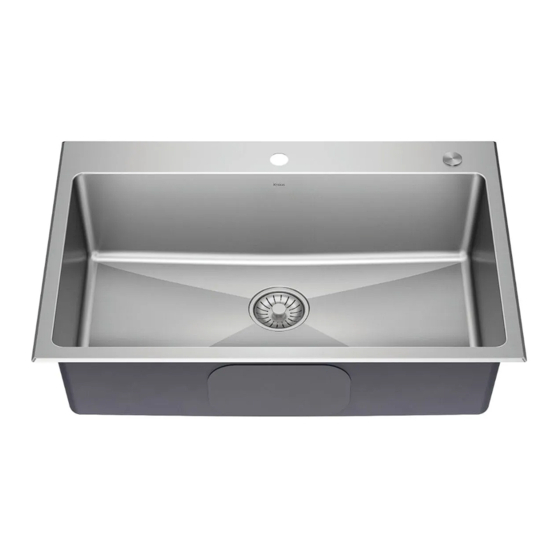

- Page 1 INSTALLATION MANUAL Stainless Steel Dual Mount Kitchen Sink and Faucet Combo KCL-1706 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I REV. February 1, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Cleaning And Maintenance
Toll-Free: 800-775-0703 or customerservice@kraususa.com While these step-by-step instructions are intended to assist in the safe installation of a Kraus sink, this product is likely to perform best when installed by a licensed professional. The failure to follow these instructions or to hire a professional when needed may result in personal injury or property damage and may void the warranty. -
Page 4: Tools You Will Need
Tape Measure Pencil Putty Knife Scissors Screwdriver Closed Toe Shoes NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Kitchen sinks with countertop materials other than wood, marble or granite. Parts List Sink KHT600-33 Kitchen Faucet KPF-2820SFS Strainer ST-5... - Page 5 Kitchen Sink Installation Sink Dimensions 3 1/2" (89mm) 1 3/8" (35mm) 2 1/4" (57mm) 3 7/8" (100mm) R3/4" (20mm) 30 1/2" (774.34mm) 33" (838.2mm) Model #: KHT600-33 Sink Dimensions: 33” x 22” x 9 1/8” Min Cabinet Size: 36” Matching Grid: KBG-600-33 Drain Model #: ST-5...
-
Page 6: Top Mount Installation
Top Mount Installation Step 1. Position Template Check the cut-out template against the actual sink to ensure a proper · sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. Step 2. - Page 7 Step 3. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. ! CAUTION - To avoid the risk of personal injury, wear safety glasses and cut resistant gloves with non-slip grip when cutting. NOTE: Please use the appropriate saw that best fits your countertop material.
-
Page 8: Step 4. Attach Mounting Hardware
Step 4. Attach Mounting Hardware · Attach mounting hardware to the prongs protruding from the underside of the sink rim. · Make sure the hooked side of the mounting clip is facing away from the sink. Insert... - Page 9 Step 5. Apply Silicone or Plumber's Putty · Clean and dry the surface around the opening of the sink. · Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink.
- Page 10 Step 6. Secure Sink to Countertop • Insert the sink into the opening, check the alignment of the sink to the cutout in the countertop and press firmly. • Tighten the screws in the front of the sink, followed by the ones in the back and on the sides of the sink. •...
- Page 11 Step 7. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. Run water into sink and check for leaks. ·...
- Page 12 Step 1. Determine Reveal Type · Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flush Reveal) KRAUS Recommended Installation Type 3/8" Positive Reveal Flush/Zero Reveal 1/8" Negative Reveal 3/8" POSITIVE 1/8"...
- Page 13 Step 2. Position Template · Check the cut-out template against the actual sink to ensure a proper sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. Step 3.
- Page 14 Step 4. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material. Step 5. Set Up Mounting Brackets · Turn countertop over and align sink with countertop. Decide location for mounting brackets.
- Page 15 Step 6. Drill Hole In Countertop · Drill 3/8" diameter x 1/2" deep hole in the countertop. Step 7. Install Anchors Insert anchors into drilled holes and lightly tap with a hammer until flush. ·...
- Page 16 Step 8. Secure Sink to Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly. Step 9.
- Page 17 Step 10. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. · Run water into sink and check for leaks.
-
Page 18: Prior To Installation
· Make sure that you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. Turn off the hot and cold water supply at the angle stops. Clean sink or countertop to ·... - Page 19 Diagram and Parts List F. Screws A. Faucet Body G. Weight B. Flange H. Weight Clip C. Rubber Washer I. Quick Connector D. Metal Washer E. Mounting Nut J. Hex Wrench...
- Page 20 Faucet Dimensions 10 5/8" [270.7mm] 8 7/8" 3 1/2" [227.0mm] [90.1mm] Ø2 1/4" [57.0mm] 3/8” compression Installer Tip: Shut off main water supply before installing new faucet.
-
Page 21: Step 1. Installing The Faucet
Step 1. Installing the Faucet Shut off the water supply. Place faucet (A) through the hole in countertop. Secure the faucet (A) to the countertop using the rubber washer (C), metal washer (D) and mounting nut (E) provided. Tighten screws (F). (2N.m Max) Step 2. - Page 22 Step 3. Securing the Faucet Assembly Install the weight clip (H) at the point of the hose marking "weight here". Insert the weight (G) onto the weight clip (H) by sliding it down onto the weight clip (H). Step 4. Connect Waterlines to Main Valve Attach waterlines to angle stops and tighten until snug.
- Page 23 Step 5. Flushing and Checking for Leaks Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet on to the warm position where it mixes hot and cold water.
-
Page 24: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Bonnet nut has Remove the cover button. Loosen set come loose screw with hex wrench. Remove the handle. - Page 25 Kraus warrants the structure and finish of the Kitchen Sink to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the sink was Kitchen Sink was first installed.
- Page 26 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 27 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 28 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 29 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
