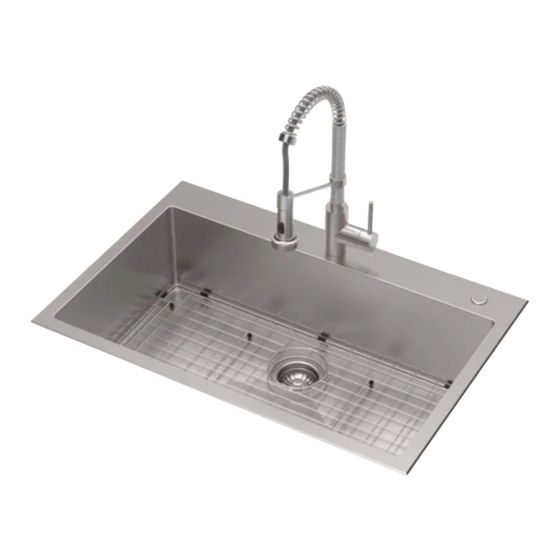

- Page 1 INSTALLATION MANUAL All-In-One Kitchen Set KCA-1102 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. December 11, 2020...
- Page 2 For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or customerservice@kraususa.com...
-
Page 3: Prior To Installation
Max countertop thickness: 1 1/2" The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. -
Page 4: Tools You Will Need
Tools you will need: Safety Goggles Drill Silicone Adhesive Jig Saw Phillips Screwdriver Pencil Putty Knife Tape Measure Scissors Screwdriver NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Kitchen sinks with countertop materials other than wood, marble or granite. - Page 5 Sink Dimensions: 3 1/2" (88.9mm) 2" (50.8mm) 1 3/8" (35mm) 4 1/2" (114.3mm) 3 1/2" (90mm) 3/8" 30 1/2" (774.7mm) (10mm) 33" (838.2mm) 3/8" (10mm) Model #: KHT400-33 Sink Dimensions: 33” x 22” x 9” Min Cabinet Size: 36” Matching Grid: KBG-T400-33 Drain Model #: ST-1...
-
Page 6: Topmount Installation
Topmount Installation Step 1. Position Template · Check the cut-out template against the actual sink to ensure a proper sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. Step 2. - Page 7 Step 3. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material.
- Page 8 Step 4. Attach Mounting Hardware · Attach mounting hardware to the prongs protruding from the underside of the sink rim. · Make sure the hooked side of the mounting clip is facing away from the sink. Insert...
- Page 9 Step 5. Apply Silicone or Plumber's Putty · Clean and dry the surface around the opening of the sink. · Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink.
- Page 10 Step 6. Secure Sink to Countertop • Insert the sink into the opening, check the alignment of the sink to the cutout in the countertop and press firmly. • Tighten the screws in the front of the sink, followed by the ones in the back and on the sides of the sink. •...
- Page 11 Step 7. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. Run water into sink and check for leaks. · Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC ·...
- Page 12 Step 1. Determine reveal type · Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive, or Flush Reveal) KRAUS Recommended Installation Type 3/8" Positive Reveal Flush/Zero Reveal 1/8" Negative Reveal 3/8" POSITIVE 1/8"...
- Page 13 Step 2. Position template · Check the cut-out template against the actual sink to ensure a proper sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. Step 3.
- Page 14 Step 4. Cut countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material. Step 5. Set up mounting brackets · Turn countertop over and align sink with countertop. Decide location for mounting brackets.
- Page 15 Step 6. Drill hole in countertop · Drill 3/8" diameter x 1/2" deep hole in the countertop. Step 7. Install anchors · Insert anchors into drilled holes and lightly tap with a hammer until flush.
-
Page 16: Step 9. Attach Mounting Hardware
Step 8. Secure sink to countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly. Step 9. -
Page 17: Maintenance
Step 10. Install plumbing fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. · Run water into sink and check for leaks. Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC ·... - Page 18 Faucet Diagram and Parts List A. Spray Head B. Faucet Body C. Mounting Hardware C1. Rubber & Metal Washer C2. Mounting Nut C3. Mounting Screws D. Quick Connector Weight E1. Weight Clip E2. Weight 2.5mm Hex Wrench...
-
Page 19: Faucet Dimensions
Faucet Dimensions: 10 3/4" (274mm) 3 1/2" (88mm) 25° Ø 1 7/8" 8 3/4" (48mm) (221mm) 90° Ø 2 1/8" (54mm) 9/16" - 24UNF Installer Tip: Shut off main water supply before installing new faucet. - Page 20 Step 1. Remove mounting hardware Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove mounting hardware (C) from faucet body (B). Step 2. Installing the faucet assembly Optional No Escutcheon Installation. Insert faucet body through the hole in the sink.
- Page 21 Step 3. Securing the faucet assembly Install the rubber washer and metal washer (C1) onto the threaded mounting shank. Thread the nut (C2) onto the mounting shank. Lock the nut (C2) into position by tightening the screws (C3). Do not overtighten. Step 4.
- Page 22 Step 5. Securing the faucet assembly Install the weight clip (E1) at the point of the hose marking "weight here". Insert the weight (E2) onto the clip (E1) by sliding it down onto the clip (E1). Step 6. Making the waterline connections Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a...
- Page 23 Step 7. Flushing and checking for leaks Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet on to the warm position where it mixes hot and cold water.
-
Page 24: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Bonnet nut has come loose Remove the cover button. Loosen set screw with hex wrench. Remove the handle. - Page 25 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 26 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 27 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 28 If you are an Authorized Partner please contact a Partner Support Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8954 Partnersupport@kraususa.com In requesting warranty service, please be ready to provide: Proof of purchase. A description of the problem. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance...
- Page 29 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
