- Page 1 DS -200 PROFESIONAL STEREO POWER AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

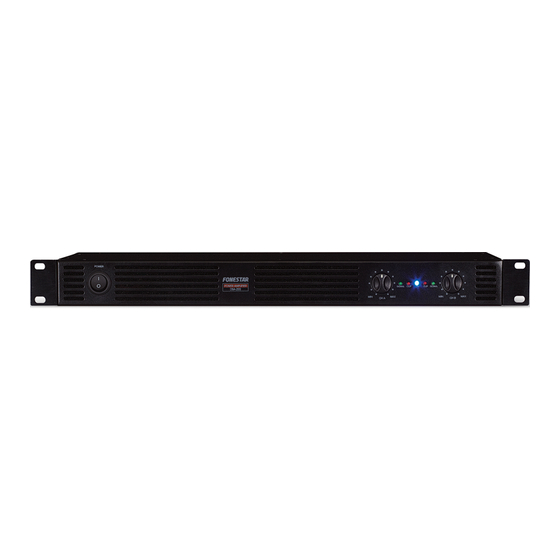

DESCRIPTION - Professional stereo power amp. Highly efficient class D amplifier circuit. Switched power source. CONTROLS AND FUNCTIONS FRONT PANEL POWER: equipment on/off switch. 2, 8.- Volume controls for each channel. 3, 7.- SIGNAL: output signal LED indicators for each channel. 4, 6.- CLIP: peak signal LED indicators for each channel. -
Page 5: Stereo Mode
CONNECTION - Before making any connections make sure that all the equipment is switched off. Check that the volume controls CH A and CH B are at their minimum. - The loudspeakers must be connected in a series/parallel circuit so that the charge impedance of the loudspeakers is the same as the power amp output charge impedance and that the power supplied by power amp does not exceed what is withstood by the loudspeakers. -
Page 6: Bridge Mode
BRIDGE MODE Move the MODE selector on the back of the power amp to the to the BRIDGE position. In this mode, the input from the two channels is the input signal from channel CH B. The two channels from the power amp are connected internally so that their power is combined in just one output. -
Page 7: Technical Specification
TECHNICAL SPECIFICATION DSA-200 CHARACTERISTICS Professional stereo power amp. Energy efficient class D amplifier circuit. Switched power supply. POWER Stereo mode: 180 + 180 W RMS at 4 Ω 100 + 100 W RMS at 8 Ω Bridge mode: 360 W RMS at 8 Ω... -
Page 8: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no...
