Proceed as follows for installation:
1. Place the stove onto one of its sides taking care that
the internal baffles and the brazier do not fall out
of their housing.
2. Remove the PVC guard from the thread of the foot,
screw the locknut on the foot and position the
plate.
3. Screw the foot on the monobloc unit and fasten the
fan plate.
4. Mount two sections of flexible hose approximately
40 cm long with the corresponding conduit
tightening bands.
5. For models e904C - e904k '97 - e904M the kit is
furnished with a special probe pipe (Pic. 4)
which is assembled to the stove as follows:
-unscrew the screw situated in the back-piece of
the stove;
-position the probe pipe matching the hole with
the screw hole;
-first pass the probe through the ø8 hole situated
in the rear part of the motor support and then
inside the pipe letting it pass for nearly 10 cm
(Pic. 5);
-again screw on the screw previously removed
thus fastening the pipe to the back-piece of
the stove.
6. Bring the monobloc unit to its normal position.
7. Remove the two semi-sheared openings from the
rear protective panel and pass the hot -air
exhaust conduits through, connecting them to the
outlets. It is recommended that the flexible hose
not be laid in to excessively long paths and that it
be insulated as best as possible. (See the instructions
attached to the stove).
Upon request, PIAZZETTA S.p.A. will provide the
flexible Ø 75 conduit, air outlets, "Y-unions" and the
\conduit tightening bands for fastening.
8. Insert the panel plug in the slot located behind the rear
panel of the stove with the central pin facing upwards
(Pic.1).
If you cannot find the seat for the panel plug (IEC) on
the rear panel, insert the IEC pin on the predisposed
bracket in the fan support (Pic.6).
9. Make the electrical connection to the panel plug
inserting the grounding clip (yellow-green wire) on the
upper central pin of the three present (Pic.2).
10.Next connect the power cord provided to the panel plug
(Pic.2) and insert it in the electrical outlet.
KEY
1. FAN
2. RADIO CONTROL BOX
3. RADIO CONTROL UNIT
4. PT PROBE
5. PROBE FASTENING BRACKET TF:RMC)STATIC
6. FAN SUPPORT PLATE
7. BOX NUT
8. FOOT
9. I.E.C. PLUG
44

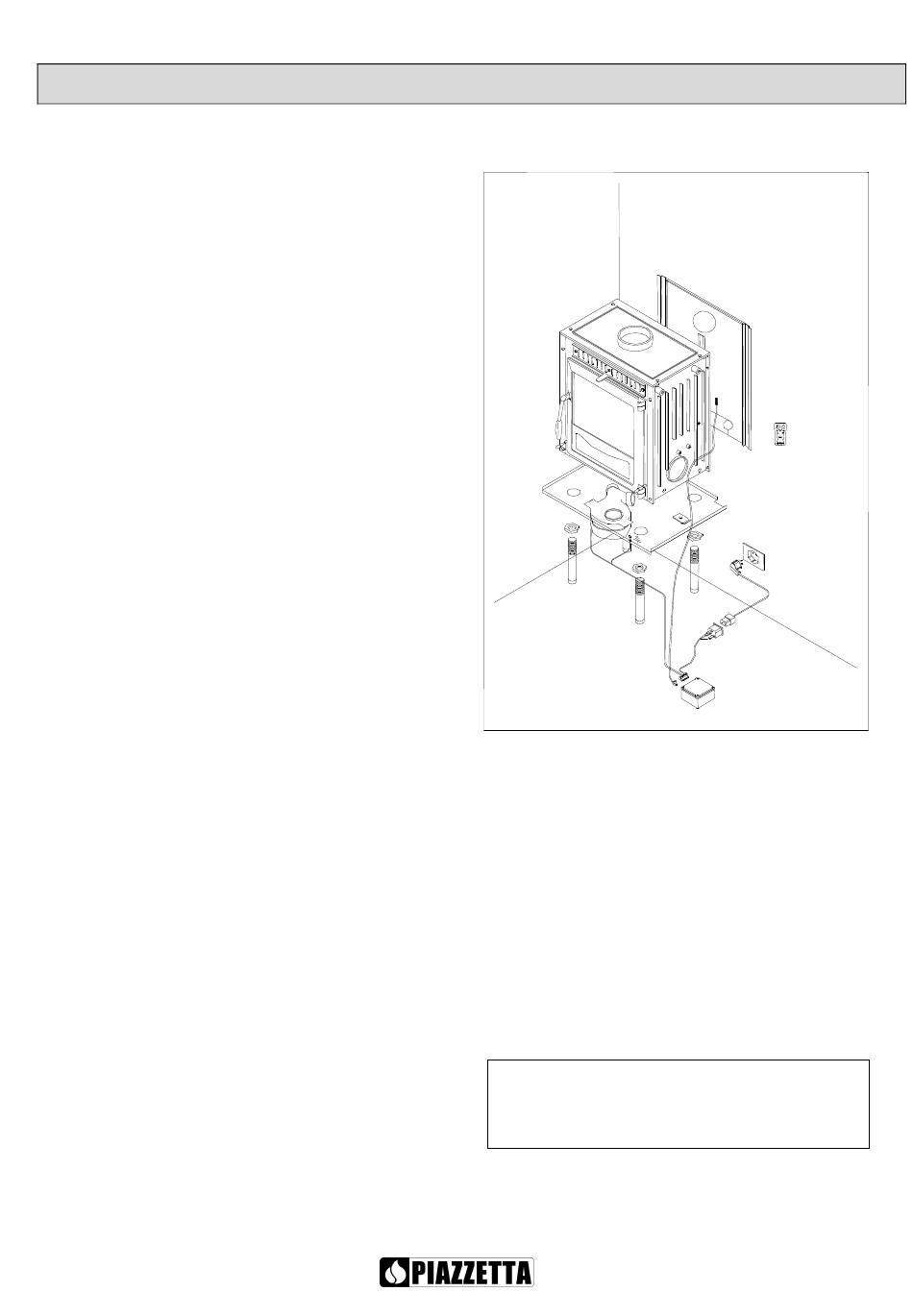

5. INSTALLING VENTILATION KIT e904c
6
1
6
5
7
8
4
N.B.: Keep the radio control box far from heat
sources such as flexible conduit or metal parts
that could become hot positioning it beneath the
product
3
9
2
