Eurotech ReliaGATE 50-21 Quick Start

Cell Activity LED
Power LED
What's in the Development Kit?
The development kit includes the following components:
• ReliaGATE multi-service gateway with
o Wind River Linux 4.3 operating system
o Everyware™ Software Framework (ESF) and
Denali routing application
o GPS
o Wi-Fi (IEEE 802.11)
o Cellular (GSM/GPRS or CDMA)
o IEEE 802.15.4/Zigbee
o Four USB 2.0 host ports
o Two Gigabit Ethernet ports
o Two EIA-232/485 port (5-wire)
o Two CAN2.0 busses
o VGA display output
o LED status indicators
o
General-purpose inputs and outputs
(with 12-position terminal block mating connector)
• 3-in-1 antenna for GPS, Wi-Fi, and cellular
(Contact Eurotech for use of Zigbee feature.)
• Null modem serial cable
• Ethernet crossover cable
• 12 VDC power adapter and AC power cord
(with 2-position terminal block mating connector)
Mounting option (bumpers and screws) for use when
•
brackets are not installed.
What Do I Need to Provide?
• Internet access for ReliaGATE (Ethernet – DHCP)
• Development PC with Internet access
• VGA display and USB keyboard
110126-9000B
®
Standard
ReliaGATE 50-21 Development Kit
What are the Cellular Options?
ReliaGATE offers a GSM/GPRS or CDMA option for
cellular network connectivity. Contact your Eurotech sales
representative for part numbers.
• To install your activated SIM card for GSM/GPRS,
remove the SIM access panel.
• CDMA versions support activation on Sprint or
Verizon networks.
How Do I Set Up the Development Kit?
Hardware Connections
To prepare your ReliaGATE, complete the following steps:
1. Connect the 3-in-1 antenna provided with your kit as
follows:
o Cable labeled 2.4-2.5 / 4.9-6 GHz to Wi-Fi
o Cable labeled 2.1-2.5 /4.4-6 GHz to Div
o Cable labeled 800-1250 / 1650-2700 MHz to Cell
o Cable labeled 3V/5V GPS to GPS
2. Connect a VGA display and USB keyboard.
3. Connect the lower Ethernet port to an Ethernet
network with Internet access.
4. Connect the 12 VDC power adapter to the DC power
input, and then connect the adapter to AC power. The
Power LED lights green when power is successfully
connected.
5. The system will boot the Linux operating system to
the GRUB menu displayed on the graphics console.
6. Press Enter to select the graphics console.
7. After the message startall –force is displayed,
press Enter for the login prompt.
Quick Start

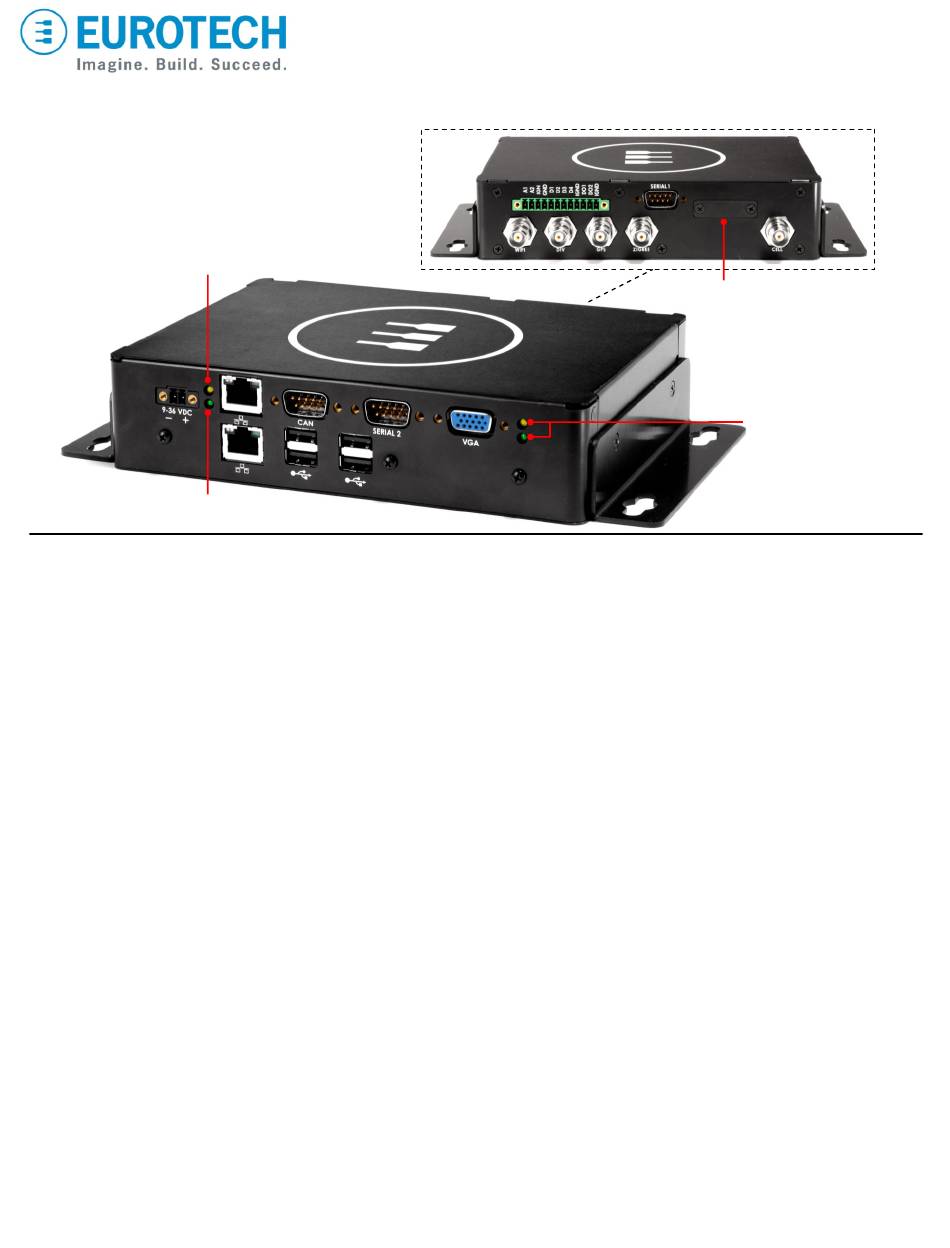

SIM Access Panel
User-configurable
LEDs (2)
