Eurotech EDCK4000 Quick Start

What's in the Development Kit?
The development kit includes the following components:
• Helios mobile gateway with
o VGA and Wi-Fi
o Cellular modem (EDCK4011)
o Wind River Linux 4.2
o Everyware™ Software Framework (ESF)/Denali
routing application
o Cloud Publish application
o Hex key for Helios USB bay
• Everyware™ Device Cloud (EDC) Demonstration
Board and Programmable Logic Controller (PLC)
mounted on Plexiglas
• Antennas
o Wi-Fi antenna
o GPS antenna
o Cellular antenna (EDCK4011)
• Cables
o PLC serial cable
o Interdevice power cable (red and black wire)
o Ethernet crossover cable for accessing Denali
o Null modem serial cable
• Power Supplies
o 24 VDC power supply and AC power cord for the
Helios, EDC Demonstration Board, and PLC
o 12 VDC power supply and AC power cord for the
Helios in standalone use only
• USB Flash Drives
o
Utiliboot for reloading Linux operating system
o ESF/Denali and Cloud Publish for reloading the
applications
o FreeDOS for recovering Helios
• Getting Started Guide (110124-3018) included on
ESF/Denali and Cloud Publish USB flash drive
110124-3017B
EDC Development Kit
What Do I Need to Provide?
• Internet access for Helios (Ethernet, Wi-Fi, or Cellular)
• PC with Internet access
• VGA display and USB keyboard
What is the Everyware Cloud?
• The EDC Development Kit leverages Eurotech's
Helios mobile gateway running the Denali routing
application, plus the power of ESF, to provide a
complete, cloud-ready development platform.
• The development kit is designed to provide you with a
quick and easy start to publishing device data to the
Everyware Cloud.
• Eurotech's Everyware Cloud is a cloud-based
architecture that quickly connects devices to build and
maintain an end-to-end M2M application. With the
Everyware Cloud, you can publish device and sensor
data, enable automatic notifications and perform
actions on real-time data using Rules, and use REST
APIs to query the stored data into your back-end
applications.

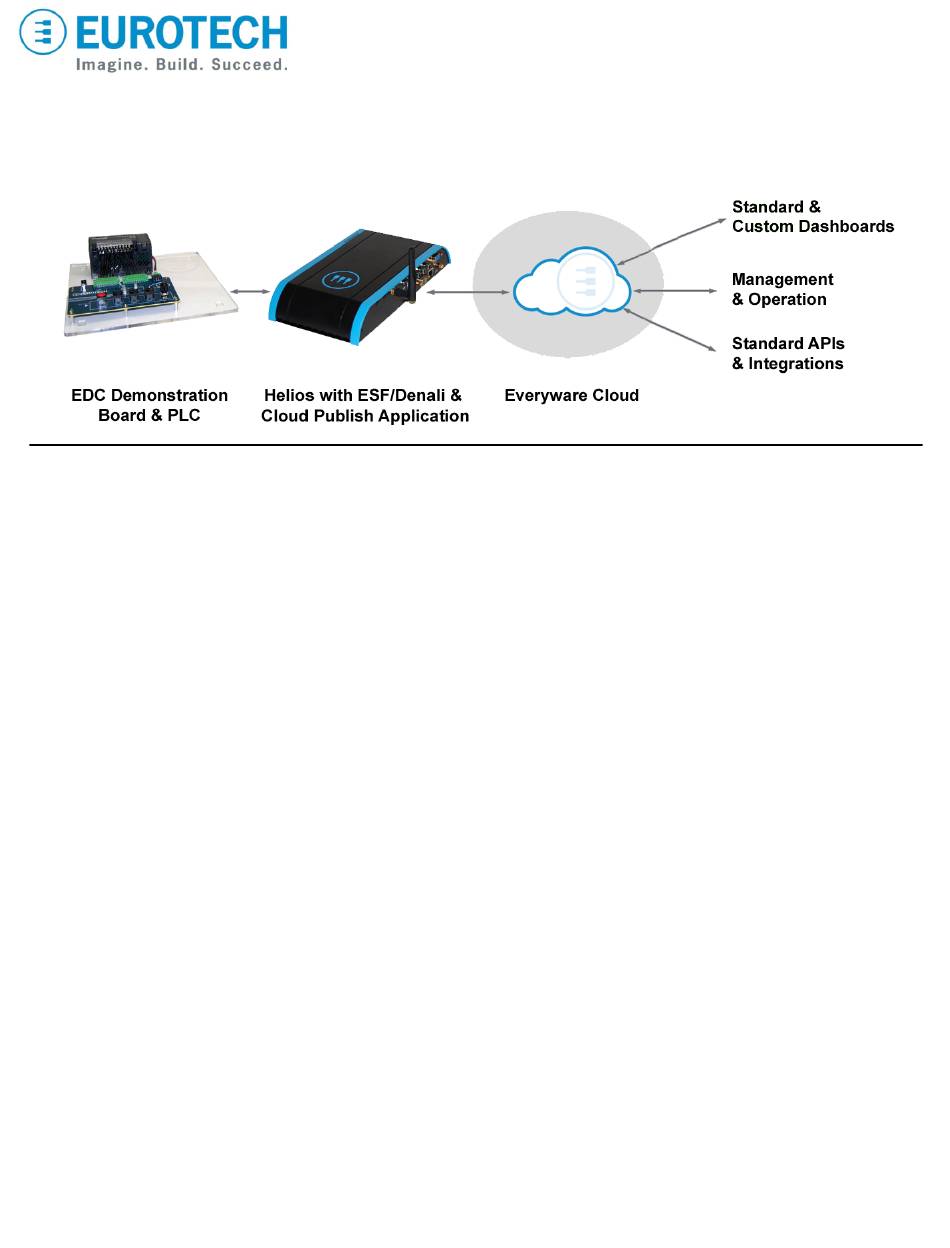

How Does the Development Kit Work?
• EDC Demonstration Board connects switches,
controls, and LEDs to the PLC.
• Helios reads from and writes to the PLC using a serial
connection.
• ESF/Denali routing application runs on the Helios,
connecting the mobile gateway to the Everyware
Cloud via one of its available network interfaces.
• Helios periodically publishes the PLC data to the
Everyware Cloud.
• Controls sent to the Everyware Cloud are forwarded
to the Helios and the PLC.
Quick Start
EDCK4000
EDCK4011
October-2012
