Eurotech Helios CPDK7510 Quick Start

Removable
USB Bay
Cover
What's in the Box?
The development kit includes the following components:
• Helios platform with VGA expansion board
• 12 VDC adapter and regional AC power cord
• GPS antenna
• Tool to open USB Bay with spare retaining washers
• FreeDOS USB flash drive
Preparing the Development Kit
Your development kit has been designed to work out of the
box. Follow these steps to prepare it for use:
1. Connect a VGA display to the VGA output socket.
The display must be connected before power.
2. Connect a USB mouse and USB keyboard.
3. Connect the 12 VDC adapter to the DC power input
and then to AC power. The power LED lights green
when the adapter is connected.
110124-3007A

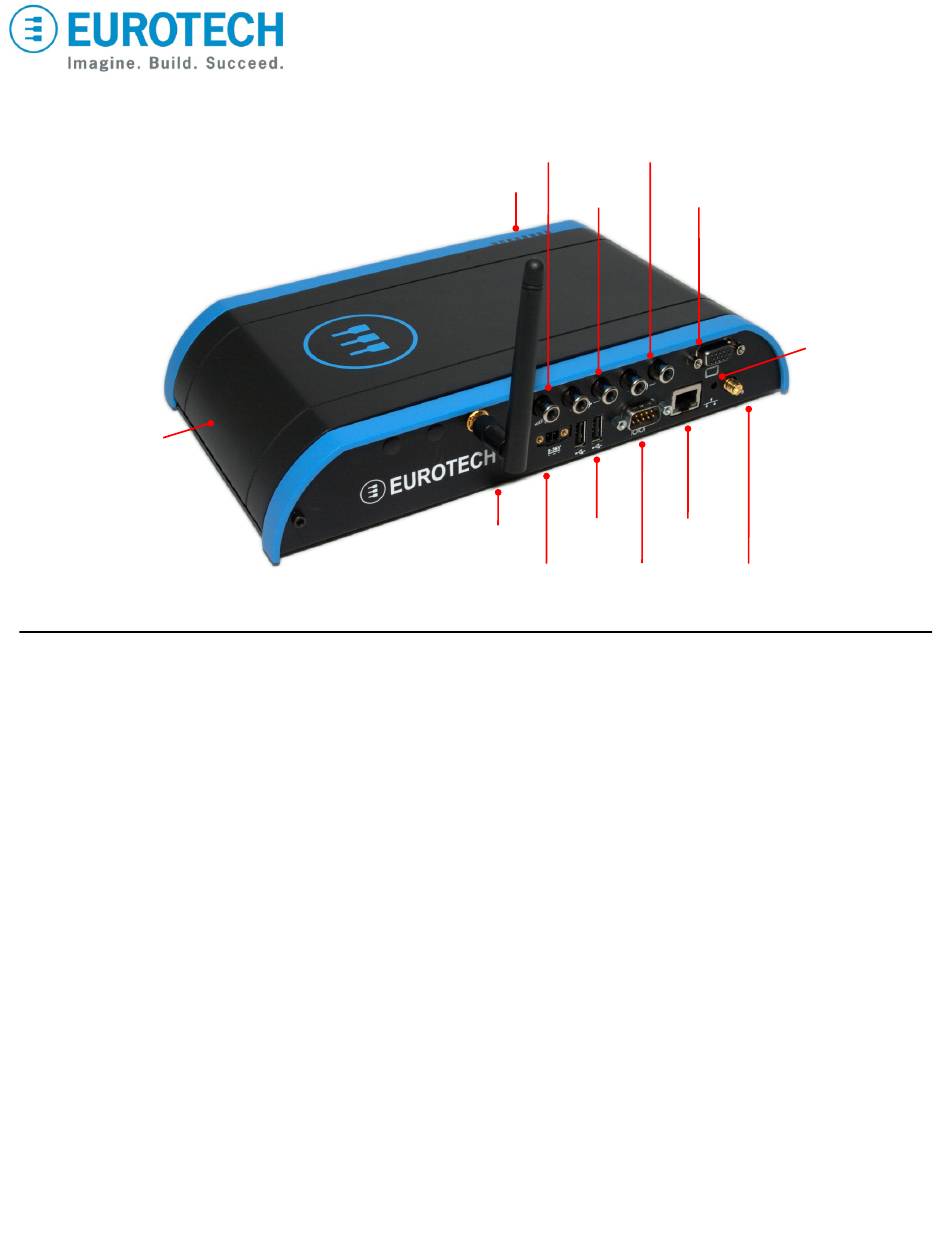

Microphone
Input
LEDs
(left & right)
1
8
(Optional)
USB Device Antenna
DC Power
Input
Operating System Details
Windows
• Several seconds after power is applied, the Windows
Embedded Standard operating system boots and the
login screen appears on the VGA display.
• Press CTRL+ALT+DELETE for the login screen.
• Log in with user name "Administrator" and no
password.
• Shut down the system before disconnecting power.
To shut down, click Start→Shut Down, then select
Shut Down from the OS menu.
™
Helios Development Kit
Line Out
(left & right)
Line In VGA
Output
USB
Ethernet
Ports (2)
Serial Port GPS Antenna
(EIA-232) Jack
Embedded Standard
®
Quick Start
CPDK7510
Switch
