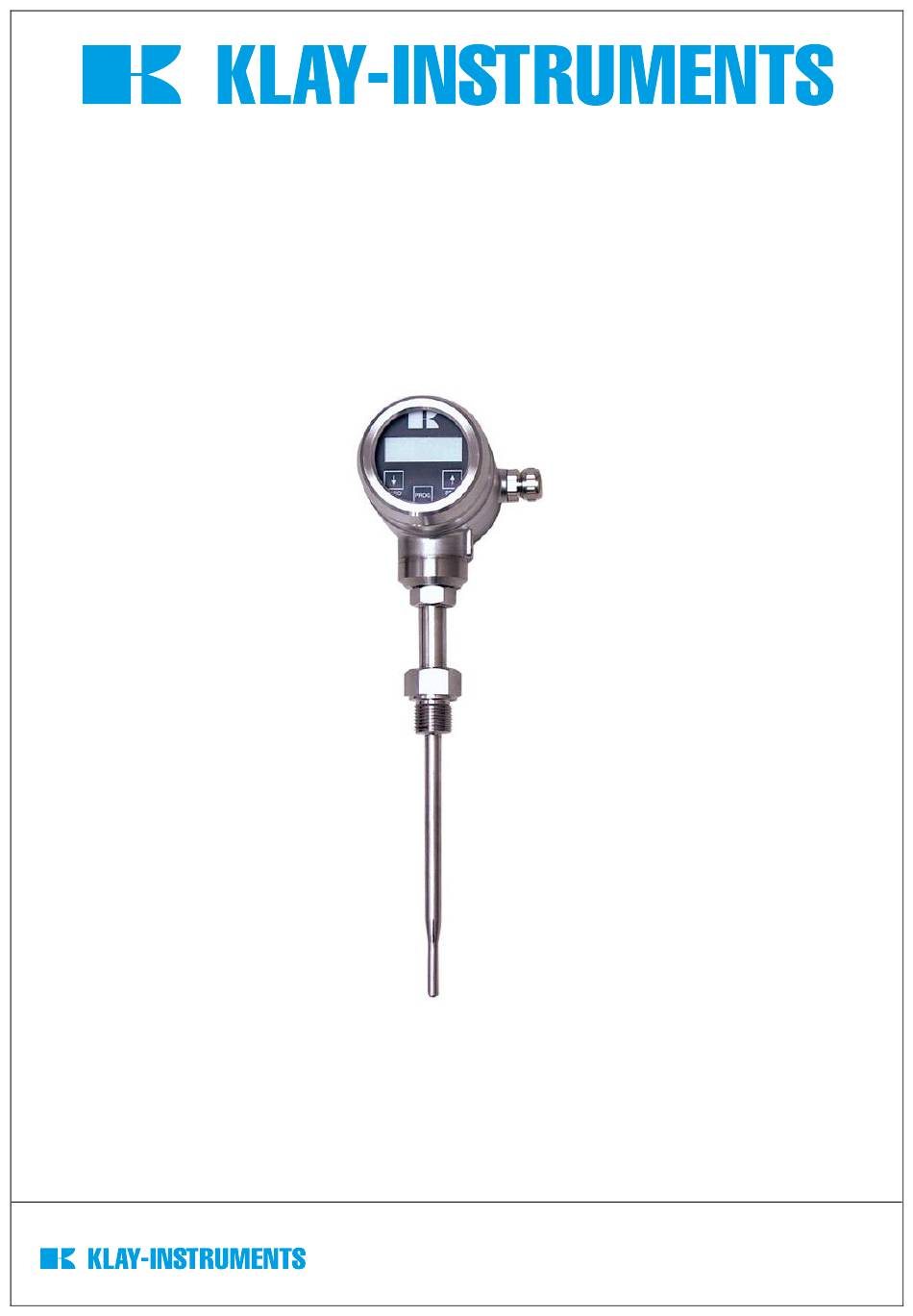

- Page 1 INSTRUCTION MANUAL SERIES TT-2000 "INTELLIGENT" Pt-100 TEMPERATURE TRANSMITTER Nijverheidsweg 5 7991 CZ DWINGELOO Manufactured by: P.O. Box 13 7990 AA DWINGELOO Tel: +31 521-591550 The Netherlands www.klay.nl Fax: +31 521-592046 E-Mail: info@klay.nl...
-
Page 2: Table Of Contents
Manual Serie TT-2000 Klay Instruments B.V. CONTENTS SECTION PAGE Introduction Description Series TT-2000 Dimensions Installation transmitter Welding instruction Mounting position Calibration Wiring Remaining Digital local indicator CE / EMC - Rules External load Traceability year of manufacturing Software revision Functions of pushbuttons Programming points (P101 t/m P110) Reading on display Explanation of programming points... -
Page 3: Introduction
Manual Serie TT-2000 Klay Instruments B.V. INLEIDING The Series TT-2000 is a complete Stainless Steel temperature transmitter, based on a Pt-100 element (1/3 DIN class B). The range of standard elements can be set between -50 and 200 °C. Other ranges are available on request. -
Page 4: Mounting Position
Manual Serie TT-2000 Klay Instruments B.V. Position the weld-on nipple in the vessel hole and tack six places. The weld sequence is shown in the figure above. Weld the weld-on nipple in place using 0,03 to 0,045 in. (0,762 to 1,143 mm) stainless rod as filler material in the beveled area. Adjust amperage for penetration pliers (1/8"). -
Page 5: Ce / Emc Rules
Manual Serie TT-2000 Klay Instruments B.V. CE / EMC Rules All transmitters are fitted with RFI filters, which provide optimum, trouble-free operation. Our products are in conformity with EMC-Directive 2014/30/EU based on test results using harmonized standards. EXTERNE RESISTOR The minimum power supply is based on the total circuit 1400 resistance. -
Page 6: Traceability Year Of Manufacturing
Manual Serie TT-2000 Klay Instruments B.V. TRACEBILITY YEAR OF MANUFACTURING The year of manufacturing of the transmitter can be traced as follows: take the first two numbers from the serial number that is engraved in the transmitter and add 1970 to it. For example: if the 3902123. -
Page 7: Programming Points (P101 T/M P110)
Manual Serie TT-2000 Klay Instruments B.V. PROGRAMMING POINTS (P101 – P110) The following points can be adjusted by means Programming points: of the three push buttons. For an explanation P101 Zero adjustment (4 mA) of these points see the next pages of this P102 Span adjustment (20 mA) manual. -
Page 8: P101 Zero Adjustments (4 Ma)
Manual Serie TT-2000 Klay Instruments B.V. SPAN ADJUSTMENT (20 mA) WITHOUT TEST TEMPERATURE P102 Before adjusting the span take care the right temperature unit is selected. (See also P104 and P108). Example: Range 0 - 100 °C Push [PROG] till "100" is shown on the display. Push twice at [] / SPAN until "102"... -
Page 9: P107 Free Adjustment (5 Points)
Manual Serie TT-2000 Klay Instruments B.V. CONFIGURATION P108 Push on [PROG] and go to P108. Push 8 times at []/[SPAN] go to [P108]. Push at [PROG] to confirm this. Adjust the configuration and push at [PROG] to confirm this. READ OUT ON DISPLAY P109 0 = Current (4 - 20 mA) -
Page 10: Precautions And Warnings
Manual Serie TT-2000 Klay Instruments B.V. PRECAUTIONS and WARNINGS Check if the specifications of the transmitter meet the needs of the process conditions Never weld the entire weldon nipple in one session. Once the wiring has been inserted and connected, make sure that the PG9 cable gland is hermetically sealed (screwed) so that no moisture can penetrate the cable gland into the electronic housing.
