B Technical Data

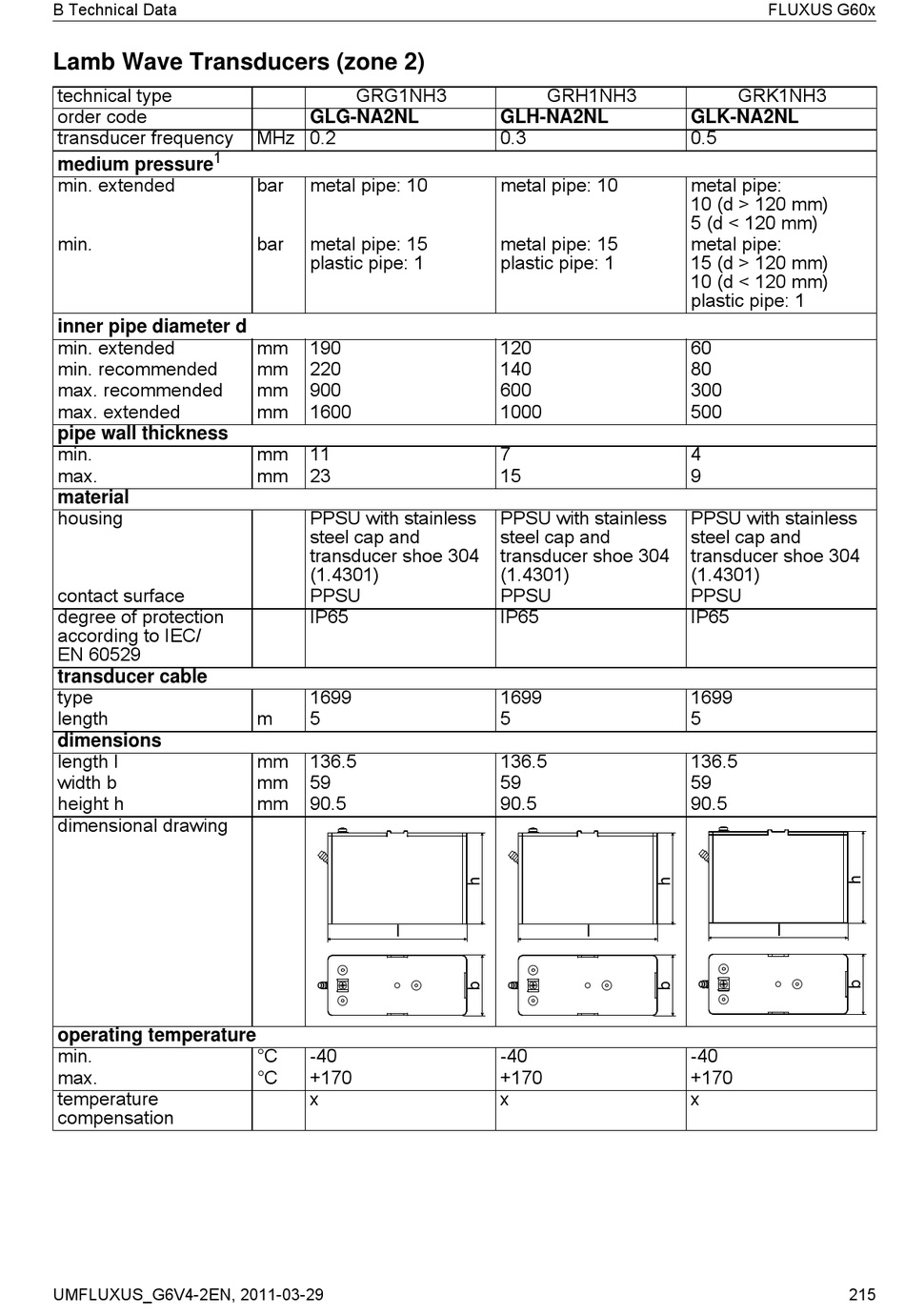

Lamb Wave Transducers (zone 2)
technical type
order code
transducer frequency
1
medium pressure
min. extended
min.
inner pipe diameter d
min. extended
min. recommended
max. recommended
max. extended
pipe wall thickness
min.
max.
material
housing
contact surface
degree of protection
according to IEC/
EN 60529
transducer cable
type
length
dimensions
length l
width b
height h
dimensional drawing
operating temperature
min.
max.
temperature
compensation

UMFLUXUS_G6V4-2EN, 2011-03-29
GRG1NH3
GLG-NA2NL
MHz 0.2
bar metal pipe: 10
bar metal pipe: 15
plastic pipe: 1
mm 190
mm 220
mm 900
mm 1600
mm 11
mm 23
PPSU with stainless
steel cap and
transducer shoe 304
(1.4301)
PPSU
IP65
1699
m 5
mm 136.5
mm 59
mm 90.5
l
°C -40
°C +170
x
GRH1NH3
GLH-NA2NL
0.3
metal pipe: 10
metal pipe: 15
plastic pipe: 1
120
140
600
1000
7
15
PPSU with stainless
steel cap and
transducer shoe 304
(1.4301)
PPSU
IP65
1699
5
136.5
59
90.5
l
-40
+170
x
FLUXUS G60x
GRK1NH3
GLK-NA2NL
0.5
metal pipe:
10 (d > 120 mm)
5 (d < 120 mm)
metal pipe:
15 (d > 120 mm)
10 (d < 120 mm)
plastic pipe: 1
60
80
300
500
4
9
PPSU with stainless
steel cap and
transducer shoe 304
(1.4301)
PPSU
IP65
1699
5
136.5
59
90.5
l
-40
+170
x
