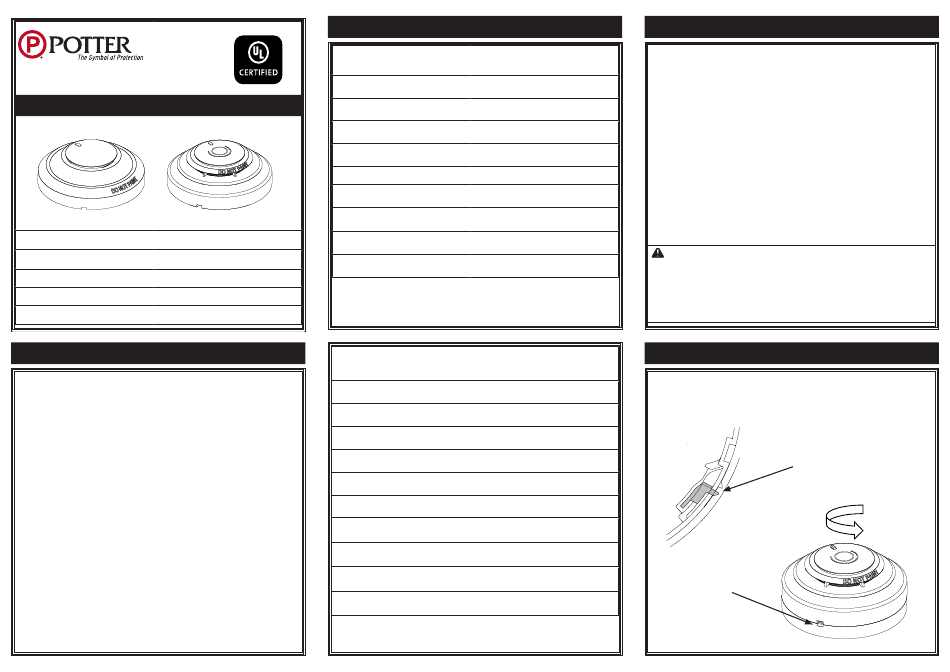

Potter PAD300-CD Quick Start Manual

1609 Park 370 Pl, Hazelwood, MO 63042
www.pottersignal.com
PAD300-CD PAD300-PCD
Contents
A. Introduction E. Addressing
B. Specifications F. Testing
C. Installation G. Cleaning
D. Locking Feature H. Warranty
A. Introduction

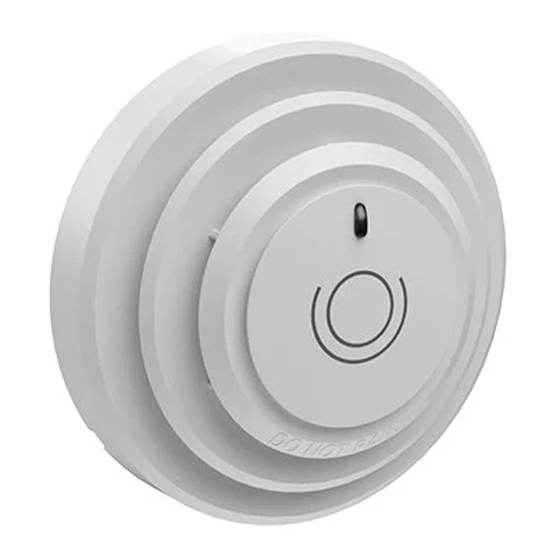

The PAD300-CD is an intelligent addressable CO (Carbon
Monoxide) detector and PAD300-PCD is an intelligent addressable
detector with a photoelectric smoke sensor and a CO sensor. The
photo and CO sensors on the PAD300-PCD work independently and
generate a separate signal to the panel. The CO sensor utilized in both
models has a 10-year lifespan.
Each detector includes one (1) LED to indicate the device status.
The LED flashes momentarily in normal conditions and flashes
at a fast rate when activated. The LED can be turned off using the
programming software.
The PAD300-PCD has a maximum spacing limitation of 30ft. Place
the detector as close to the center of the ceiling as possible. It may be
wall mounted within 12 inches from the ceiling. To minimize false
alarms, avoid placing in areas where excessive dust, humidity, air
movement, or extreme temperature is present. Refer to NFPA 72 for
more details regarding spacing, placement and special applications.
The PAD300-CD and PAD300-PCD communicate on a proprietary
protocol to the addressable fire alarm control panel. Each detector
must be connected to either the IPA series, AFC series, or ARC fire
alarm control panel for proper operation. For detector sensitivity
settings and supervision, please refer to the panel installation
instructions.
Refer to the company website for the latest revision of this manual.
B. Specifications
Operating Voltage
Standby Current (*)
Alarm Indicator Current
CO Alarm Rating 70 ppm, 150 ppm, 400 ppm
Installation Temp Range
Operating Humidity Range 0% - 93% (Non-condensing)
Dimension
Weight
Height
*Standby current is the current the device consumes when the device
is in a non-activated condition and where no communication current
is transmitted to the fire alarm control panel.
PAD300-PCD
Operating Voltage
Standby Current (*)
Alarm Indicator Current
CO Alarm Rating
70 ppm, 150 ppm, 400 ppm
Smoke Sensitivity
Installation Temp Range
Operating Humidity Range 0% - 93% (Non-condensing)
Dimension
Weight
Height
C. Installation
Installation must meet the requirements of the Authority Having Ju-
PAD300-CD
risdiction (AHJ). It is recommended to follow guidelines as described
in NFPA 72.
24 VDC
1. Before connecting a device to the SLC loop, take the following
precautions to prevent potential damage to the SLC or device.
300 μA
•
1.4 mA
•
32oF to 100oF
•
2. Set the desired address using the DIP switch located on back of
the sensor. See section E for addressing instructions.
Φ 3.93 in
3. Plug detector into base and turn clockwise to secure in place.
2.68 oz
CAUTION
CONSTRUCTION. REMOVE DUST COVER TO ALLOW THE
1.22 in
DETECTOR TO DETECT SMOKE AND CO.
DETECTORS ARE NOT TO BE USED WITH DETECTOR GUARDS
UNLESS THE COMBINATION HAS BEEN EVALUATED AND
FOUND SUITABLE FOR THAT PURPOSE.
D. Locking Feature
The device includes a tamperproof feature that locks the detec-
24 VDC
tor and does not allow removal without the use of a tool.
300 μA
1.4 mA
1.1 to 3.5%/ft
32oF to 120oF
Φ 3.93 in
Insert a small
screwdriver into slot
3.25 oz
to remove detector.
1.42 in
Use only the PAD300 series bases PAD300-4DB, PAD300-
6DB, PAD300-SB, PAD300-LFSB, PAD300-RB, and
PAD300-IB (supplied separately).
Confirm the field wiring to device is correctly installed on
the base. Refer to the base manual.
Enable the locking feature if needed. Refer to section D for
details of the locking feature.
KEEP DUST COVER ON DETECTOR DURING
Break off tab (gray area in
image). The locking feature
is enabled
