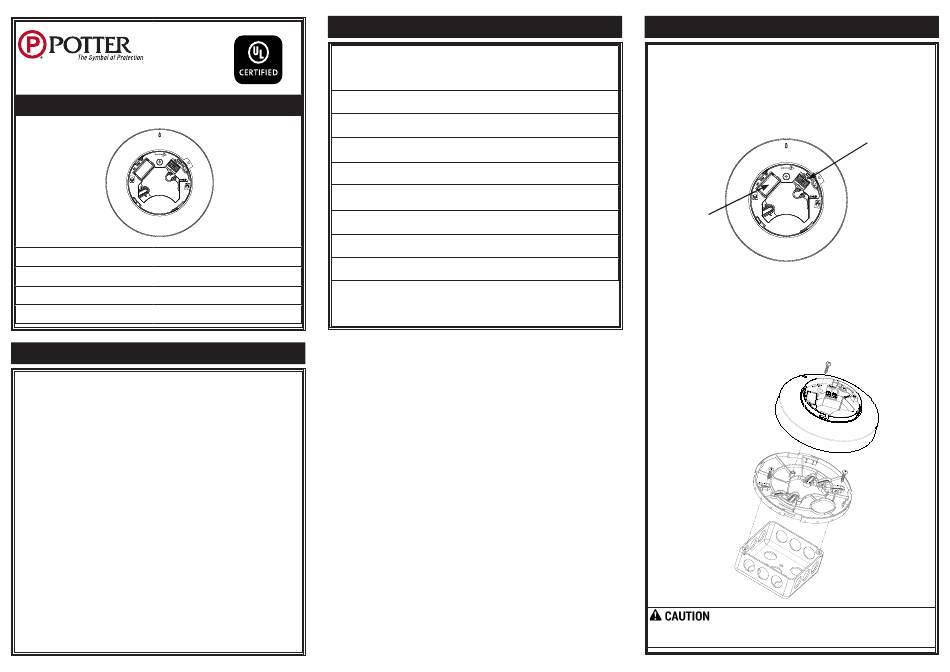

Potter PAD300-RB Mounting Instruction

1609 Park 370 Pl, Hazelwood, MO 63042
www.pottersignal.com
PAD300-RB
Contents
A. Introduction D. Wiring
B. Specifications E. Locking Feature
C. Mounting F. Warranty
A. Introduction

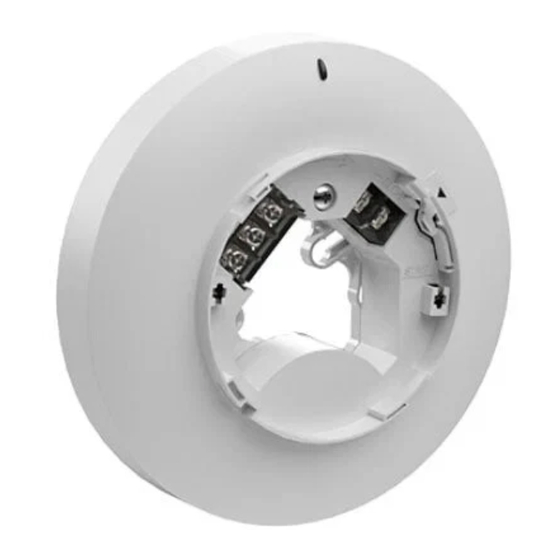

The PAD300-RB is an addressable relay base. It is
compatible with Potter's addressable fire alarm control
panels.
The PAD300-RB is a mounting base designed to work
specially with the PAD300 series detectors. Compatible
detectors include PAD300-PD, PAD300-HD,PAD300-
PHD.
The PAD300-RB does not consume extra address on
the loop but is assigned a sub-address from the attached
detector. It does not require an auxiliary power source.
Each base includes one (1) LED which flashes
momentarily in normal and detector alarm conditions.
The LED can be turned off using the programming
software.
For further information, please refer to the control panel
installation instructions.
Refer to the company website for the lastest revision of
this manual.
B. Specifications
Specifications / Ratings for detector base only:
SLC Voltage
SLC Standby / Alarm Current (*)
Relay Rating
Installation Temp Range
Operating Humidity Range 0% - 93% (Non-condensing)
Dimension
Weight
Height
*Standby current is the current the device consumes when the device
is in a non-activated condition and where no communication current
is transmitted to the fire alarm control panel.
C. Mounting
Mounting Options:
PAD300-RB can be mounted on a single gang, 3-1/2" octagon, 3-1/2"
PAD300-RB
square, double gang, 4" octagon, 4" square, 50mm c/c, 60mm c/c and
24 VDC
70mm c/c boxes.
Terminal Layout:
200 μA
2A @ 30 VDC
0.5A @ 125 VAC
32oF to 150oF
Relay Contacts:
Φ 6.4 in
NC/COM/NO
7.05 oz
1.57 in
Mounting Instructions:
1. Loosen screws on junction box or leave screws in place.
2. Align keyholes on the mounting plate with screw heads.
3. Slide screws to the slot on the mounting plate.
4. Tighten screws to secure mounting plate.
5. Plug base and turn clockwise to secure in place.Tighten screws
to secure base on mounting plate.
Mounting plate
DETECTOR GUARDS UNLESS THE COMBINATION HAS BEEN
EVALUATED AND FOUND SUITABLE FOR THAT PURPOSE.
SLC+/SLC-
Screw
DETECTORS ARE NOT TO BE USED WITH
