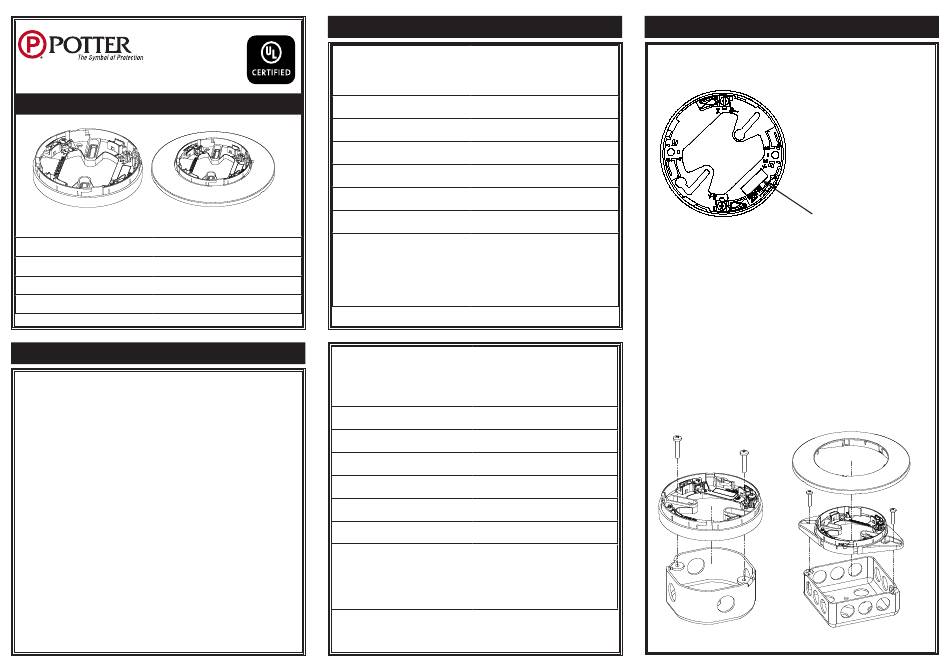

Potter PAD300-4DB Quick Start Manual

1609 Park 370 Pl, Hazelwood, MO 63042
www.pottersignal.com
PAD300-4DB PAD300-6DB
Contents

A. Introduction

D. Wiring

B. Specifications

E. Locking Feature

C. Mounting

F. Warranty
A. Introduction

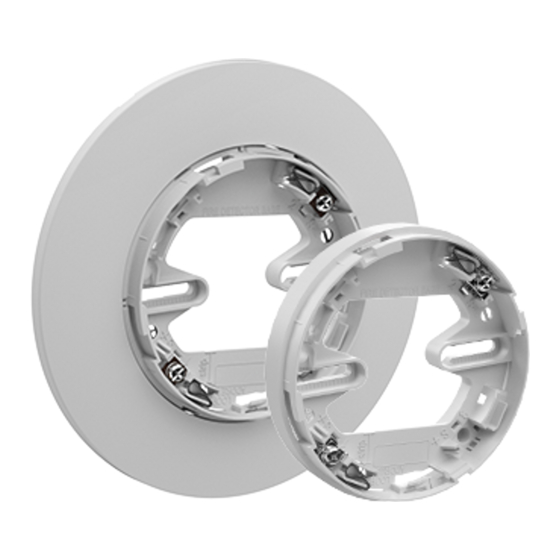

The PAD300-4DB and the PAD300-6DB are mounting bases
designed to work specially with the PAD300 series detectors.
Compatible detectors include PAD300-PD, PAD300-
HD,PAD300-PHD and PAD300-DD.
The PAD300-4DB has a four (4) inches diameter and the
PAD300-6DB has a six (6) inches diameter. Both products
provide multiple mounting options to accommodate different
UL listed junction boxes.
The PAD300-4DB and the PAD300-6DB have a locking feature
to allow tamper-proofing to prevent unwanted removal.
Refer to the company website for the latest revision of this
manual.
B. Specifications
PAD300-4DB
Installation Temp Range
Operating Humidity Range 0% - 93% (Non-condensing)
Dimension
Weight
Height
Acceptable Wire Gauge
3-1/2" octagon, 4" square with
Mounting Options plaster ring, 50mm c/c, 60mm
c/c and 70mm c/c boxes
PAD300-6DB
Installation Temp Range
Operating Humidity Range 0% - 93% (Non-condensing)
Dimension
Weight
Height
Acceptable Wire Gauge
3-1/2" octagon, 3-1/2" square,
double gang, 4" octagon, 4"
Mounting Options
square, 50mm c/c, 60mm c/c
and 70mm c/c boxes
C. Mounting
Terminal Layout:
32ºF to 150ºF
Φ3.93 in
1.34 oz
0.76 in
22 to 12 AWG
Mounting Instructions:
1. Loosen screws, but not all the way out, from junction box.
2. Align keyholes on the base with screw heads.
3. Slide screw to the slot on the mounting plate.
4. Tighten screw to secure base.
5. Snap trim ring on the base (PAD300-6DB).
PAD300-4DB
32oF to 150oF
Φ 6.3 in
3.03 oz
0.76 in
22 to 12 AWG
S1: SLC+
S2: SLC-
S2
S1
Record loop address on
label.
PAD300-6DB
