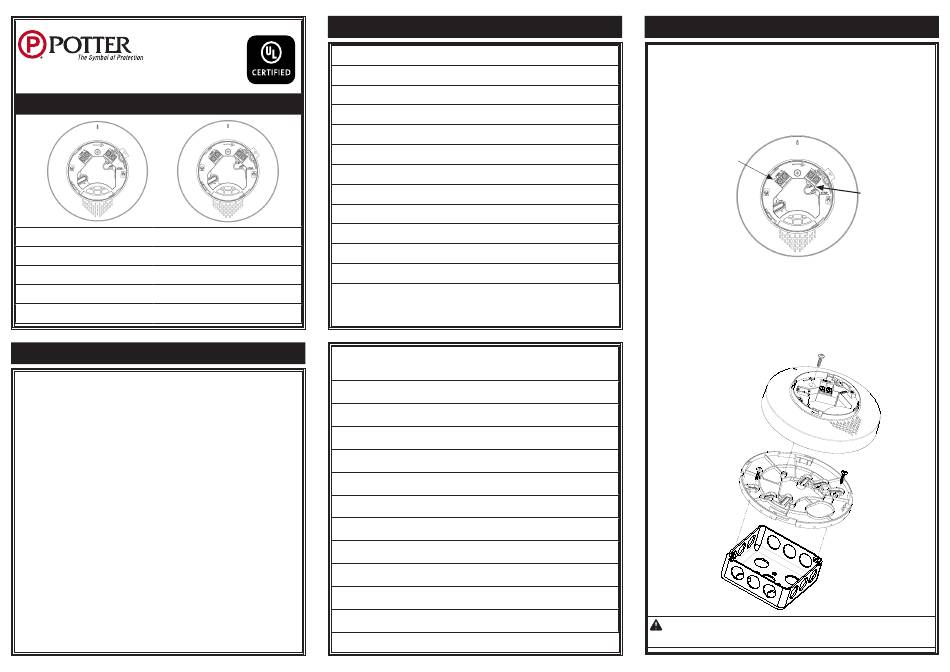

Potter PAD300-SB Quick Start Manual

1609 Park 370 Pl, Hazelwood, MO 63042
www.pottersignal.com
PAD300-SB PAD300-LFSB
Contents

A. Introduction

E. Locking Feature

B. Specifications

F. Testing

C. Mounting

G. Warranty
D. Wiring
A. Introduction
The PAD300-SB is an addressable sounder base. The PAD300-
LFSB is an addressable low frequency (520Hz) sounder base.
The PAD300-SB and PAD300-LFSB do not consume extra
addresses on the loop but are assigned a sub-address from the
attached detector. They are independent devices that may be
programmed as a single station, zone or all call sounders.
The PAD300-SB and PAD300-LFSB can be programmed to
produce a variety of sound patterns required by different
commercial and residential applications. The available patterns
include Constant, ANSI Temp 3, March Code, Double Time,
and ANSI Temp 4. Once activated, the sounder will follow the
input from the power source to reproduce the programmed
pattern and deactivate accordingly.
Each base includes one (1) LED which flashes momentarily in
normal and detector alarm conditions. The LED can be turned
off using the programming software.
Synchronization requires power connection from a compatible
panel.For further information, refer to the control panel
installation instructions.
Refer to the company website for the latest revision of this
manual.
B. Specifications
SLC Voltage
SLC Standby Current (*)
PWR Voltage
Standby Current for PWR
PWR Active Current
Sound Pressure Level
Installation Temp Range
Operating Humidity Range
0% - 93% (Non-condensing)
Dimension
Weight
Height
*Standby current is the current the device consumes when the device
is in a non-activated condition and where no communication current
is transmitted to the fire alarm control panel.
PAD300-LFSB
SLC Voltage
SLC Standby Current (*)
PWR Voltage
Standby Current for PWR
PWR Active Current
Sound Pressure Level
Installation Temp Range
Operating Humidity Range 0% - 93% (Non-condensing)
Dimension
Weight
Height
C. Mounting
PAD300-SB Mounting Options:
24 VDC PAD300-SB and PAD300-LFSB can be mounted on a single gang,
3-1/2" octagon, double gang, 4" octagon, 4" square, 50mm c/c, 60mm
200 μA
c/c and 70mm c/c boxes.
16 – 33 VDC
Terminal Layout:
5.5 mA
42 mA
24VDC+/24VDC-
>85 dB/10 ft
32ºF to 150oF
Φ 6.4in
7.40 oz
Mounting Instructions:
1.57 in
1. Loosen screws on junction box or leave screws in place.
2. Align keyholes on the mounting plate with screw heads.
3. Slide screws to the slot on the mounting plate.
4. Tighten screws to secure mounting plate.
5. Plug base and turn clockwise to secure in place.Tighten screws
to secure base on mounting plate.
24 VDC
200 μA
16 – 33 VDC
6.0 mA
Mounting plate
155 mA
>85 dB/10 ft
32oF to 150oF
Φ 6.4 in
8.47 oz
1.57 in
CAUTION
APPLIED FINISHES ON ANY PART OF THIS PRODUCT.
SLC+/SLC-
Screw
DO NOT PAINT NOR CHANGE FACTORY
