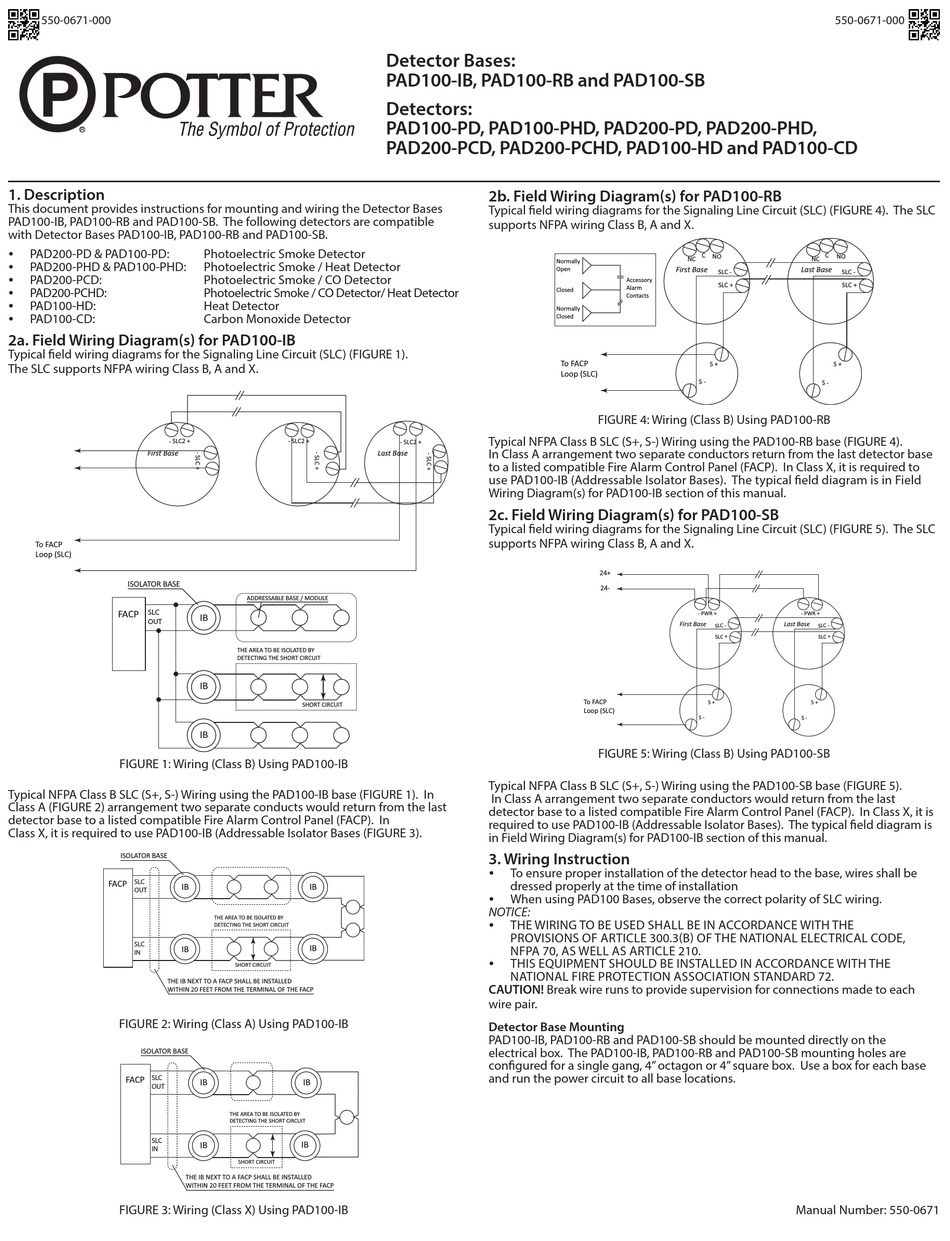

Potter PAD100-IB Quick Start Manual

550-0671-000
1. Description

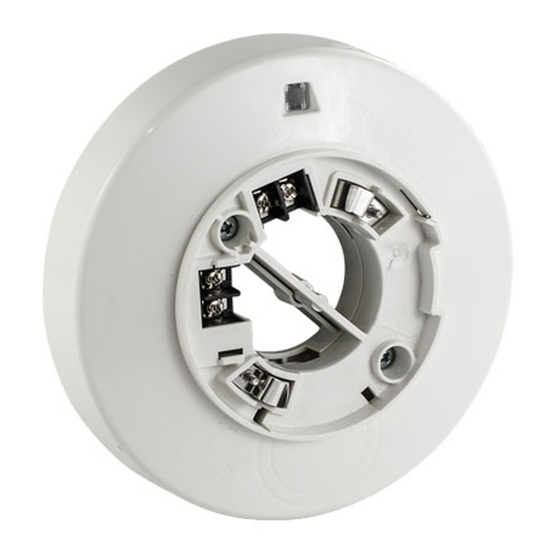

This document provides instructions for mounting and wiring the Detector Bases
PAD100-IB, PAD100-RB and PAD100-SB. The following detectors are compatible
with Detector Bases PAD100-IB, PAD100-RB and PAD100-SB.
 PAD200-PD & PAD100-PD:
 PAD200-PHD & PAD100-PHD:
 PAD200-PCD:
 PAD200-PCHD:
PAD100-HD:

PAD100-CD:

2a. Field Wiring Diagram(s) for PAD100-IB
Typical field wiring diagrams for the Signaling Line Circuit (SLC) (FIGURE 1).
The SLC supports NFPA wiring Class B, A and X.
First Base
To FACP
Loop (SLC)
ISOLATOR BASE
FACP SLC
OUT
FIGURE 1: Wiring (Class B) Using PAD100-IB
Typical NFPA Class B SLC (S+, S-) Wiring using the PAD100-IB base (FIGURE 1). In
Class A (FIGURE 2) arrangement two separate conducts would return from the last
detector base to a listed compatible Fire Alarm Control Panel (FACP). In
Class X, it is required to use PAD100-IB (Addressable Isolator Bases (FIGURE 3).
ISOLATOR BASE
FACP SLC
IB
OUT
SLC
IB
IN
THE IB NEXT TO A FACP SHALL BE INSTALLED
WITHIN 20 FEET FROM THE TERMINAL OF THE FACP
FIGURE 2: Wiring (Class A) Using PAD100-IB
ISOLATOR BASE
FACP SLC
OUT
SLC
IN
THE IB NEXT TO A FACP SHALL BE INSTALLED
WITHIN 20 FEET FROM THE TERMINAL OF THE FACP
FIGURE 3: Wiring (Class X) Using PAD100-IB
Photoelectric Smoke Detector
Photoelectric Smoke / Heat Detector
Photoelectric Smoke / CO Detector
Photoelectric Smoke / CO Detector/ Heat Detector
Heat Detector
Carbon Monoxide Detector
Last Base
ADDRESSABLE BASE / MODULE
IB
THE AREA TO BE ISOLATED BY
DETECTING THE SHORT CIRCUIT
IB
SHORT CIRCUIT
IB
IB
THE AREA TO BE ISOLATED BY
DETECTING THE SHORT CIRCUIT
IB
SHORT CIRCUIT
IB IB
THE AREA TO BE ISOLATED BY
DETECTING THE SHORT CIRCUIT
IB
IB
SHORT CIRCUIT
Detector Bases:
PAD100-IB, PAD100-RB and PAD100-SB
Detectors:
PAD100-PD, PAD100-PHD, PAD200-PD, PAD200-PHD,
PAD200-PCD, PAD200-PCHD, PAD100-HD and PAD100-CD
2b. Field Wiring Diagram(s) for PAD100-RB
Typical field wiring diagrams for the Signaling Line Circuit (SLC) (FIGURE 4). The SLC
supports NFPA wiring Class B, A and X.
Normally
Open
Closed
Normally
Closed
To FACP
Loop (SLC)
Typical NFPA Class B SLC (S+, S-) Wiring using the PAD100-RB base (FIGURE 4).
In Class A arrangement two separate conductors return from the last detector base
to a listed compatible Fire Alarm Control Panel (FACP). In Class X, it is required to
use PAD100-IB (Addressable Isolator Bases). The typical field diagram is in Field
Wiring Diagram(s) for PAD100-IB section of this manual.
2c. Field Wiring Diagram(s) for PAD100-SB
Typical field wiring diagrams for the Signaling Line Circuit (SLC) (FIGURE 5). The SLC
supports NFPA wiring Class B, A and X.
Typical NFPA Class B SLC (S+, S-) Wiring using the PAD100-SB base (FIGURE 5).
In Class A arrangement two separate conductors would return from the last
detector base to a listed compatible Fire Alarm Control Panel (FACP). In Class X, it is
required to use PAD100-IB (Addressable Isolator Bases). The typical field diagram is
in Field Wiring Diagram(s) for PAD100-IB section of this manual.
3. Wiring Instruction
 To ensure proper installation of the detector head to the base, wires shall be
dressed properly at the time of installation
 When using PAD100 Bases, observe the correct polarity of SLC wiring.
NOTICE:
 THE WIRING TO BE USED SHALL BE IN ACCORDANCE WITH THE
PROVISIONS OF ARTICLE 300.3(B) OF THE NATIONAL ELECTRICAL CODE,
NFPA 70, AS WELL AS ARTICLE 210.
THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE

NATIONAL FIRE PROTECTION ASSOCIATION STANDARD 72.
CAUTION! Break wire runs to provide supervision for connections made to each
wire pair.
Detector Base Mounting
PAD100-IB, PAD100-RB and PAD100-SB should be mounted directly on the
electrical box. The PAD100-IB, PAD100-RB and PAD100-SB mounting holes are
configured for a single gang, 4" octagon or 4" square box. Use a box for each base
and run the power circuit to all base locations.
First Base
Accessory
Alarm
Contacts
FIGURE 4: Wiring (Class B) Using PAD100-RB
24+
24-
First Base
To FACP
Loop (SLC)
FIGURE 5: Wiring (Class B) Using PAD100-SB
550-0671-000
Last Base
Last Base
Manual Number: 550-0671
