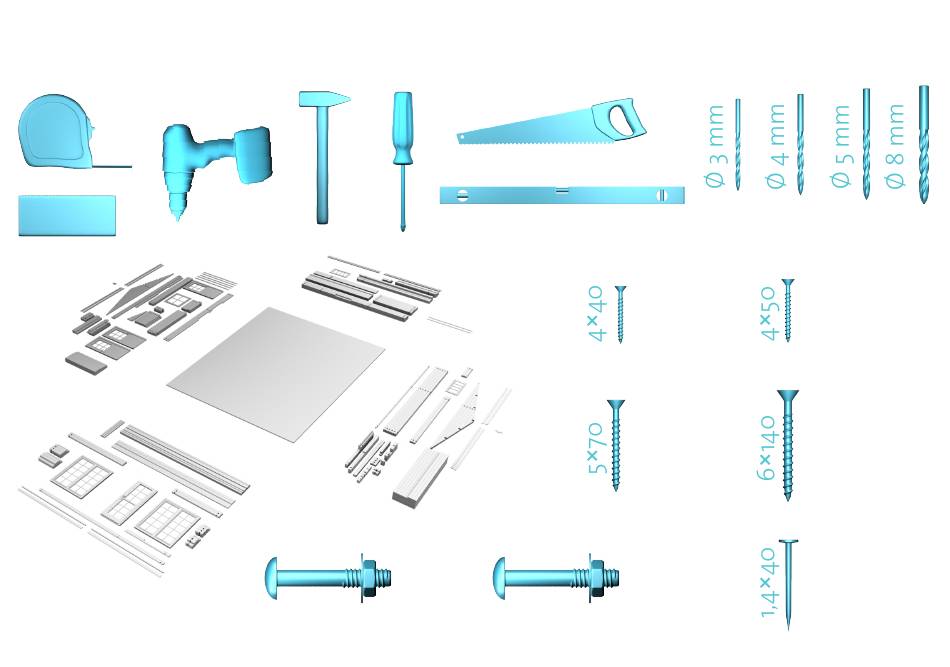

- Page 1 AIDA 40 PREPARE THE GROUND, UNWRAP THE All manuals and user guides at all-guides.com PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 120 × 1650 × 40 × 140 M8×90 M8×70 × 3 × 18 × 150 1/29...
- Page 2 AIDA 40 LAY OUT THE FOUNDATION BEAMS All manuals and user guides at all-guides.com AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB5 IFB6 IFB2 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. IFB1 CHECKING ALL DIRECTIONS,...
- Page 3 AIDA 40 ATTACH FOUNDATION BEAMS All manuals and user guides at all-guides.com WITH SCREWS. × 42 3/29...
- Page 4 AIDA 40 LAY OUT THE BOTTOM LOGS, All manuals and user guides at all-guides.com ATTACH TO THE FOUNDATION. 2 BL-1 1 BL-3 1 BL-2 3 BL-2 3 BL-3 1 BL-1 3 BL-4 THE WALL LOGS WILL HANG OVER 4 BL-2...
- Page 5 AIDA 40 LAY OUT THE LOGS, All manuals and user guides at all-guides.com ATTACH TO THE FOUNDATION. × 14 × 21 A LG-1 5×70 H-PROFILE 6×140 B LG-1 D LG-1 C LG-7 C LG-6 5/29 E LG-3...
- Page 6 AIDA 40 ATTACH THE FIRST ROW OF All manuals and user guides at all-guides.com WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 12 × 16 2 LG-3 1 LG-12 1 LG-7 3 LG-3 6×140 3 LG-5 5×70 1 LG-1...
- Page 7 AIDA 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP All manuals and user guides at all-guides.com EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 4 LG-7 E LG-1 E LG-2...
- Page 8 AIDA 40 UNDER THREE INDICATED DOORS All manuals and user guides at all-guides.com INSTALL THE DOOR BEAMS, SLIDE THE DOORS IN, ATTACH THE HANDLES. ×6 CD1R CD3R LOGS IN PLACE 8/29...
- Page 9 AIDA 40 DON`T FORGET TO All manuals and user guides at all-guides.com TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. C LG-4 C LG-3 C LG-2 1 LG-6 C LG-1 D LG-2 4 LG-8 E LG-4 9/29...
- Page 10 AIDA 40 ATTACH THE HANDRAILS All manuals and user guides at all-guides.com WITH SCREWS. ×22 10/29...
- Page 11 AIDA 40 SLIDE THE WINDOWS IN, All manuals and user guides at all-guides.com ATTACH THE HANDLES. CDW4 11/29...
- Page 12 AIDA 40 SLIDE THE WINDOW IN, All manuals and user guides at all-guides.com ATTACH THE HANDLE. 1 LG-9 CW8R 1 LG-3 12/29...
- Page 13 AIDA 40 SLIDE THE WINDOWS IN, All manuals and user guides at all-guides.com ATTACH THE HANDLES. CW5R A LG-3 A LG-2 4 LG-4 4 LG-10 13/29...
- Page 14 AIDA 40 INSTALL THE TOPLOGS. All manuals and user guides at all-guides.com × 4 A TL-2 1 LG-17 1 LG-13 A TL-1 C TL-2 3 LG-13 C LG-8 C TL-1 LOGS IN PLACE C LG-5 3 LG-12 14/29...
- Page 15 AIDA 40 INSTALL THE GABLES WITH LONG SCREWS All manuals and user guides at all-guides.com TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 9 GABLE B TL-1 15/29...
- Page 16 AIDA 40 INSTALL THE ROOF PURLINS AND All manuals and user guides at all-guides.com ATTACH THEM WITH SCREWS. × 15 RFB2 RFB1 16/29...
- Page 17 AIDA 40 PLACE THE FIRST ROOFBOARD FLUSH WITH THE All manuals and user guides at all-guides.com END OF THE PURLINS AND ATTACH WITH 8 SCREWS, 4 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 496 17/29...
- Page 18 AIDA 40 FOR THE FASCIA TRIMS INSERT All manuals and user guides at all-guides.com SCREWS AFTER EVERY 0,5 METERS. × 52 18/29...
- Page 19 AIDA 40 EAVES EDGES GO ON TOP All manuals and user guides at all-guides.com OF THE ROOFING*. *(NOT INCLUDED) × 40 19/29...
- Page 20 AIDA 40 ATTACH ROMBS WITH SCREWS. All manuals and user guides at all-guides.com ROMB × 4 20/29...
- Page 21 AIDA 40 SCREW THE FLOORBOARDS INTO All manuals and user guides at all-guides.com FOUNDATION, SAW THE LAST BOARD TO MAKE IT FIT. × 549 21/29...
- Page 22 AIDA 40 SAW THE BOARDS IF NEEDED, All manuals and user guides at all-guides.com SCREW THEM INTO FOUNDATION. × 99 22/29...
- Page 23 AIDA 40 LEAVE 3MM GAP BETWEEN THE BOARDS All manuals and user guides at all-guides.com SCREW THEM INTO FOUNDATION. SAW THE BOARDS IF NEEDED. × 418 23/29...
- Page 24 AIDA 40 SAW THE BASEBOARDS All manuals and user guides at all-guides.com AND ATTACH WITH NAILS EVERY 0,5 METERS. × 150 24/29...
- Page 25 AIDA 40 DRILL THROUGH THE WALL, HOLE All manuals and user guides at all-guides.com MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLTS. WINDBOARD1 × 18 25/29...
- Page 26 AIDA 40 DRILL THROUGH THE WALL, HOLE All manuals and user guides at all-guides.com MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLTS. WINDBOARD2 × 3 × 10 BOARD 18×90 ATTACH THE BOARD 18×90 26/29 INTO WINDBOARDS...
- Page 27 AIDA 40 IF DOOR IS TILTED, All manuals and user guides at all-guides.com PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 27/29...
- Page 28 AIDA 40 DOOR IS NOT ON THE RIGHT HEIGHT, All manuals and user guides at all-guides.com ADJUST 3 SCREWS ON DOOR HINGES. 28/29...
- Page 29 AIDA 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD All manuals and user guides at all-guides.com COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 29/29 100%...
