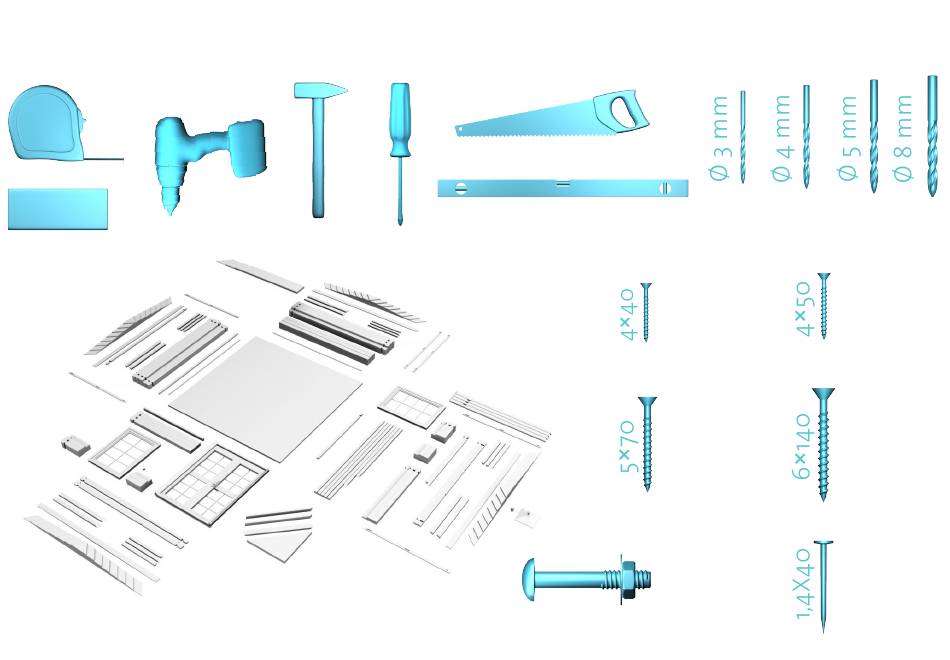

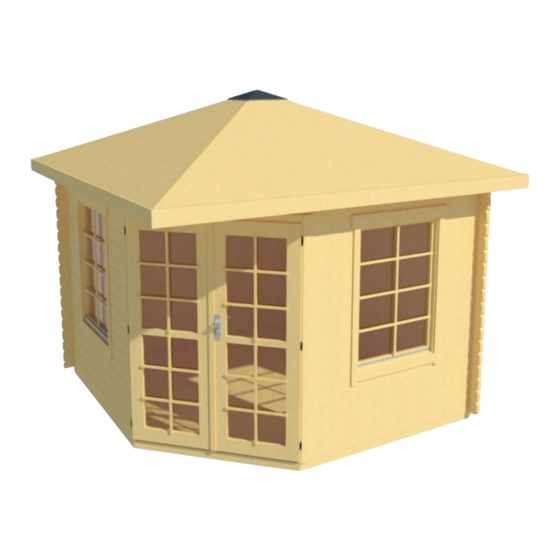

- Page 1 ARBOGA I 40 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 470 × 130 × 50 × 50 M8×70 × 15 × 30 1/24...
- Page 2 ARBOGA I 40 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB2 IFB1 IFB3 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. IFB4 CHECKING ALL DIRECTIONS, IFB5 2/24 INCLUDING CORNER...
- Page 3 ARBOGA I 40 ATTACH FOUNDATION BEAMS WITH SCREWS. × 2 × 8 5×70 6×140 3/24...
- Page 4 ARBOGA I 40 LAY OUT THE BOTTOM LOGS SO, THAT DOOR OPENING WILL BE 1441 MM WIDE 1441 mm 2 LG-1 A BL-1 B BL-1 1 LG-5 4/24...
- Page 5 ARBOGA I 40 ATTACH LOGS TO THE FOUNDATION. × 4 × 10 6×140 5×70 THE WALL LOGS WILL HANG OVER THE FOUNDATION BEAMS APPROXIMATELY 5MM. THIS OVERHANG 5/24 IS DESIGNED AS A RAIN DRIP.
- Page 6 ARBOGA I 40 ATTACH THE NEXT ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 3 × 4 A LG-1 6×140 5×70 B LG-3 6/24...
- Page 7 ARBOGA I 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 7/24...
- Page 8 ARBOGA I 40 SLIDE THE DOOR IN, ATTACH THE HANDLE. CDD4 LOGS IN PLACE 8/24...
- Page 9 ARBOGA I 40 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. HITBLOCK 1 LG-2 B LG-2 B LG-1 1 LG-6 1 LG-1 9/24...
- Page 10 ARBOGA I 40 SLIDE THE WINDOW IN, ATTACH THE HANDLE. CW2L CW2R 10/24...
- Page 11 ARBOGA I 40 2 LG-2 1 LG-4 B LG-5 1 LG-3 LOGS HALF LOG IN PLACE B LG-4 1 LG-7 11/24...
- Page 12 ARBOGA I 40 INSTALL CEILING TRIANGLE ATTACH WITH SCREWS INTO THE WALLS. 4×50 × 6 × 5 5×70 CEILING DETAIL 40×120 CEILING LEAVE 4CM CAP BETWEEN TRIANGLE DOOR AND CEILING DETAIL, ATTACH IT INTO WALLS AND INTO 12/24 CEILING TRIANGLE USING SCREWS...
- Page 13 ARBOGA I 40 ATTACH TOP LOGS INTO WALL LOGS WITH SCREWS. × 24 2 TL-1 2 TL-2 A TL-1 A TL-3 2 TL-3 A TL-2 B TL-2 A TL-4 B TL-1 1 TL-3 B TL-4 1 TL-1 B TL-3 1 TL-2...
- Page 14 ARBOGA I 40 CONNECT THE ROOF PURLINS (RFR) WITH BEFORE INSTALLING THEM ON TOP OF THE CORNERS. 14/24...
- Page 15 ARBOGA I 40 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 4 15/24...
- Page 16 ARBOGA I 40 INSTALL THE ROOF PURLINS (RFB) AND ATTACH THEM WITH SCREWS. × 8 × 8 5×70 6×140 RFB1 RFB2 16/24...
- Page 17 ARBOGA I 40 PLACE THE FIRST ROOFBOARD FLUSH WITH THE OF THE PURLINS AND ATTACH WITH SCREWS × 256 RB16 17/24...
- Page 18 ARBOGA I 40 INSTALL THE ROOF TOP AND ATTACH WITH SCREWS. ATTACH FASCIA TRIMS INTO ROOFPURLINS. × 32 ROOF TOP 18/24...
- Page 19 ARBOGA I 40 SCREW THE FLOORBOARDS INTO FOUNDATION, SAW THE LAST BOARD TO MAKE IT FIT. 19/24...
- Page 20 ARBOGA I 40 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 30 20/24...
- Page 21 ARBOGA I 40 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 20CM ATTACH WITH BOLT. × 15 WINDBOARD 21/24...
- Page 22 ARBOGA I 40 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 22/24...
- Page 23 ARBOGA I 40 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 23/24...
- Page 24 ARBOGA I 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 24/24 100%...
