Summary of Contents for Holz-Blech Brantevik II 40

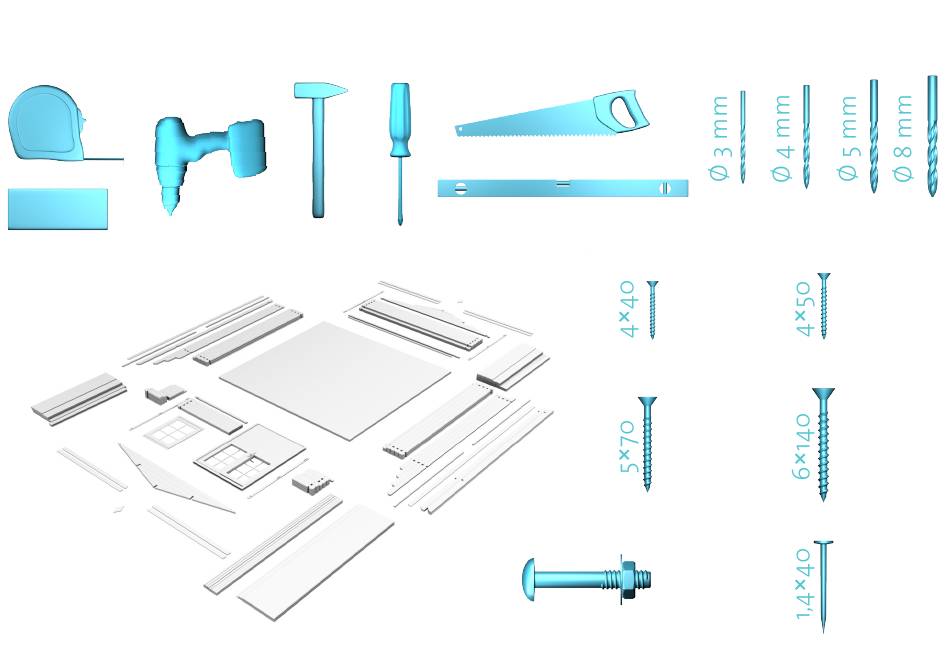

- Page 1 BRANTEVIK II 40 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 75 × 540 × 10 × 30 M8×70 × 12 × 30 1/20...
- Page 2 BRANTEVIK II 40 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/20 INCLUDING CORNER TO CORNER.
- Page 3 BRANTEVIK II 40 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 4 × 14 2 BL-1 5×70 A LG-1 6×140 B LG-1 THE WALL LOGS WILL HANG OVER THE FOUNDATION BEAMS 1 BL-2 APPROXIMATELY 5MM. THIS OVERHANG 1 BL-1 3/20 IS DESIGNED AS A RAIN DRIP.
- Page 4 BRANTEVIK II 40 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 4 6×140 2 LG-6 5×70 1 LG-6 1 LG-2 4/20...
- Page 5 BRANTEVIK II 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/20...
- Page 6 BRANTEVIK II 40 SLIDE THE DOOR IN, ATTACH THE HANDLE. CDD1R LOGS IN PLACE 6/20...
- Page 7 BRANTEVIK II 40 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. 1 LG-2 1 LG-2 1 LG-1 7/20...
- Page 8 BRANTEVIK II 40 SLIDE THE WINDOW IN, ATTACH THE HANDLE. CW1R 8/20...
- Page 9 BRANTEVIK II 40 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE B TL-1 B LG-4 A TL-1 B LG-3 B LG-2 A LG-4 A LG-3 LOGS IN PLACE A LG-2...
- Page 10 BRANTEVIK II 40 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 6 10/20...
- Page 11 BRANTEVIK II 40 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 288 11/20...
- Page 12 BRANTEVIK II 40 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 44 12/20...
- Page 13 BRANTEVIK II 40 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 32 13/20...
- Page 14 BRANTEVIK II 40 ATTACH ROMBS WITH SCREWS. ROMB × 4 14/20...
- Page 15 BRANTEVIK II 40 14 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 238 15/20...
- Page 16 BRANTEVIK II 40 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 30 16/20...
- Page 17 BRANTEVIK II 40 WINDBOARD CONNECTS BOTTOM LOG WITH THE TOP LOG. SAW THE WINDBOARD INTO THE RIGHT LENGTH. FOR THE TOP BOLT, DRILL 8MM HOLE THROUGH THE WINDBOARD. × 12 WINDBOARD DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 17/20 ATTACH WITH BOLTS.
- Page 18 BRANTEVIK II 40 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 18/20...
- Page 19 BRANTEVIK II 40 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 19/20...
- Page 20 BRANTEVIK II 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 20/20 100%...
