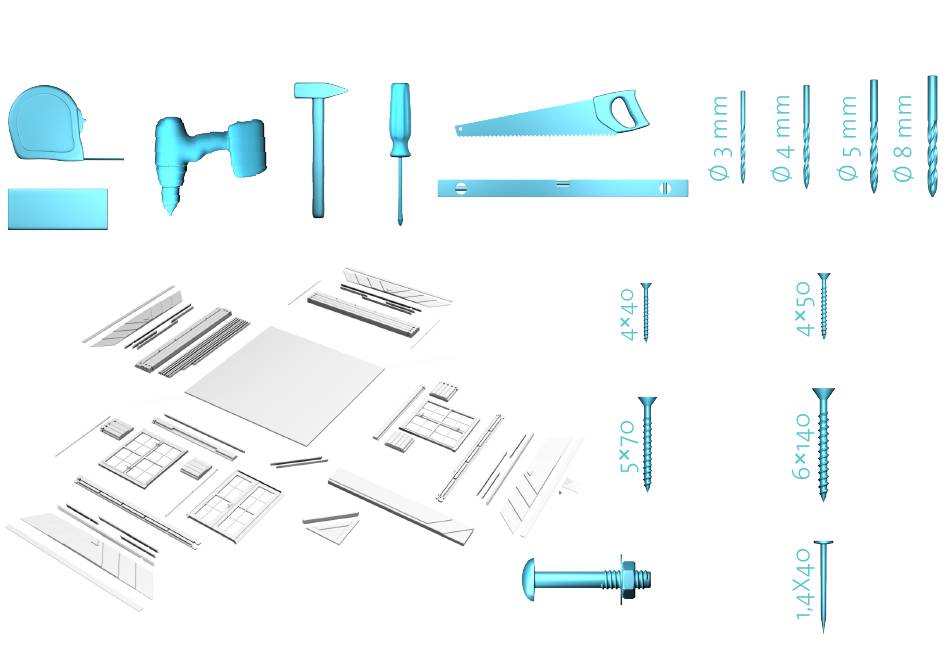

- Page 1 ARBOGA II 40 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 850 × 65 × 60 × 110 M8×70 × 15 × 40 1/24...
- Page 2 ARBOGA II 40 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB1 IFB2 IFB3 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. IFB4 CHECKING ALL DIRECTIONS, IFB5 2/24 INCLUDING CORNER...
- Page 3 ARBOGA II 40 ATTACH FOUNDATION BEAMS WITH SCREWS. × 2 × 10 5×70 6×140 3/24...
- Page 4 ARBOGA II 40 LAY OUT THE BOTTOM LOGS SO, THAT DOOR OPENING WILL BE 1441 MM WIDE 1441 mm 2 LG-1 A BL-1 B BL-1 1 LG-1 4/24...
- Page 5 ARBOGA II 40 ATTACH LOGS TO THE FOUNDATION. × 6 × 12 6×140 5×70 THE WALL LOGS WILL HANG OVER THE FOUNDATION BEAMS APPROXIMATELY 5MM. THIS OVERHANG 5/24 IS DESIGNED AS A RAIN DRIP.
- Page 6 ARBOGA II 40 ATTACH THE NEXT ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 3 × 6 A LG-1 6×140 5×70 B LG-2 6/24...
- Page 7 ARBOGA II 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 1 LG-6 7/24...
- Page 8 ARBOGA II 40 SLIDE THE DOOR IN, ATTACH THE HANDLE. CDD6R LOGS IN PLACE 8/24...
- Page 9 ARBOGA II 40 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. HITBLOCK B LG-4 1 LG-3 B LG-1 1 LG-2 9/24...
- Page 10 ARBOGA II 40 SLIDE THE WINDOWS IN, ATTACH THE HANDLE. CDW2L CDW2R 10/24...
- Page 11 ARBOGA II 40 2 LG-2 1 LG-5 B LG-6 1 LG-4 LOGS HALF LOG IN PLACE B LG-3 1 LG-7 11/24...
- Page 12 ARBOGA II 40 INSTALL CEILING TRIANGLE ATTACH WITH SCREWS INTO THE WALLS. 4×50 × 6 × 5 5×70 CEILING DETAIL 40×120 CEILING LEAVE 4CM CAP BETWEEN TRIANGLE DOOR AND CEILING DETAIL, ATTACH IT INTO WALLS AND INTO 12/24 CEILING TRIANGLE USING SCREWS...
- Page 13 ARBOGA II 40 ATTACH TOP LOGS INTO WALL LOGS WITH SCREWS. × 40 2 TL-1 2 TL-2 A TL-1 A TL-3 2 TL-3 A TL-2 B TL-2 A TL-4 B TL-1 1 TL-3 B TL-4 1 TL-1 1 TL-2 B TL-3...
- Page 14 ARBOGA II 40 CONNECT THE ROOF PURLINS (RFR) WITH BEFORE INSTALLING THEM ON TOP OF THE CORNERS. 14/24...
- Page 15 ARBOGA II 40 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 4 15/24...
- Page 16 ARBOGA II 40 INSTALL THE ROOF PURLINS (RFB) AND ATTACH THEM WITH SCREWS. × 16 × 16 5×70 RFB3 RFB1 6×140 RFB2 RFB4 16/24...
- Page 17 ARBOGA II 40 PLACE THE FIRST ROOFBOARD FLUSH WITH THE OF THE PURLINS AND ATTACH WITH SCREWS × 408 RB21 17/24...
- Page 18 ARBOGA II 40 INSTALL THE ROOF TOP AND ATTACH WITH SCREWS. ATTACH FASCIA TRIMS INTO ROOFPURLINS. × 40 ROOF TOP 18/24...
- Page 19 ARBOGA II 40 SCREW THE FLOORBOARDS INTO FOUNDATION, SAW THE LAST BOARD TO MAKE IT FIT. × 288 19/24...
- Page 20 ARBOGA II 40 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 40 20/24...
- Page 21 ARBOGA II 40 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 20CM ATTACH WITH BOLT. × 15 WINDBOARD 21/24...
- Page 22 ARBOGA II 40 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 22/24...
- Page 23 ARBOGA II 40 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 23/24...
- Page 24 ARBOGA II 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 24/24 100%...
