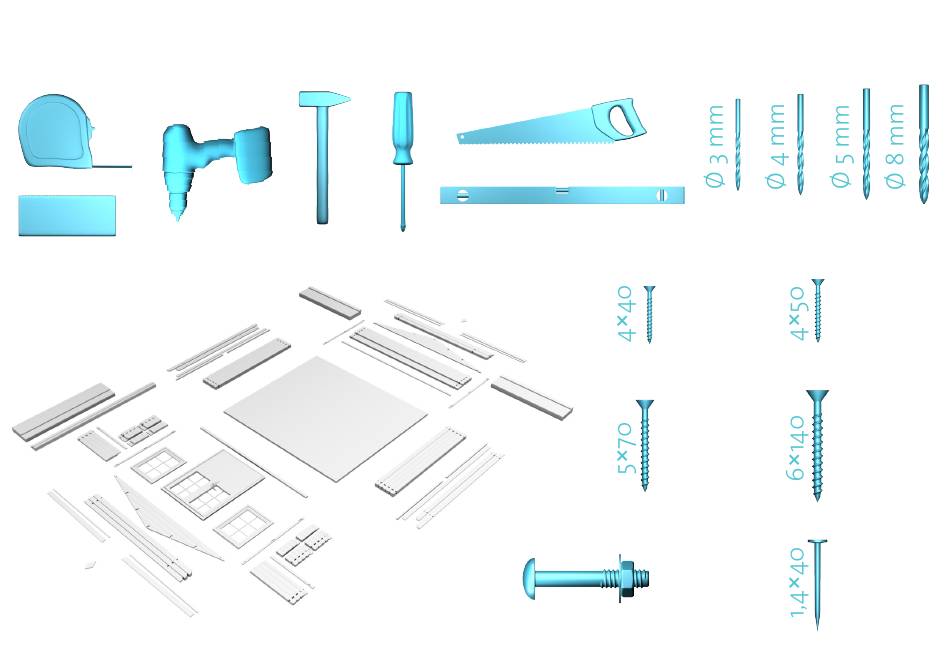

- Page 1 ELISABETH 28 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 60 × 510 × 15 × 35 M8×60 × 12 × 30 1/20...
- Page 2 ELISABETH 28 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/20 INCLUDING CORNER TO CORNER.
- Page 3 ELISABETH 28 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 5 × 12 2 BL-1 A LG-1 5×70 6×140 THE WALL LOGS WILL HANG OVER B LG-1 1 BL-1 THE FOUNDATION BEAMS APPROXIMATELY 5MM. THIS OVERHANG 1 BL- 1 3/20 IS DESIGNED AS A RAIN DRIP.
- Page 4 ELISABETH 28 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 5 6×140 2 LG-6 5×70 1 LG-5 1 LG-5 4/20...
- Page 5 ELISABETH 28 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/20...
- Page 6 ELISABETH 28 SLIDE THE DOOR IN, ATTACH THE HANDLE. BDD5R LOGS IN PLACE 6/20...
- Page 7 ELISABETH 28 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. 1 LG-2 1 LG-5 1 LG-1 7/20...
- Page 8 ELISABETH 28 SLIDE THE WINDOW IN, ATTACH THE HANDLE. BW1R BW1L 8/20...
- Page 9 ELISABETH 28 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE B TL-1 A TL-1 B LG-2 A LG-2 LOGS IN PLACE 9/20...
- Page 10 ELISABETH 28 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 10 10/20...
- Page 11 ELISABETH 28 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 272 11/20...
- Page 12 ELISABETH 28 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 32 12/20...
- Page 13 ELISABETH 28 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 40 13/20...
- Page 14 ELISABETH 28 ATTACH ROMBS WITH SCREWS. ROMB × 4 14/20...
- Page 15 ELISABETH 28 12 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 216 15/20...
- Page 16 ELISABETH 28 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS × 30 16/20...
- Page 17 ELISABETH 28 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 20CM ATTACH WITH BOLT. × 12 WINDBOARD 17/20...
- Page 18 ELISABETH 28 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 18/20...
- Page 19 ELISABETH 28 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 19/20...
- Page 20 ELISABETH 28 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 20/20 100%...
