Holz-Blech Lubec Assembly Instructions Manual

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

PREPARE THE GROUND, UNWRAP THE

LAY OUT THE COMPONENTS, FIND THE

1/24

PACKAGE,

TOOLS.

M8×90

Lubec / LUNA 40

× 140

× 20

× 650

× 65

× 30

Need help?

Do you have a question about the Lubec and is the answer not in the manual?

Questions and answers

Summary of Contents for Holz-Blech Lubec

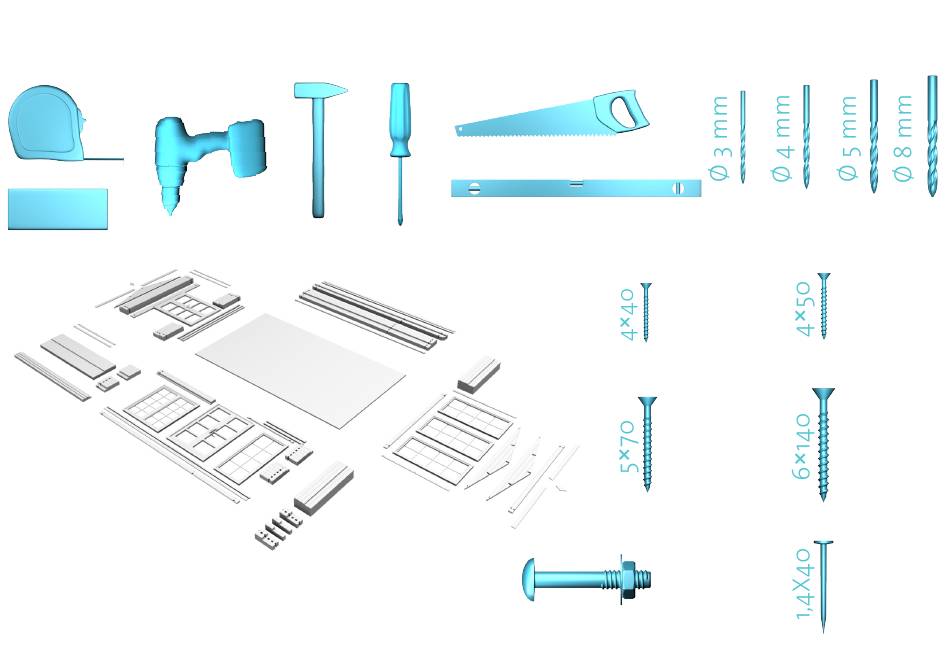

Page 1 Lubec / LUNA 40 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 650 × 140 × 20 × 65 M8×90 × 20 × 30 1/24...
Page 2 Lubec / LUNA 40 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB1 IFB2 IFB3 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/24 INCLUDING CORNER TO CORNER.
Page 3 Lubec / LUNA 40 ATTACH FOUNDATION BEAMS WITH SCREWS. × 4 × 14 6×140 5×70 3/24...
Page 4 Lubec / LUNA 40 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 6 × 12 2 BL-1 5×70 A LG-4 B LG-2 1 BL-2 THE WALL LOGS WILL HANG OVER THE FOUNDATION BEAMS APPROXIMATELY 5MM. THIS OVERHANG B LG-2...
Page 5 Lubec / LUNA 40 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 6 × 5 2 LG-1 6×140 5×70 1 LG-4 1 LG-3 1 LG-2 5/24...
Page 6 Lubec / LUNA 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 6/24...
Page 7 Lubec / LUNA 40 SLIDE THE DOORS ATTACH THE HANDLES. CDD2R CDD2R LOGS IN PLACE CW4R 7/24...
Page 8 Lubec / LUNA 40 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. 1 LG-2 1 LG-1 HITBLOCK 8/24...
Page 9 Lubec / LUNA 40 SLIDE THE WINDOW IN, ATTACH THE HANDLE. CDW4 LOGS IN PLACE 9/24...
Page 10 Lubec / LUNA 40 SLIDE THE WINDOWS IN. 1 LG-5 CW4L CW4R 10/24...
Page 11 Lubec / LUNA 40 INSTALL THE MIDDLE WINDOW, INSERT BETWEEN THE WINDOWS AND ATTACH WINDOWS TO CM1 WITH SCREWS. × 16 CW4R 11/24 ATTACH THE HANDLES. 46%...
Page 12 Lubec / LUNA 40 ATTACH LATHS (LTH1) INTO WINDOWS AND INTO WITH SCREWS. × 16 LTH1 LTH1 12/24...
Page 13 Lubec / LUNA 40 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 6 GABLE 2 TL-1 1 TL-1 B LG-7 13/24...
Page 14 Lubec / LUNA 40 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 9 14/24...
Page 15 Lubec / LUNA 40 PLACE THE FIRST ROOFBOARD FLUSH WITH OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT. SAW THE LAST BOARD TO MAKE IT FIT. × 348 15/24...
Page 16 Lubec / LUNA 40 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 52 16/24...
Page 17 Lubec / LUNA 40 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 32 17/24...
Page 18 Lubec / LUNA 40 ATTACH ROMBS WITH SCREWS. × 4 ROMB 18/24...
Page 19 Lubec / LUNA 40 14 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 266 19/24...
Page 20 Lubec / LUNA 40 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 30 20/24...
Page 21 Lubec / LUNA 40 DRILL THROUGH THE WALL, HOLES MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLT. × 20 WINDBOARD 21/24...
Page 22 Lubec / LUNA 40 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 22/24...
Page 23 Lubec / LUNA 40 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 23/24...
Page 24 Lubec / LUNA 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 24/24 100%...
