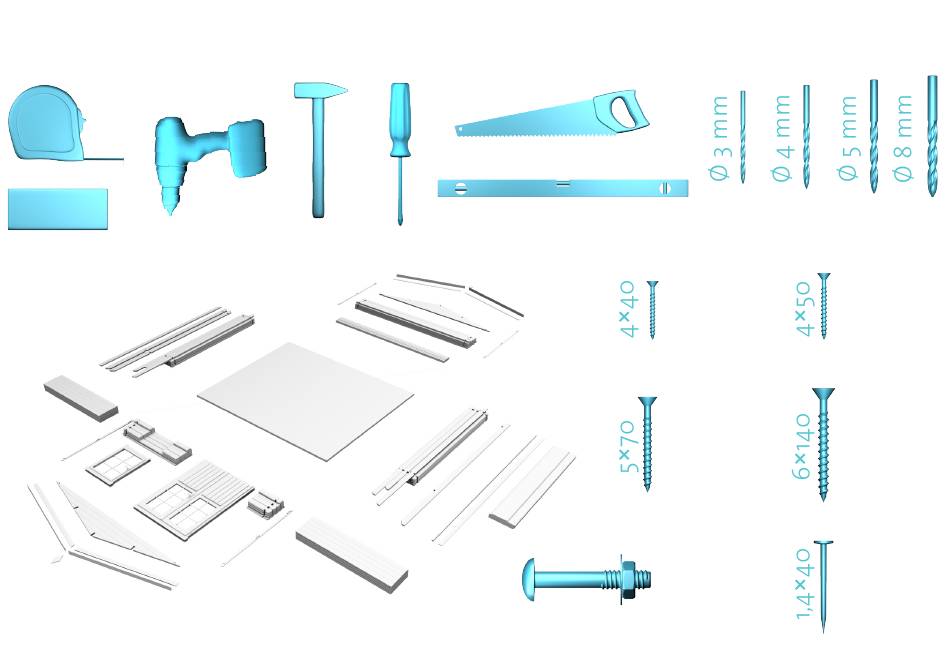

- Page 1 BRANTEVIK I 40 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 85 × 480 × 15 × 30 M8×70 × 12 × 30 1/20...
- Page 2 BRANTEVIK I 40 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/20 INCLUDING CORNER TO CORNER.
- Page 3 BRANTEVIK I 40 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 6 × 12 2 BL-1 5×70 A LG-1 6×140 B LG-1 THE WALL LOGS WILL HANG OVER THE FOUNDATION BEAMS 1 BL-2 APPROXIMATELY 5MM. THIS OVERHANG 1 BL-1 3/20 IS DESIGNED AS A RAIN DRIP.
- Page 4 BRANTEVIK I 40 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 6 6×140 2 LG-6 5×70 1 LG-5 1 LG-2 4/20...
- Page 5 BRANTEVIK I 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/20...
- Page 6 BRANTEVIK I 40 SLIDE THE DOOR IN, ATTACH THE HANDLE. CDD1R LOGS IN PLACE 6/20...
- Page 7 BRANTEVIK I 40 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. 1 LG-2 1 LG-1 7/20...
- Page 8 BRANTEVIK I 40 SLIDE THE WINDOW IN, ATTACH THE HANDLE. CW1R 8/20...
- Page 9 BRANTEVIK I 40 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE B TL-1 B LG-4 A TL-1 B LG-3 B LG-2 A LG-4 LOGS IN PLACE LOGS IN PLACE...
- Page 10 BRANTEVIK I 40 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 6 10/20...
- Page 11 BRANTEVIK I 40 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 258 11/20...
- Page 12 BRANTEVIK I 40 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 40 12/20...
- Page 13 BRANTEVIK I 40 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 32 13/20...
- Page 14 BRANTEVIK I 40 ATTACH ROMBS WITH SCREWS. ROMB × 4 14/20...
- Page 15 BRANTEVIK I 40 14 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 204 15/20...
- Page 16 BRANTEVIK I 40 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 30 16/20...
- Page 17 BRANTEVIK I 40 WINDBOARD CONNECTS BOTTOM LOG WITH THE TOP LOG. SAW THE WINDBOARD INTO THE RIGHT LENGTH. FOR THE TOP BOLT, DRILL 8MM HOLE THROUGH THE WINDBOARD. × 12 WINDBOARD DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 17/20 ATTACH WITH BOLTS.
- Page 18 BRANTEVIK I 40 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 18/20...
- Page 19 BRANTEVIK I 40 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 19/20...
- Page 20 BRANTEVIK I 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 20/20 100%...
