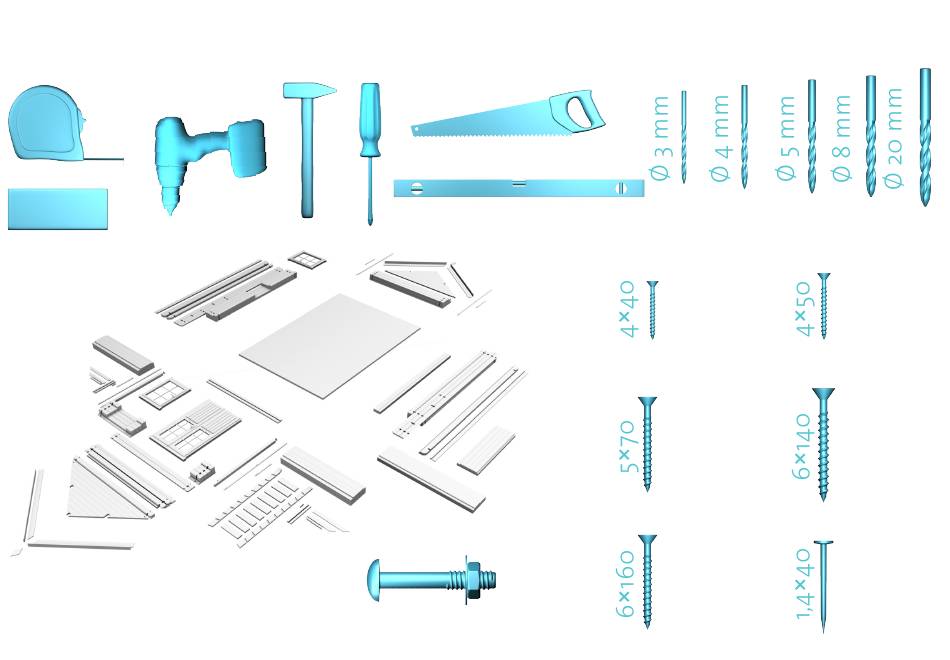

PREPARE THE GROUND, UNWRAP THE

LAY OUT THE COMPONENTS, FIND THE

1/34

PACKAGE,

TOOLS.

M8×70

× 20

BODEN II 40

× 120

× 700

× 45

× 80

× 6

× 50

Need help?

Do you have a question about the Boden II 40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Holz-Blech Boden II 40

Page 1 BODEN II 40 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 120 × 700 × 45 × 80 M8×70 × 20 × 6 × 50 1/34...
Page 2 BODEN II 40 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB1 IFB2 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/34 INCLUDING CORNER TO CORNER.
Page 3 BODEN II 40 ATTACH FOUNDATION BEAMS WITH SCREWS. × 12 3/34...
Page 4 BODEN II 40 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 4 × 10 4 BL-1 A LG-3 5×70 6×140 THE WALL LOGS WILL HANG OVER B LG-1 THE FOUNDATION BEAMS 2 BL-2 APPROXIMATELY 5MM. THIS OVERHANG 2 BL-1 4/34 IS DESIGNED AS A RAIN DRIP.
Page 5 BODEN II 40 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 4 6×140 4 LG-12 5×70 2 LG-3 2 LG-2 5/34...
Page 6 BODEN II 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 6/34...
Page 7 BODEN II 40 SLIDE THE DOOR IN, ATTACH THE HANDLE. CDD5R LOGS IN PLACE 7/34...
Page 8 BODEN II 40 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. A LG-1 A LG-2 HITBLOCK 2 LG-2 2 LG-1 8/34...
Page 9 BODEN II 40 SLIDE THE WINDOWS IN, ATTACH THE HANDLE. CW1R CW1R 9/34...
Page 10 BODEN II 40 2 LG-5 3 LG-2 B LG-3 A LG-5 B LG-2 A LG-4 LOGS IN PLACE 1 LG-12 10/34...
Page 11 BODEN II 40 INSTALL THE CEILING BEAMS AND ATTACH THEM WITH SCREWS. × 4 4 LG-11 2 LG-4 3 LG-1 1 LG-11 11/34...
Page 12 BODEN II 40 INSTALL THE BEAM ATTACH WITH SCREWS. × 11 12/34...
Page 13 BODEN II 40 DRILL 20 MM HOLE IN THE MIDDLE OF THE POSTS BOTTOM. ATTACH POST FOOT WITH SCREWS. × 8 Ø 20 SCREW IN THE SECOND POST 13/34 PART OF THE POSTFOOT.
Page 14 BODEN II 40 ATTACH THE POSTS TO THE WALL WITH SCREWS. MAKE SURE THAT THEY STRAIGHT. × 4 14/34 ADJUSTABLE POST FOOT...
Page 15 BODEN II 40 SCREW OUT THE SECOND PART OF THE POST FOOT SO THAT IT TIGHTLY TOUCHES THE GROUND. DEPENDING ON SURFACE USE SCREWS OR ANCHOR BOLTS TO ATTACH 15/34 THE POST FOOT TO THE GROUND.
Page 16 BODEN II 40 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE A TL-1 B TL-1 16/34...
Page 17 BODEN II 40 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 6 17/34...
Page 18 BODEN II 40 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 276 18/34...
Page 19 BODEN II 40 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 44 19/34...
Page 20 BODEN II 40 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 32 20/34...
Page 21 BODEN II 40 ATTACH ROMBS WITH SCREWS. ROMB × 4 21/34...
Page 22 BODEN II 40 12 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 204 22/34...
Page 23 BODEN II 40 10 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 130 23/34...
Page 24 BODEN II 40 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 50 24/34...
Page 25 BODEN II 40 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 20CM ATTACH WITH BOLT. × 20 WINDBOARD 25/34...
Page 26 BODEN II 40 ASSEMBLE THE STAIRCASE. ×36 ST1L ST1R 26/34...
Page 27 BODEN II 40 CUT THE BOARDS INSTALL THE STAIRCASE AGAINST THE WALL. ×8 SET THE STAIRCASE AT THE RIGHT SPOT, ATTACH THE FIRST HALF OF THE LADDER 27/34 FITTINGS TO THE WALL WITH SCREWS.93%...
Page 28 BODEN II 40 CONNECT THE OTHER HALF OF THE LADDER FITTINGS AND ATTACH THEM WITH SCREWS TO THE STAIRCASE. ×8 28/34...
Page 29 BODEN II 40 CUT THE BOARDS TO INSTALL THE FENCE DETAILS AGAINST THE WALL. ATTACH THEM WITH SCREWS. × 10 29/34...
Page 30 BODEN II 40 SAW THE FENCE DETAILS INTO RIGHT SIZE AND SHAPE, ATTACH WITH SCREWS. × 16 30/34...
Page 31 BODEN II 40 SAW THE FENCE DETAILS INTO THE RIGHT SIZE AND SHAPE, ATTACH WITH SCREWS. × 16 31/34...
Page 32 BODEN II 40 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 32/34...
Page 33 BODEN II 40 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 33/34...
Page 34 BODEN II 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 34/34 100%...
