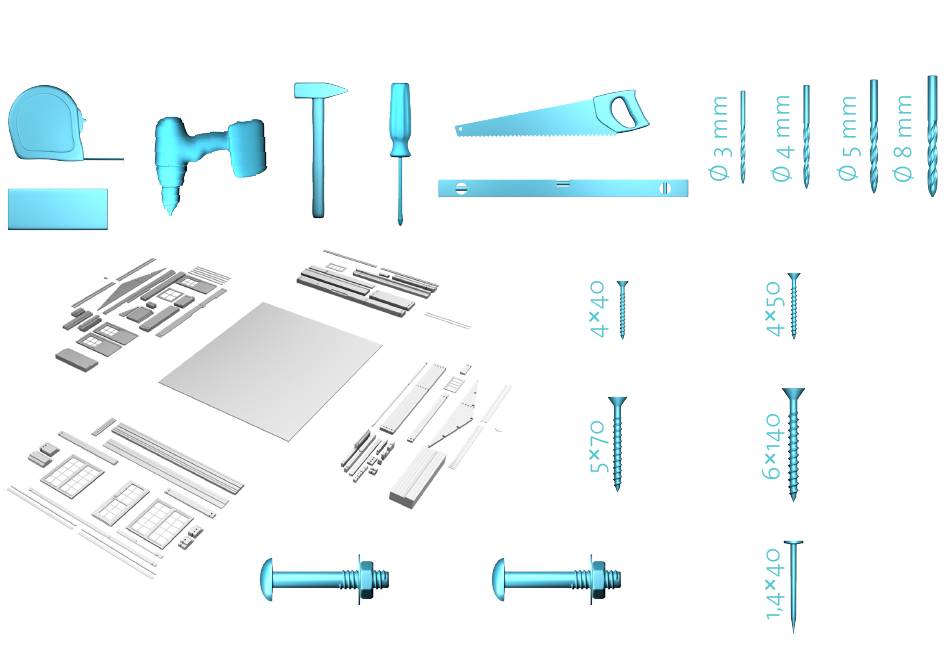

- Page 1 AIDA 40 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 120 × 1650 × 40 × 140 M8×90 M8×70 × 3 × 18 × 150 1/29...
- Page 2 AIDA 40 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB5 IFB6 IFB2 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. IFB1 CHECKING ALL DIRECTIONS, IFB3 IFB4 2/29 INCLUDING CORNER...
- Page 3 AIDA 40 ATTACH FOUNDATION BEAMS WITH SCREWS. × 42 3/29...
- Page 4 AIDA 40 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. 2 BL-1 1 BL-3 1 BL-2 3 BL-2 3 BL-3 1 BL-1 3 BL-4 THE WALL LOGS WILL HANG OVER 4 BL-2 THE FOUNDATION BEAMS 3 BL-1 APPROXIMATELY 5MM. THIS OVERHANG...
- Page 5 AIDA 40 LAY OUT THE LOGS, ATTACH TO THE FOUNDATION. × 14 × 21 A LG-1 5×70 H-PROFILE 6×140 B LG-1 D LG-1 C LG-7 C LG-6 E LG-3 5/29...
- Page 6 AIDA 40 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 12 × 16 2 LG-3 1 LG-12 1 LG-7 3 LG-3 6×140 3 LG-5 5×70 1 LG-1 4 LG-13 1 LG-2 3 LG-7 3 LG-1...
- Page 7 AIDA 40 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 4 LG-7 E LG-1 E LG-2 7/29...
- Page 8 AIDA 40 UNDER THREE INDICATED DOORS INSTALL THE DOOR BEAMS, SLIDE THE DOORS IN, ATTACH THE HANDLES. ×6 CD1R CD3R LOGS IN PLACE 8/29...
- Page 9 AIDA 40 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. C LG-4 C LG-3 C LG-2 1 LG-6 C LG-1 D LG-2 4 LG-8 E LG-4 9/29...
- Page 10 AIDA 40 ATTACH THE HANDRAILS WITH SCREWS. ×22 10/29...
- Page 11 AIDA 40 SLIDE THE WINDOWS IN, ATTACH THE HANDLES. CDW4 11/29...
- Page 12 AIDA 40 SLIDE THE WINDOW IN, ATTACH THE HANDLE. 1 LG-9 CW8R 1 LG-3 12/29...
- Page 13 AIDA 40 SLIDE THE WINDOWS IN, ATTACH THE HANDLES. CW5R A LG-3 A LG-2 4 LG-4 4 LG-10 13/29...
- Page 14 AIDA 40 INSTALL THE TOPLOGS. × 4 A TL-2 1 LG-17 1 LG-13 A TL-1 C TL-2 3 LG-13 C LG-8 C TL-1 LOGS IN PLACE C LG-5 3 LG-12 14/29...
- Page 15 AIDA 40 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 9 GABLE B TL-1 15/29...
- Page 16 AIDA 40 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 15 RFB2 RFB1 16/29...
- Page 17 AIDA 40 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 8 SCREWS, 4 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 496 17/29...
- Page 18 AIDA 40 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 52 18/29...
- Page 19 AIDA 40 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 40 19/29...
- Page 20 AIDA 40 ATTACH ROMBS WITH SCREWS. ROMB × 4 20/29...
- Page 21 AIDA 40 SCREW THE FLOORBOARDS INTO FOUNDATION, SAW THE LAST BOARD TO MAKE IT FIT. × 549 21/29...
- Page 22 AIDA 40 SAW THE BOARDS IF NEEDED, SCREW THEM INTO FOUNDATION. × 99 22/29...
- Page 23 AIDA 40 LEAVE 3MM GAP BETWEEN THE BOARDS SCREW THEM INTO FOUNDATION. SAW THE BOARDS IF NEEDED. × 418 23/29...
- Page 24 AIDA 40 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 150 24/29...
- Page 25 AIDA 40 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLTS. WINDBOARD1 × 18 25/29...
- Page 26 AIDA 40 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLTS. WINDBOARD2 × 3 × 10 BOARD 18×90 ATTACH THE BOARD 18×90 26/29 INTO WINDBOARDS...
- Page 27 AIDA 40 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 27/29...
- Page 28 AIDA 40 DOOR IS NOT ON THE RIGHT HEIGHT, ADJUST 3 SCREWS ON DOOR HINGES. 28/29...
- Page 29 AIDA 40 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 29/29 100%...
