Holz-Blech Bianca 28 Manual

Hide thumbs

page of 21

/ 21
Bookmarks

Quick Links

Download this manual

PREPARE THE GROUND, UNWRAP THE

LAY OUT THE COMPONENTS, FIND THE

1/21

PACKAGE,

TOOLS.

M8×60

BIANCA 28

× 65

× 500

× 10

× 45

× 12

× 30

Need help?

Do you have a question about the Bianca 28 and is the answer not in the manual?

Questions and answers

Summary of Contents for Holz-Blech Bianca 28

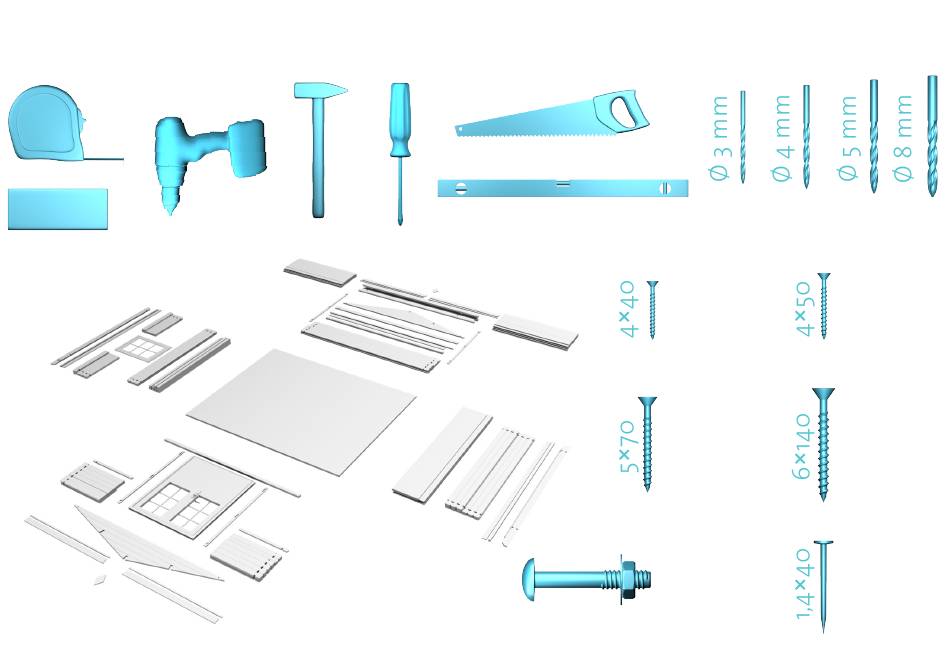

Page 1 BIANCA 28 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 65 × 500 × 10 × 45 M8×60 × 12 × 30 1/21...
Page 2 BIANCA 28 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB2 IFB1 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/21 INCLUDING CORNER TO CORNER.
Page 3 BIANCA 28 ASSEMBLE THE FOUNDATION WITH SCREWS × 20 3/21...
Page 4 BIANCA 28 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 5 × 8 2 BL-1 A LG-2 5×70 6×140 B LG-1 THE WALL LOGS WILL HANG OVER 1 BL-1 THE FOUNDATION BEAMS 1 BL-1 APPROXIMATELY 5MM. THIS OVERHANG 4/21 IS DESIGNED AS A RAIN DRIP.
Page 5 BIANCA 28 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 5 6×140 2 LG-6 5×70 1 LG-2 1 LG-2 5/21...
Page 6 BIANCA 28 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 6/21...
Page 7 BIANCA 28 SLIDE THE DOOR IN, ATTACH THE HANDLE. BDD5 LOGS IN PLACE 7/21...
Page 8 BIANCA 28 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. A LG-1 8/21...
Page 9 BIANCA 28 SLIDE THE WINDOW IN, ATTACH THE HANDLE. BW1R 9/21...
Page 10 BIANCA 28 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE B TL-1 A TL-1 B LG-2 A LG-3 LOGS IN PLACE 10/21...
Page 11 BIANCA 28 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 6 11/21...
Page 12 BIANCA 28 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 204 12/21...
Page 13 BIANCA 28 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 32 13/21...
Page 14 BIANCA 28 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 32 14/21...
Page 15 BIANCA 28 ATTACH ROMBS WITH SCREWS. ROMB × 4 15/21...
Page 16 BIANCA 28 20 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 270 16/21...
Page 17 BIANCA 28 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 30 17/21...
Page 18 BIANCA 28 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLT. × 12 WINDBOARD 18/21...
Page 19 BIANCA 28 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 19/21...
Page 20 BIANCA 28 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 20/21...
Page 21 BIANCA 28 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 21/21 100%...
