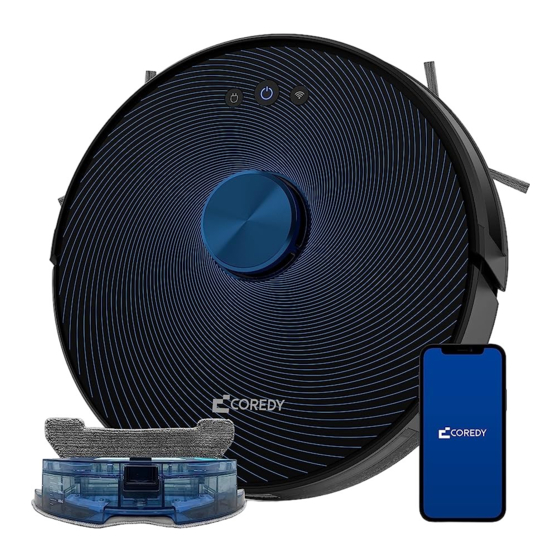

Coredy FL022 Owner's Manual

Hide thumbs Also See for FL022:
Table of Contents

Advertisement

Quick Links

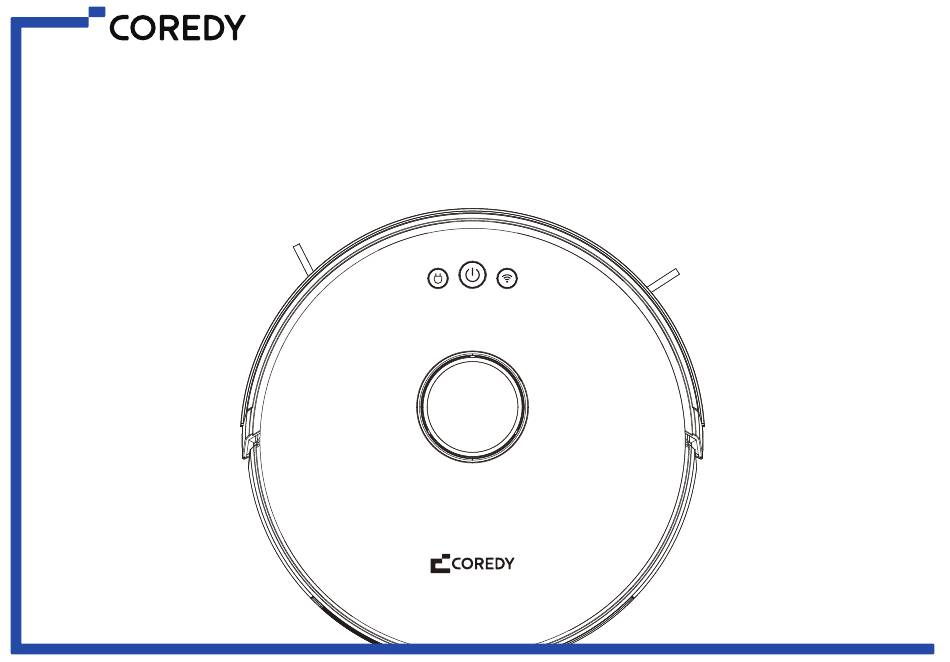

022
FL
Owner's
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL022 and is the answer not in the manual?

Questions and answers

Related Manuals for Coredy FL022

Summary of Contents for Coredy FL022

  • Page 1 Owner's Manual...

  • Page 2: Table Of Contents

    3.1 Important Tips Before Use ........................................3.2 Map Navigation and Management ....................................3.3 Quick Start ..............................................3.4 Use Your FL022 with the “Coredy Robot” App ................................3.5 Using the Water Tank and Mopping Cloth ..................................4. Regular Maintenance ................................4.1 Emptying Robot’s Bin ..........................................

  • Page 3: Important Of Safety Information

    The robot must be used in accordance with the directions in this Instruction Manual. Coredy Inc. cannot be held liable or responsible for any damages or injuries caused by improper use.

  • Page 4: Battery And Charging

    Do not operate the robot in areas with exposed electrical outlets on the floor. 1.2 Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. The product may not be used with any type of power converter. The use of other power converters will immediately void the warranty.
  • Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack leaks, please don’t hesitate to contact Coredy. Customer Service for disposal. The battery pack must be removed from the robot before disposal.

  • Page 6: Product Diagram

    Press and hold for 3 seconds to turn on or off Press to start Auto cleaning Press to pause the current cleaning when working Press to return Coredy FL022 to the charging dock Press again to pause Press and hold for 3 seconds to active Wi-Fi paring or reset...
  • Page 7 WiFi Status Light Laser Distance Sensor Power Button Cover Recharge Button Dust Bin Release Button Front Bumper Charging Contacts Cliff Sensors Universal Wheel Side Brushes Battery Compartment Brush Guard Rolling Brush Side Wheels Dust Bin...

  • Page 8: Accessories

    2.2 Accessories 1 x Charging Dock 1 x Power Adapter 1 x Cleaning Tool 1 x Dust Bin 1 x Water Tank (with Mopping Cloth) 1 x Mopping Cloth 4 x Side Brush 2 x HEPA Filter 1 x Cleaning Brush...

  • Page 9: Charging Dock

    2.3 Charging Dock Charging Indicator Signal Transmission Area Power Socket Charging Contact Pins...

  • Page 10: Led Indication

    2.4 LED Indication Light Light Status Status Flashing blue, purple, red alternately, Waking up Rapidly flashing purple Solid red Error indication Flashing blue Pause Standby Solid blue Cleaning Fully charged Low power and returning to Charging Dock Solid purple Breathing blue Charging Waiting for Wi-Fi connection Slowly flashing blue...

  • Page 11: Operating And Programming

    1.02 in/26 mm as they may cause Coredy Robot FL022 to malfunction. c. Keep Coredy Robot FL022 away from spaces lower than 3.38 in/96 mm to prevent Coredy Robot FL022 from getting stuck. If necessary, place a physical barrier to block off the problem areas.
  • Page 12 Keep Coredy Robot FL022 away from wet areas during cleaning. e. Coredy Robot FL022 may climb on top of objects less than 0.59 in/15 mm in height (the height will be reduced if the mopping module is installed). Remove these objects if possible.

  • Page 13: Map Navigation And Management

    If the relocalization fails, Coredy Robot FL022 will remap to ensure normal navigation with a new cleaning. If it is in a No-go zones, Coredy Robot FL022 will not start cleaning. Note: Real-time Mapping & Floor Plan Make sure Coredy Robot FL022 starts each cleaning from the Charging Dock.

  • Page 14: Quick Start

    Do not expose the charging dock to sunlight directly. 4. Install Side Brush 2. Place the Charging Dock on a hard, level surface and Attach Side Brushes to the bottom of Coredy FL022 by position it against a wall. pressing a brush into each slot until it clicks.
  • Page 15 Dock match up with those underneath the robot. During the cleaning process, the FL022 Robot automatically checks its battery level. If the power is insufficient, the FL022 If successful, you will hear a series of tones. Once the Robot activates the "Return to docking station" mode and power button illuminates, Coredy FL022 is ready for use.
  • Page 16 9. Sleep Mode will clean the area twice by default. The Coredy Robot FL022 will automatically enter sleep If the power is insufficient in the cleaning process, the FL022 mode after 10 minutes of inactivity and the power Robot will automatically return to the docking station for indicator.

  • Page 17: Use Your Fl022 With The "Coredy Robot" App

    3.4 Use Your FL022 with the “Coredy Robot” App To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App. Scan the QR code as below to download the latest version of App or download from the App Store (iOS devices) or Google Play (Android devices).
  • Page 18 1. Create a User Account 1. Open the Coredy Robot app 2. Click "Agree." 3. Create your Coredy account. and create a user account.
  • Page 19 4. Enter the verification code. 5. Set your password to 6. To provide better services, you can allow the following 6~20 characters, and click permissions (or not) for the App, then click "Go to App." "Done."...
  • Page 20 7. Enable the Coredy App to send notifications, then click 2. Add Device "Continue." 1. Click "Add Device" or tap "+" in the upper right corner.
  • Page 21 2. Enable Coredy App to get your location and use your 3. Add a Coredy FL022 Robot Bluetooth. to your Coredy account.
  • Page 22 Then, after successfully connecting to the hotspot, as you use as usual. Enter the Wi-Fi Button for 3 manually switch to the Coredy Robot App. your Wi-Fi password, and seconds. You'll hear a voice Click "Next" to connect.
  • Page 23 4. Wait for the connection 5. Your device is added 6. Wait 1-2 seconds for the progress to reach 100% successfully. Click "Done" Robot to be ready. Now you can control Coredy FL022 via the App. Click "More" to access additional features.
  • Page 24 Coredy Robot FL022's Wi-Fi connection. Press and hold the on Robot for 3 seconds to reset the Wi-Fi connection. You can follow the Wi-Fi instructions in the Coredy Robot App to set up the Wi-Fi connection. 5. Coredy App Control 5.2ft/1.6m Follow the instructions in the App to set up the Wi-Fi connection.
  • Page 25 Set a no-go zone or virtual wall Note: After cleaning starts, the FL022 Robot may move to a place You can use the App to set up restricted zone or virtual beyond the configured zone. Make sure that you have wall.
  • Page 26 "Alexa, turn on Coredy FL022" the actual version. "Alexa, turn off Coredy FL022" 6. If you add two or more Robot devices to Coredy App, you 6. Using Amazon Alexa can edit name for each Coredy robot on Coredy App or Alexa, they're Synchronous.
  • Page 27 7. Using Google Assistant (Note: Only supports above commands currently.) 5. If you add two or more Robot devices to Coredy Robot These instructions will help enable you to control your Coredy App, you can edit name for each Coredy robot on Coredy device with Google Assistant.

  • Page 28: Using The Water Tank And Mopping Cloth

    3.5 Using the Water Tank and Mopping Cloth 1. Wet the mopping cloth and wring it until it does not drip. 3. Fill the water tank with water. 2. Attach the mop cloth to the water tank. 4. Install the water tank into the bottom of robot.

  • Page 29: Regular Maintenance

    4. Regular Maintenance To achieve the best cleaning effect, clean and maintain the Robot regularly according to the table below. Recommended cleaning and maintenance frequency: Robot Part Care Frequency Replacement Frequency Once per week Filter Every 2-3 months (twice per week in homes with pets) Once per week Roller Brush Every 3-6 months...

  • Page 30: Emptying Robot's Bin

    4.1 Emptying Robot’s Bin 3. Clean the dust bin with the cleaning brush. 1. Press dust bin release button to remove it. 2. Open dust bin door to empty it. Note: Dust bin with a fan inside, can not be directly washed with water.

  • Page 31: Clean Robot's Filter

    4.2 Clean Robot's Filter 3. Wash the primary filter with water and clean the HEPA filter with the brush. 1. Open the filter cover. Note: Water washing is not recommended for the HEPA filter. 4.3 Dry the Dust Bin 2. Remove the HEPA filter and primary filter. and Filter Components Dry the dust box and filter components, and keep them dry to ensure their service life.

  • Page 32: Clean Robot's Water Tank And Mopping Cloth

    Note: 2. Empty the water tank and clean the mopping cloth. 1. Before installing filters, ensure that the primary filter and HEPA filter are completely dry. 2. Do not expose the primary filter and HEPA filter to the sunlight. 4.4 Clean Robot's Water Tank and Mopping Cloth 1.

  • Page 33: Clean Robot's Side Brush

    4.5 Clean Robot's Side Brush 3. Dry or air dry the water tank and the mopping cloth. Remove the brush first. Then clean the brush and the brush stand, and reinstall them. 4.6 Cleaning Robot’s Cliff Sensors and Charging Contacts 1.

  • Page 34: Cleaning Robot's Front Bumper

    4.7 Cleaning Robot’s Front Bumper 2. Wipe the charging contacts on Robot and the Use a clean, dry microfiber or soft cotton cloth to wipe both sides butting charging pole pieces with a clean, dry cloth. of the robot and clean any dirt debris trapped inside the bumper. 4.8 Cleaning Robot’s Rolling Brush 1.
  • Page 35 4. Reinstall the rolling brush by inserting the fixed 2. Remove the rolling brush. protruding end first and then clicking into place. 5. Put the brush guard back into the previous place. 3. Clean the rolling brush with the cleaning tool provided.

  • Page 36: Battery And Charging Information

    Important: Lithium ion batteries and products that contain Battery Replacement lithium ion batteries are subject to stringent transportation You can visit Coredy’s website http://shop.coredy.com to regulations. purchase the battery or other accessories for the robot. If you need to ship this product (with the battery included) for...
  • Page 37 3. Reconnect the Wire-to-Board connectors and reinstall the 2. Unplug the Wire-to-Board connectors and remove the replacement battery. battery. 4. Reinstall the battery cover and the two screws.

  • Page 38: Troubleshooting

    The bumper is stuck. Tap the bumper several times to remove the debris. please check the collision sensor. If there is no debris, move the FL022 Robot to a new position and then start it. Error 3: Main roller brush is entangled, The roller brush may be entangled with debris.
  • Page 39 Failed to power on the machine The battery temperature is too high or too low. Please use the FL022 Robot when the ambient temperature is 0°C to 40°C. The docking station is not connected to the power supply. Please make sure that both ends of the docking station power cord are properly connected.
  • Page 40 The roller brush is entangled with dirt or debris. Clean the roller brush. The Wi-Fi function is not activated. Reset the Wi-Fi connection, and try again. The Wi-Fi signal is not good. Ensure that the FL022 Robot is located in a place with good Wi-Fi signals.
  • Page 41 If the FL022 Robot is far away from the docking station, the FL022 Robot may or after its position is moved. fail to return to the docking station by itself. In this case, manually put the FL022 Robot back to the docking station.

  • Page 42: Wi-Fi Connection

    When using a network extender/repeater, make sure the network name (SSID) and password are the same as your primary network. Before Wi-Fi setup, make sure Coredy Robot FL022 and your Wi-Fi network meet the following requirements. The firewall and port settings of your Wi-Fi router...

  • Page 43: Specification

    7. Specifications Product Model FL022 Input 19 V 0.6 A Battery Voltage DC 14.4 V Power Consumption 30 W DC 14.4 V Battery Type Li-ion 2500mAh Dust Collector Capacity 0.6 L Water Tank Capacity 0.35 L Cleaning Time Max. 110 mins...
  • Page 44 FOLLOW US: @CoredyOfficial @Coredy Official @coredylife CONTACT US: Model: FL022 US COST FREE Tech Support: +1 (800) 999 8470 (PST Mon-Sun 06:00~02:00) E-mail: support@coredytech.com UK COST FREE Tech Support: +44 (808) 134 9909 (GMT Mon-Sun 14:00~10:00) Website: http://shop.coredy.com V1.1...
