Summary of Contents for Coredy R600

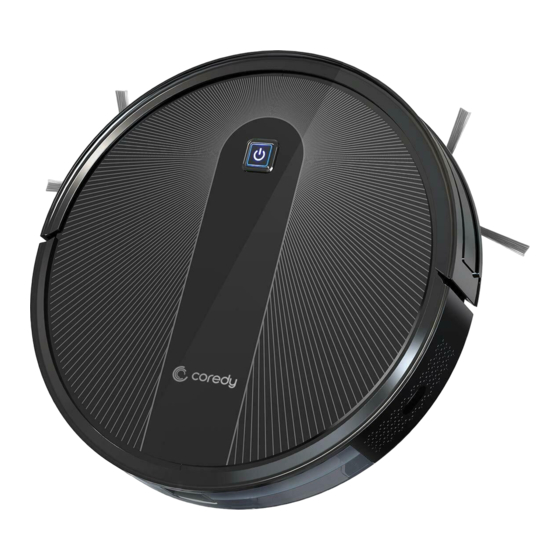

  • Page 1 Owner’s Manual Coredy R600...

  • Page 2: Table Of Contents

    2.4 Remote Control ......................Operating and Programming 3.1 Notes Before Cleaning ....................3.2 Quick Start ........................3.3 How Coredy R600 Clean Your Home ..............3.4 Cleaning Schedule ....................... Regular Robot Care 4.1 Emptying Robot’s Bin ....................4.2 Cleaning Robot’s Filter ....................

  • Page 3: Important Safety Information

    The robot must be used in accordance with the directions in this Instruction Manual. Coredy inc cannot be held liable or responsible for any damages or injuries caused by improper use.

  • Page 4: Battery And Charging

    Do not operate the robot in areas with exposed electrical outlets in the floor. 1.2 Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power converters will immediately void the warranty.
  • Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack is leaking, contact Coredy Customer Service for disposal. The battery pack must be removed from the robot before disposal.

  • Page 6: Product Diagram

    2 Product Diagram 2.1 Robot Indicator Indicator Light Blue: Cleaning/ Standby Mode/ Full Charging Indicator Light Orange: Self-Charging and Standby Mode under Low Power Indicator Light Blinks Orange: Charging Indicator Light off: Sleep Mode Indicator Light or Blinks Red Accompanied with Sound Alarm: Troubleshooting Power on/ Cleaning Press and Hold on to Power on or Power off Press to Start Cleaning...
  • Page 7 Bumper Infrared sensor Dust collector release button Dust collector Anti-Drop Sensors Charging Contacts Universal Wheel Side Brushes Battery Pack Driving Wheels Power Switch Dust Bin Main Brush...

  • Page 8: Accessories

    2.2 Accessories 1 x Charging Dock 1 x Adapter 1 x Remote Control (with 2 x AAA battery) 1 x Sponge Filter and 1 x Dust Bin 4 x Side Brushes High Efficiency Filter 1 x Brush 1 x Main Brush...

  • Page 9: Charging Dock

    2.3 Charging Dock Charging indicator Location for remote control Signal transmission area Butting charging pole piece...

  • Page 10: Remote Control

    2.4 Remote Control Mode and time display screen Automatic cleaning Automatic re-charging button Direction buttons Start / Pause button Clock setup button Scheduling button Spot cleaning button Edge cleaning button Small-space button Changing cleaning suction button...

  • Page 11: Operating And Programming

    3 Operating and Programming 3.1 Notes Before Cleaning Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf.

  • Page 12: Quick Start

    Note: Failure to place the remaining wire into the trunking, may cause Robot to Attach Side Brushes to the bottom of Coredy R600 by pressing a become stuck while charging or cleaning. brush into each slot until it clicks. Activate the Robot...
  • Page 13 Pause Start Cleaning Cycle Press the power button once to wake up the robot. To pause the robot during a cleaning cycle press the button on robot or press the button on the Remote Control. Press the power button again to start a cleaning cycle (or button on Remote Control).

  • Page 14: How Coredy R600 Clean Your Home

    3.3 How Coredy R600 Clean Your Home Cleaning Preferences Coredy R600 continues this process until it has cleaned an entire level of Spot Cleaning your home. If its battery gets low before finishing a cleaning cycle, When you select Spot Cleaning, robot intensely cleans a localized Coredy R600 returns to the Charging Dock to recharge.
  • Page 15 Coredy R600 intensively cleans one single room and stops after 30 the carpet, normal suction returns. minutes. Select this mode only when one specific room needs to be cleaned. Make sure to confine Coredy R600 to the room by closing the door. Press on the remote control to start cleaning in Single Room Mode.
  • Page 16 Manual Cleaning You can direct Coredy R600 to clean a particular area by using the directional buttons on the remote control. Move forward Turn left Turn right Move backward...

  • Page 17: Cleaning Schedule

    3.4 Cleaning Schedule Coredy R600 has cleaning schedule settings which allow you to customize when Robot cleans your home. These settings are available only through the Remote Control. Note: Please make sure the Remote Control near by the Robot while setting the Clock or Schedule.
  • Page 18 Setting Cleaning Schedule Press button on Remote Control, and Press button to select the desired And then press the button, the Robot will then the hour section begins to flash in the figures. Press the button to select “BEEP” when the Cleaning Schedule setting Cleaning Schedule display setting window.

  • Page 19: Regular Robot Care

    After each use Front Caster Wheel Side Brush Once per month Cliff Sensors Charging Contacts Floor Tracking Sensor Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy Customer Care for more information.

  • Page 20: Emptying Robot's Bin

    4.1 Emptying Robot’s Bin 4.2 Cleaning Robot’s Filter Remove filter by grasping the white tab. Press dust bin release button to remove it. Open dust bin door to empty it. Shake off debris by tapping the filter against your trash container.

  • Page 21: Cleaning Robot's Side Brush

    4.3 Cleaning Robot’s Side Brush Wipe the charging contacts on Robot and the Charging Base with a clean, dry cloth. Remove the brush Clean the brush and the brush stand, and reinstall the brush. 4.4 Cleaning Robot’s Cliff Sensors and Charging Contacts Wipe Robot’s Cliff Sensors with a clean, dry cloth.

  • Page 22: Cleaning Robot's Floor Tracking Sensor

    4.5 Cleaning Robot’s Floor Tracking Clean the rolling brush with the provided cleaning tool or a vacuum cleaner. Sensor Use a clean, dry microfiber or soft cotton cloth to wipe any debris that has accumulated in the round sensor opening on the right side of the bottom surface.

  • Page 23: Battery And Charging Information

    If storing robot off of the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement You can visit Coredy’s website www.coredy.com to purchase the battery or other accessories for the robot.
  • Page 24 Battery Removal Reinstall the battery with the battery label and tabs facing up. Follow these instructions to remove and reinstall robot’s battery: Unscrew the door and the two screws on the battery door, then remove. Reinstall the battery door and the two screws. Take care not to pinch the side brush in the battery door when re-installing the battery.

  • Page 25: Troubleshooting

    5 Troubleshooting Robot will tell you something is wrong with a two-tone distress sound followed by message. The indicator will also blink or lit red. Refer to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our COST FREE customer service team for more assistance.
  • Page 26 Indicator Flashing Red Robot Blinks and Says Likely Cause What to Do Robot is stuck and one of the wheels is not making contact with the floor(hanging in mid-air). One beep Restart cleaning in a new location. Robot may be in an extremely large room and the bumper is not registering obstacles.
  • Page 27 Dust off the charging contact pins with a dry cloth. be charged. Check if you can hear a beep when Coredy R600 is docked onto the Charging Base. If not, contact the Coredy service center to repair or replace the Charging Base.

  • Page 28: Specifications

    Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base. Coredy R600 cannot When Coredy R600 is in the vicinity of the Charging Base （distance within 26ft/8M）, it returns more return to the Charging quickly.

  • Page 29: Customer Service

    7 Customer Service US COST FREE Tech Support: +1 (800) 999 8470 E-mail: support@coredytech.com Website: www.coredy.com UK COST FREE Tech Support: +44 (808) 134 9909 @coredytech @CoredyTech @coredy_robot_vacuum @coredytechofficial...
  • Page 30 MODEL: R600 US COST FREE Tech Support: UK COST FREE Tech Support: +44 (808) 134 9909 E-mail: support@coredytech.com +1 (800) 999 8470 Website: www.coredy.com (PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00) V2.3...
