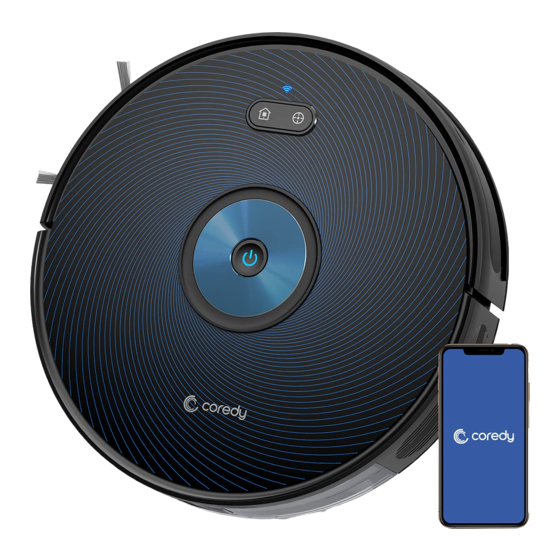

Coredy G850 Owner's Manual

Hide thumbs Also See for G850:
Table of Contents

Advertisement

Quick Links

Owner's Manual
Coredy G850

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G850 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coredy G850

Summary of Contents for Coredy G850

  • Page 1 Owner’s Manual Coredy G850...

  • Page 2: Table Of Contents

    2.5 LED Indication ....................... Operating and Programming 3.1 Notes Before Cleaning ....................3.2 Quick Start ........................3.3 Use Your G850 with the “Coredy Robot” App ............3.4 How Coredy G850 Cleans Your Home ..............3.5 Wet/Dry Mopping System ..................3.6 Cleaning Schedule .......................

  • Page 3: Important Safety Information

    Children younger than 8 years old should not use this device. The robot must be used in accordance with the directions in this Instruction Manual. Coredy Inc. cannot be held liable or responsible for any damages or injuries caused by improper use.

  • Page 4: Battery And Charging

    Do not operate the robot in areas with exposed electrical outlets in the floor. 1.2 Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert- ers will immediately void the warranty.
  • Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack is leaking, contact Coredy Customer Service for disposal. The battery pack must be removed from the robot before disposal.

  • Page 6: Product Diagram

    2 Product Diagram 2.1 Robot Wi-Fi Status Indicator Spot Cleaning Return to Charging Base Press and hold & both buttons & for 5 seconds to reset Wi-Fi Connection Start/Stop...
  • Page 7 Bumper Infrared Sensor Dust Bin Release Button Dust Bin Anti-drop Sensors Hall Sensors Charging Contacts Universal Wheel Optical Flow Sensor Side Brush Battery Pack Drive Wheels Power Switch Brush Guard Dust Bin Main Brush...

  • Page 8: Accessories

    2.2 Accessories 1 x Charging Dock 1 x Adapter 1 x Remote Control (with 2 x AAA batteries) 1 x Washable HEPA Filter 2 x Side Brushes 1 x Dust Bin and Sponge Filter 1 x Main Brush 1 x Cleaning Brush 1 x Water Tank (Sold Separately) 2 x Cleaning Cloths...

  • Page 9: Charging Dock

    2.3 Charging Dock Charging Indicator Remote Control Storage Location Signal Transmission Area Charging Contacts 2.4 Remote Control Mode and time display screen Automatic cleaning Automatic re-charging button Direction buttons Start / Pause button Clock setup button Scheduling button Spot cleaning button Edge cleaning button Small-space button Changing cleaning suction button...

  • Page 10: Led Indication

    2.5 LED Indication You can see the status of Coredy G850 Robot from the LED indicators. Light Status Status Standby / Cleaning (when not on Charging Dock) / Fully charged Solid blue Solid blue + Solid Red Low power (less than 15%) and returning to Charging Dock...

  • Page 11: Operating And Programming

    3 Operating and Programming 3.1 Notes Before Cleaning Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be pulled off of a table or shelf.

  • Page 12: Quick Start

    Install Side Brushes Note: Failure to place the remaining wire Attach Side Brushes to the bottom of Coredy G850 by pressing a into the channel, may cause Robot to brush into each slot until it clicks. become stuck while charging or cleaning.
  • Page 13 Start Cleaning Cycle Pause Press the power button once to wake up the robot. To pause the robot during a cleaning cycle press the button on robot or press the button on the Remote Control. Press the power button again to start a cleaning cycle (or button on Remote Control).

  • Page 14: Use Your G850 With The "Coredy Robot" App

    3.3 Use Your G850 with the “Coredy Robot” App To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App. Scan the QR code shown below to download the latest version of the App or download from the App Store (iOS devices) or Google Play (Android devices).
  • Page 15 Create a user account 1. Open the App and create a 2. Agree to the “Privacy Policy”. 3. Create your account with the 4. Enter verifica�on code user account. mobile phone number or E-mail address.
  • Page 16 Add Device Wi-Fi Connec�on 1. Press “Add Device” or tap the 2. Add a Coredy G850 Robot to 1. Check and set your phone Wi-Fi 5. Create a password 6-20 “+” in the top right corner to your Coredy account.
  • Page 17 2. Turn on the main power 3. Wait for the connec�on 4. When the Robot has 5. Wait 1-2 seconds for the switch on the bo�om of the Robot, progress to reach 100%. successfully connected, press Robot to go on standby. then press and hold &...
  • Page 18 The Amazon Alexa App is installed on your smart device and you If the Coredy Robot gets lost somewhere in your home, tap “Seek have created an account. Robot” in the App to find the Robot. This function is available in the App only.
  • Page 19 Using Google Assistant 6. If you add two or more Robot devices to Coredy Robot App, you can edit name for each Coredy Robot in either the Coredy App or Alexa App. A�er named, give commands by using your Robot To use your Robot with Google Assistant, please ensure the following: name.

  • Page 20: How Coredy G850 Cleans Your Home

    3.4 How Coredy G850 Cleans Your Home Cleaning Preferences Spot Cleaning Coredy G850 continues this process until it has cleaned an entire level of your home. If its battery gets low before finishing a cleaning cycle, When you select Spot Cleaning, robot intensely cleans a localized Coredy G850 returns to the Charging Dock to recharge.
  • Page 21 Select this mode only when one specific room needs to be cleaned. Make sure to confine Coredy G850 to the room by If the level of the suction power is the maximum level closing the door.
  • Page 22 Coredy G850 is used on. blocked-off area. Be careful not to damage the floor when using adhesive 1. Identify the area or item you do not want Coredy G850 to get tape. It is not recommended for use on carpets. close to.

  • Page 23: Wet/Dry Mopping System

    3.5 Wet/Dry Mopping System Coredy G850 supports wet/dry mopping function (Requires a water tank and mopping cloth, sold separately. Visit http://shop.coredy.com to purchase). The robot has a mopping system with an electronically-controlled water pump, can automatically control water flow to start/stop, offers 3 water flow levels (SMALL, AUTO, BIG), ensuring intelligent mopping cleaning for your home.
  • Page 24 (or button on Remote Control, or button on Coredy Robot App). * Robot will automatically stop the water flow when it stops mopping cleaning. * Robot cannot auto-detect and avoid carpet. Please manually relocate the robot if it travels to a carpeted area when mopping. For best...
  • Page 25 Select a Mopping Level The robot has 3 cleaning modes within the mopping cleaning Use the Coredy Robot App to select from 3 water flow levels for function: Auto, Spot and Edge. Use remote control or Coredy mopping cleaning on the different surface floor.

  • Page 26: Cleaning Schedule

    Coredy G850 has cleaning schedule settings which allow you to customize when the robot cleans your home. Schedule Cleaning from Coredy Robot App With the Coredy Robot App, you can schedule the G850 to start cleaning at any desired time from Sunday to Saturday (or certain days of the week). Note: 1.
  • Page 27 2.2 Setting Cleaning Schedule Press button on Remote Control, and Press button to select the desired And then press the button, the Robot will then the hour section begins to flash in the values. Press the button to select “BEEP” when the Cleaning Schedule setting Cleaning Schedule display setting window.

  • Page 28: Regular Robot Care

    (Sold separately) Cliff Sensors Charging Contacts Once per month Floor Tracking Sensor Front Driving Wheel Unversal Wheel Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy Customer Care for more information.

  • Page 29: Emptying Robot's Bin And Cleaning Robot's Filter

    4.1 Emptying Robot’s Bin Remove filter by grasping the white tab. and Cleaning Robot’s Filter Press dust bin release button to remove it. Open dust bin door to empty it. Shake off debris by tapping the filter against your trash container.

  • Page 30: Cleaning Robot's Water Tank And Mop Cloth (Sold Separately)

    4.2 Cleaning Robot’s Water Tank Empty the remaining water from the water tank. and Mop Cloth (Sold Separately) Press water tank release button to remove it. Use soft and dry cloth to wipe the outside of water tank, lay flat to dry. Avoid direct sunlight. Remove the cleaning mop cloth from water tank, wash and lay flat to dry.

  • Page 31: Cleaning Robot's Side Brush

    4.3 Cleaning Robot’s Side Brush Wipe the charging contacts on Robot and the Charging Base with a clean, dry cloth. Remove the brush Clean the brush and the brush stand and reinstall the brush. 4.4 Cleaning Robot’s Cliff Sensors and Charging Contacts Wipe Robot’s Cliff Sensors with a clean, dry cloth.

  • Page 32: Cleaning Robot's Floor Tracking Sensor

    4.5 Cleaning Robot’s Floor Tracking Clean the rolling brush with the provided cleaning tool or a vacuum cleaner. Sensor Use a clean, dry microfiber or soft cotton cloth to wipe any debris that has accumulated in the round sensor opening on the right side of the bottom surface.

  • Page 33: Battery And Charging Information

    If storing robot off the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement You can visit Coredy’s website http://shop.coredy.com to purchase the battery or other accessories for the robot.
  • Page 34 Battery Removal Reinstall the battery with the battery label and tabs facing up. Follow these instructions to remove and reinstall robot’s battery: Unscrew the door and the two screws on the battery door, then remove. Reinstall the battery door and the two screws. Take care not to pinch the side brush in the battery door when re-installing the battery.

  • Page 35: Troubleshooting

    5 Troubleshooting Robot will tell you something is wrong with a two-tone distress sound followed by message. The indicator will also blink, or illuminate red. Refer to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our customer service team for cost free technical assistance.
  • Page 36 Indicator Flashing Red Robot Blinks and Says Likely Cause What to Do Tap robot's bumper several times to dislodge any debris that might be trapped underneath. Two beeps Robot's bumper is stuck. Press robot's bumper 5-10 times to ensure bumper contracts freely. Clean robot's cliff sensors gently with a dry cloth.
  • Page 37 Dust off the charging contact pins with a dry cloth. be charged. Check if you can hear a beep when Coredy G850 is docked onto the Charging Base. If not, contact the Coredy service center to repair or replace the Charging Base.

  • Page 38: Specifications

    Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base. Coredy G850 cannot When Coredy G850 is in the vicinity of the Charging Base (distance within 26ft/8M), it returns more quickly. return to the Charging However, if the Charging Base is located far away (distance over 26ft/8M), Coredy G850 needs more time to Base.
  • Page 39 MODEL: G850 US COST FREE Tech Support: UK COST FREE Tech Support: E-mail: support@coredytech.com +44 (808) 134 9909 +1 (800) 999 8470 Website: http://shop.coredy.com (PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00) @coredytech @CoredyOfficial @coredy_robotvacuum @Coredy Official V1.1...
