- Page 1 Owner’s Manual Coredy R500+...
-
Page 2: Table Of Contents
2.4 Remote Control ......................Operating and Programming 3.1 Notes Before Cleaning ....................3.2 Quick Start ........................3.3 How Coredy R500+ Clean Your Home ..............3.4 Cleaning Schedule ....................... Regular Robot Care 4.1 Emptying Robot’s Bin ....................4.2 Cleaning Robot’s Filter .................... -
Page 3: Important Safety Information
The robot must be used in accordance with the directions in this Instruction Manual. Coredy inc cannot be held liable or responsible for any damages or injuries caused by improper use. -
Page 4: Battery And Charging
Do not operate the robot in areas with exposed electrical outlets in the floor. 1.2 Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power converters will immediately void the warranty. - Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack is leaking, contact Coredy Customer Service for disposal. The battery pack must be removed from the robot before disposal.
-
Page 6: Product Diagram

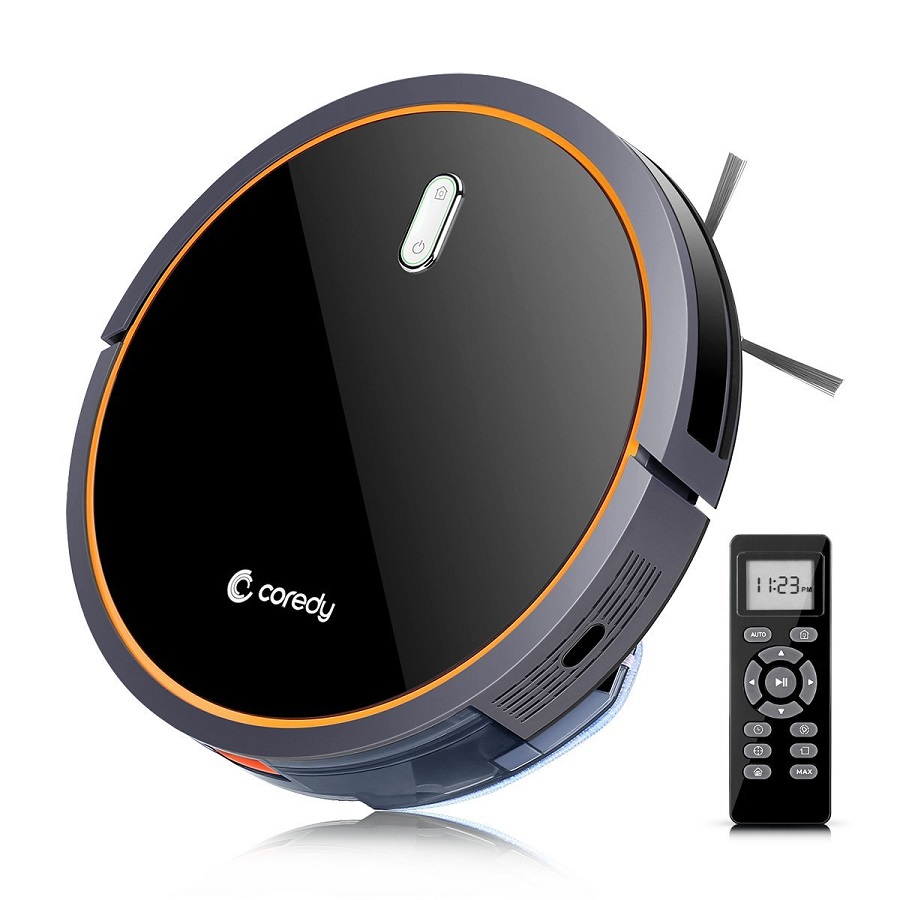

2 Product Diagram 2.1 Robot Dock Button To send R500+ Robot back to the Charging Dock, press on robot or press the on Remote Control. Indicator Indicator Lights Pink: Low Battery Indicator Blinks Pink: Charging Indicator Lights Blue: Full Charging/ Standby Mode/ Cleaning Indicator Lights or Blinks Red: Troubleshooting Power On / Cleaning Press and Hold On to Power On or Power Off... - Page 7 Anti-Collision Sensors Anti-Drop Sensors Charging Contacts Universal Wheel Side Brushes Battery Pack Driving Wheels Power Switch Dust Bin Main Brush...
-
Page 8: Accessories
2.2 Accessories Charging Dock Adapter Remote Control (with batteries) Sponge Filter and Dust Bin 4 x Side Brushes High Efficiency Filter Brush Main Brush... -
Page 9: Charging Dock
2.3 Charging Dock Location for remote control Charging indicator Signal transmission area Butting charging pole piece... -
Page 10: Remote Control
2.4 Remote Control Mode and time display screen Automatic cleaning Automatic re-charging button Direction buttons Start / Pause button Clock setup button Scheduling button Spot cleaning button Edge cleaning button Small-space button Max vacuuming cleaning button... -
Page 11: Operating And Programming
3 Operating and Programming 3.1 Notes Before Cleaning Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf. -
Page 12: Quick Start
Install Side Brushes into the trunking, may cause Robot to become stuck while charging or cleaning. Attach Side Brushes to the bottom of Coredy R500+ by pressing a brush into each slot until it clicks. Place the Charging Dock on a hard Activate the Robot level surface and against a wall. - Page 13 Pause Start Cleaning Cycle Press the power button once to wake up the robot. To pause the robot during a cleaning cycle press the button on robot or press the button on the Remote Control. Press the power button again to start a cleaning cycle (or button on Remote Control).
-
Page 14: How Coredy R500+ Clean Your Home
1. Attach the cloth and fill the water tank with water. Auto Cleaning At the start of a cleaning cycle, Coredy R500+ will clean your home efficiently. At various times throughout the cleaning cycle, Coredy R500+ touches up around the edges of the room, as well as chair legs and other furniture. - Page 15 30 minutes. Select this mode only when one specific room needs Max Vacuuming Cleaning to be cleaned. Make sure to confine Coredy R500+ to the room by Robot increases its vacuum power to provide a deeper clean when closing the door.
- Page 16 Be careful not to damage the floor when using adhesive tape. It is not recommended for use on carpets. 1. Identify the area or item you do not want Coredy R500+ to get close to. Keep the Boundary Strip away from objects that emit 2.
-
Page 17: Cleaning Schedule
3.4 Cleaning Schedule Coredy R500+ has cleaning schedule settings which allow you to customize when Robot cleans your home. These settings are available only through the Remote Control. Note: Please make sure the Remote Control near by the Robot while setting the Clock or Schedule. - Page 18 Setting Cleaning Schedule Press button on Remote Control, and Press button to select the desired And then press the button, the Robot will then the hour section begins to flash in the figures. Press the button to select “BEEP” when the Cleaning Schedule setting Cleaning Schedule display setting window.
-
Page 19: Regular Robot Care
After each use Front Caster Wheel Side Brush Once per month Cliff Sensors Charging Contacts Floor Tracking Sensor Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy Customer Care for more information. -
Page 20: Emptying Robot's Bin
4.1 Emptying Robot’s Bin 4.2 Cleaning Robot’s Filter Remove filter by grasping the white tab. Press bin release button to remove bin. Open bin door to empty bin. Shake off debris by tapping the filter against your trash container. -
Page 21: Cleaning Robot's Side Brush
4.3 Cleaning Robot’s Side Brush Wipe the charging contacts on Robot and the Charging Base with a clean, dry cloth. Remove the brush Clean the brush and the brush post, and reinstall the brush. 4.4 Cleaning Robot’s Cliff Sensors and Charging Contacts Wipe Robot’s Cliff Sensors with a clean, dry cloth. -
Page 22: Cleaning Robot's Floor Tracking Sensor
4.5 Cleaning Robot’s Floor Tracking Clean the rolling brush with the provided cleaning tool or a vacuum cleaner. Sensor Use a clean, dry microfiber or soft cotton cloth to wipe any debris that has accumulated in the round sensor opening on the right side of the bottom surface. -
Page 23: Battery And Charging Information
If storing robot off of the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement You can visit Coredy’s website www.coredy.com to purchase the battery or other accessories for the robot. - Page 24 Battery Removal Reinstall the battery with the battery label and tabs facing up. Follow these instructions to remove and reinstall robot’s battery: Unscrew the door and the two screws on the battery door, then remove. Reinstall the battery door and the two screws. Take care not to pinch the side brush in the battery door when re-installing the battery.
-
Page 25: Troubleshooting
5 Troubleshooting Robot will tell you something is wrong with a two-tone distress sound followed by message. The indicator will also blink or lit red. Refer to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our COST FREE customer service team for more assistance. - Page 26 Indicator Flashing Red Robot Blinks and Says Likely Cause What to Do Robot is stuck and one of the wheels is not making contact with the floor(hanging in mid-air). One beep Restart cleaning in a new location. Robot may be in an extremely large room and the bumper is not registering obstacles.
- Page 27 Check if the filters are wet due to water or other liquid on the floor. Air-dry the filters completely before use. Check if the indicator on the Charging Base lights up. If not, contact the Coredy service center to repair or replace the Charging Base.
-
Page 28: Specifications
When Coredy R500+ is in the vicinity of the Charging Base, it will return more quickly. However, if the return to the Charging Charging Base is located far away, Coredy R500+ will need more time to return. Please be patient as it works Base. -
Page 29: Customer Service
7 Customer Service US COST FREE Tech Support: +1 (800) 999 8470 E-mail: support@coredytech.com Website: www.coredy.com UK COST FREE Tech Support: +44 (808) 134 9909 @coredytech @CoredyTech @coredy_robot_vacuum @coredytechofficial... - Page 30 MODEL: R500+ US COST FREE Tech Support: UK COST FREE Tech Support: +44 (808) 134 9909 E-mail: support@coredytech.com +1 (800) 999 8470 Website: www.coredy.com (PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00) V2.1...
