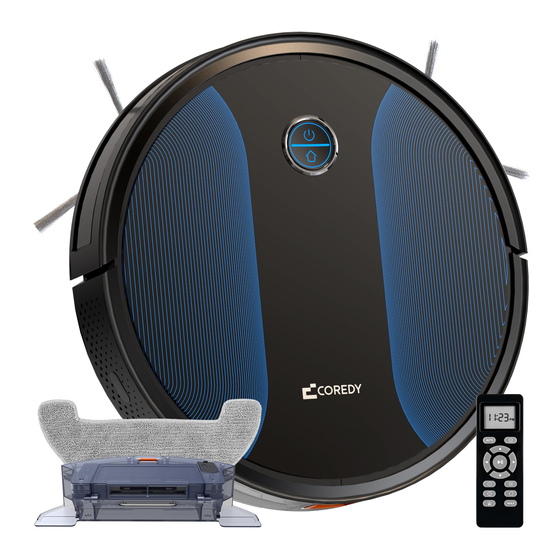

  • Page 1 Owner’s Manual R650 Ultra...

  • Page 2: Table Of Contents

    Important Safety Information About Your Robot Use Your Robot Care and Maintenance Troubleshooting Specifications Thank you for purchasing Coredy robot vacuum cleaner, please carefully read all instructions before using this robot, and keep this user manual properly for future reference.

  • Page 3: Important Safety Information

    Children younger than 8 years old should not use this device. The robot must be used in accordance with the directions in this Instruction Manual. Coredy Inc. cannot be held liable or responsible for any damages or injuries caused by improper use.
  • Page 4 Do not operate the robot in areas with exposed electrical outlets in the floor. Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert- ers will immediately void the warranty.
  • Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack is leaking, contact Coredy Customer Service for disposal. The battery pack must be removed from the robot before disposal.

  • Page 6: About Your Robot

    About Your Robot Robot a. Top & Side Press and hold for 3 seconds to turn on or off Press to start Auto Cleaning Press to pause current cleaning task Press to return the robot to the charging dock Press again to pause Press and hold both buttons for 5 seconds to reset Wi-Fi connection Recharge Button Power Button...
  • Page 7 b. Bottom Cliff Sensors Charging Contact Pins Universal Wheel Side Brushes Battery Compartment Left/Right Wheel Rolling Brush Guard On/Off Rolling Brush Dust Bin c. Dustbin Release Button Suction Inlet...
  • Page 8 d. Charging Dock Status Light Charging Contact Pins Power Socket Power Cord Storage Compartment...
  • Page 9 e. Remote Control Mode and time display screen Automatic cleaning Automatic re-charging button Direction buttons Start / Pause button Clock setup button Scheduling button Spot cleaning button Edge cleaning button Random cleaning button Changing cleaning suction button Install 2 AAA batteries (included in the package) before using the remote control.
  • Page 10 Accessories Charging Dock Adapter Remote Control Side Brush Dustbin Rolling Brush Cleaning Tool...
  • Page 11 Indication Light Status Status Solid Blue Turn On/ Standby/ Cleaning/ Pause/Return to Charge Breathing Blue Charging Error Turn Off/ Sleep Wi-Fi Status Light Status Rapidly Flashing Blue Waiting for connection Slowly Flashing Blue Wi-Fi Pairing Solid Blue Wi-Fi connected...

  • Page 12: Use Your Robot

    Use Your Robot Notes Before Cleaning Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be pulled off of a table or shelf.
  • Page 13 Prepare Your Robot Place Charging Dock 1. Remove the protective form before use. 1. Place the charging dock on a hard, level surface and 2. Install the side brushes. against a wall. 3. Turn on the main power switch on the bottom of the robot. 2.Ensure the charging dock is in an open and uncluttered area leaving at least: - 6ft/2m in the front of the charging dock.
  • Page 14 Press on robot or on the remote control first use. to start a cleaning cycle in Auto Mode. Press on robot or on the remote control to stop cleaning. You can also start or stop cleaning via Coredy Robot app.
  • Page 15 Connect with Coredy App start cleaning in Auto Cleaning mode. Open the app and create a user account, and then follow the instructions to add your R650 Ultra robot. (Refers to “App Installation Guide” for detailed guidance.)
  • Page 16 Remote Control to switch suction localized area by spiraling outward about 3 feet (1 meter) power level, or select a suction power level in the Coredy in diameter and then spiraling inward to where it started. Robot app according to your needs:...
  • Page 17 Manual Cleaning After robot finishes cleaning the open areas of your floor, You can direct R650 Ultra to clean a particular area by it uses Edge Clean to ensure that it has cleaned along using the directional buttons on the remote control or walls and around furniture legs for a thorough clean.
  • Page 18 R650 Ultra to clean. R650 Ultra will recognize the Boundary Strip and will not cross into the blocked-off area. 1. Identify the area or item you do not want R650 Ultra to Coredy Robot get close to.
  • Page 19 2. Remove the Dustbin from the robot. Wet-Dry Mop Cleaning Water tank and mopping cloth are sold separately. Coredy R650 Ultra has a mopping system with an electronically-controlled water pump, can automatically control water flow to start/stop, offers 3 water flow levels,...
  • Page 20 4. Select a mopping level to start mopping. 6. Put the Dustbin back into the robot. Use the Coredy Robot App to select from 3 water flow levels for mopping cleaning on the different surface floor. After mopping, remove the water tank, empty any remaining water and clean the mopping cloth to prevent mildew or unpleasant smells.
  • Page 21 Coredy R650 Ultra has cleaning schedule settings which allow you to customize when the robot cleans your home. 1. Schedule Cleaning from Coredy Robot App With the Coredy Robot App, you can schedule the R650 Ultra to start cleaning at any desired time from Sunday to Saturday (or certain days of the week).
  • Page 22 Setting Cleaning Schedule Press button on Remote Control, and Press button to select the desired And then press the button, the Robot will then the hour section begins to flash in the values. Press the button to select “BEEP” when the Cleaning Schedule setting Cleaning Schedule display setting window.

  • Page 23: Care And Maintenance

    Every 12 months Mopping Cloth After each use Every 3~6 months (or when visibly worn) Cliff Sensors Charging Contact Pins Once each week Caster Wheel Driving Wheels If you need replacement parts/accessories, please contact Coredy Customer Care for more information.
  • Page 24 Dustbin and Filter 1. Press the release button to pull the dustbin out. 2. Open and empty the dustbin. 3. Open the filter cover and take out the filter compartment. 4. Remove filter net and take out the filter. 5. Shake off debris by tapping the filter against your trash container. Be sure to thoroughly air-dry all the parts before reassembling.
  • Page 25 Water Tank Water tank and mopping cloth are sold separately. 1. Press the release button to pull the water tank out. 2. Remove the mopping cloth from water tank, wash and lay flat to dry. 3. Empty the remaining water from the water tank. 4.
  • Page 26 Side Brush 1.Remove the side brushes. 2.Clean and remove foreign substances such as hair, string wrapped between the robot and the side brushes. 3.Reinstall the side brushes. Rolling Brush 1.Pinch the brush frame release tab, lift the tab, and remove the brush guard. 2.Remove the rolling brush from the robot.
  • Page 27 Sensor and Charging Contact Pins Clean the sensors and charging contacts regularly using a soft cloth.
  • Page 28 If storing robot off the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement You can visit Coredy’s website http://shop.coredy.com to purchase the battery or other accessories for the robot.
  • Page 29 Battery Removal 2. Reinstall the battery with the battery label and tabs facing up. Follow these instructions to remove and reinstall robot’s battery: 1. Unscrew the door and the two screws on the battery door, then remove. 3. Reinstall the battery door and the two screws. Take care not to pinch the side brush in the battery door when re-installing the battery.

  • Page 30: Troubleshooting

    Troubleshooting Refer to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our COST FREE customer service team for more assistance. Rebooting Instructions For some errors, rebooting Robot may resolve the problem. To reboot Robot, press the power switch on the bottom on Robot, you will hear an audible tone signifying a successful reboot.
  • Page 31 Flashing Red Indicator Light Sound Cause What to Do One Beep Dustbin is not installed. Check if dustbin Two Beeps Bumper may be stuck. Clean the side brush then restart the robot. Clean robot's cliff sensors gently with a dry cloth. Robot's cliff sensors are dirty.
  • Page 32 Dust off the charging contact pins with a dry cloth. cannot be charged. Check if you can hear a beep when Coredy R650 Ultra is docked onto the Charging Base. If not, contact the Coredy service center to repair or replace the Charging Base.

  • Page 33: Specifications

    Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base. Coredy R650 Ultra When Coredy R650 Ultra is in the vicinity of the Charging Base (distance within 26ft/8M), it returns more cannot return to the quickly.
  • Page 34 CONTACT US support@coredytech.com h�p://shop.coredy.com (US) +1-800-999-8470 (UK) +44-808-134-9909 (DE) +49 800 000 9581 (AU) +61 39 917 5657 @CoredyOfficial @CoredytechOfficial @coredylife V1.0...
