Summary of Contents for Coredy L900

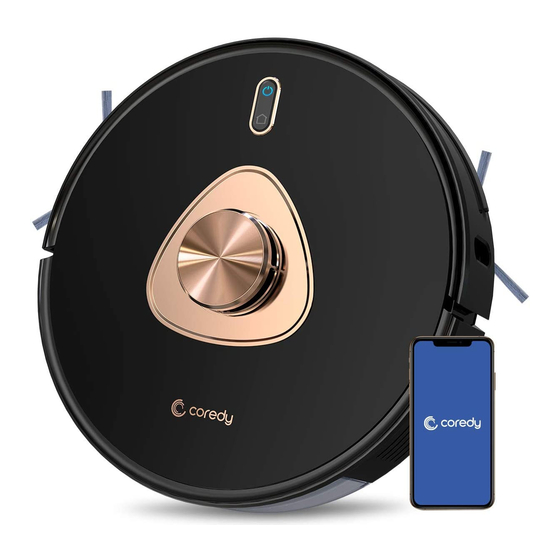

- Page 1 Owner’s Manual Coredy L900 Robot...
-
Page 2: Table Of Contents
3.1 Important Tips Before Use ..................3.2 Map Navigation and Management................3.3 Quick Start ........................3.4 Use Your Coredy L900 Robot with the “Coredy Robot” APP......3.5 How Coredy L900 Robot Clean Your Home ............3.6 Use Mopping System .................... -
Page 3: Use Restrictions
The robot must be used in accordance with the directions in this Instruction Manual. Coredy Inc. cannot be held liable or responsible for any damages or injuries caused by improper use. -
Page 4: Battery And Charging
Do not operate the robot in areas with exposed electrical outlets in the floor. 1.2 Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert- ers will immediately void the warranty. - Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack is leaking, contact Coredy Customer Service for disposal. The battery pack must be removed from the robot before disposal.
-
Page 6: Product Diagram
Press to start Auto cleaning Wi-Fi status light Press to pause the current task when working Press to return Coredy L900 Robot to the Charging Dock; press again to pause Press and hold both buttons for 5 seconds to active Wi-Fi... - Page 7 Laser Distance Sensor (LDS) Bumper Infrared Sensor Reset Button Dust Bin Release Button Dust Bin Anti-Drop Sensors Charging Contacts Universal Wheel Side Brushes Driving Wheels Brush Guard Dust Bin Rolling Brush...
-
Page 8: Accessories
2.2 Accessories 1 x Charging Dock 1 x Adapter 4 x Side Brushes 1 x Cleaning Brush 1 x Dust Bin 1 x Rolling Brush High-performance filter Foam filter 1 x Washable HEPA Filter... -
Page 9: Charging Dock
2.3 Charging Dock Charging Indicator Signal Transmission Area Charging Contacts... -
Page 10: Led Indication
2.4 LED Indication You can see the status of Coredy L900 Robot from the LED indicators. & Status (Light Status) Solid blue Standby / Cleaning / Fully charged Solid purple Returning to Charging Dock Breathing purple Charging Error indication (along with voice prompts) Rapidly flashing red Refer to the "Troubleshooting>Voice Alert"... -
Page 11: Operating And Programming
Remove power cords and small objects from the floor that may entangle Coredy L900 Robot. b. Fold tasseled edges of area rugs underneath to prevent tangling Coredy L900 Robot. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they may cause Coredy L900 Robot to malfunction. - Page 12 Keep Coredy L900 Robot away from wet areas during cleaning. Coredy L900 Robot may climb on top of objects less than 0.67 in/17 mm in height (the height will be reduced if the mopping module is installed). Remove these objects if possible.
-
Page 13: Map Navigation And Management
1. open your doors for Coredy L900 Robot to map each room; The cleaning paths are planned along the walls, following a 2. remove any objects that may be in the way or get Coredy bow-shaped cleaning method to complete the cleaning of L900 Robot stuck. -
Page 14: Quick Start
Robot to become stuck while charging or cleaning. Activate the Robot Place Coredy L900 Robot onto the Charging Dock, making sure the metal charging contacts on the Charging Dock match up with those underneath the robot. - Page 15 To pause the robot during a cleaning cycle press the Press the power button and hold on about 3 seconds button on robot. to wake up the Coredy L900 Robot. To resume the cleaning cycle, press button again. Press the power button again to start a cleaning cycle.
-
Page 16: Use Your Coredy L900 Robot With The "Coredy Robot" App
3.4 Use Your Coredy L900 Robot with the “Coredy Robot” APP To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App. Scan the QR code as below to download the latest version of App or download from the App Store (iOS devices) or Google Play (Android devices). - Page 17 Create A User Account 1. Open the App and create a 2. Agree the “Privacy Policy”. 3. Create your account with 4. Enter verification code. user account. the mobile phone number or E-mail address.
- Page 18 Add Device Wi-Fi Connection 1. Press “Add Device” or tap 2. Add a Coredy L900 Robot 1. Select the network you want 5. Set your password with the “+” in the top right to your Coredy account. Robot to use. You need to 6-20 characters.
- Page 19 2. Press and hold the power 3. Press "Go to Connect", to 4. Select the hotspot 5. Wait 1-2 seconds for the and recharge both button connect the mobile phone "CoredyRobot-XXXX" of connecting until "100%". on the Robot around 5 to the device's hotspot.
- Page 20 Press and hold the & button simultaneously for 5 seconds on Coredy L900 Robot to reset the Wi-Fi connection. You will hear a voice prompt when the Wi-Fi connection has been reset, and the Wi-Fi status light will slowly flash purple.
- Page 21 After connecting successfully, you can control Coredy in the App only. L900 Robot with the App, you can select cleaning at your desired suction level, schedule cleaning, view the cleaning map, edit room to clean or set up "No-Go" area, check the network connection status, and access additional features.
- Page 22 Meanwhile, a particular 3. Edit Room 4. Edit No-Go Zone 5. Reset the map zone can be cleaned In the Coredy App, you In the Coredy App, you In the Coredy App, where according to the timetable can name the room of...
- Page 23 6. If you add two or more Robot devices to Coredy Robot Using Amazon Alexa App, you can edit name for each Coredy robot on Coredy App or Alexa, they're Synchronous. After named, giving a command by using your robot name. Examples, named Follow the instructions to control your Coredy device with "Robot 1":...
- Page 24 "OK Google, find Coredy L900" "OK Google, go home Coredy L900" 5. If you add two or more Robot devices to Coredy Robot App, you can edit name for each Coredy robot on Coredy App or Alexa, they're Synchronous. After named, giving a command by using your robot name.
-
Page 25: How Coredy L900 Robot Clean Your Home
In this mode, set up a cleaning zone in the Coredy Robot App. Coredy L900 Robot will clean this zone Coredy L900 Robot continues this process until it has cleaned an only and return to the Charging Dock after cleaning. - Page 26 Reset the Robot You can reset the system if there is no response when pressing any button on Coredy L900 Robot. 1. Make sure Coredy L900 Robot is not on the Charging Dock. Edit No-Go Area or Virtual Wall (available on 2.
-
Page 27: Use Mopping System
3.6 Use Mopping System Attach the mopping cloth to the water tank and fill the water tank with water. Coredy L900 supports wet/dry mopping function (water tank and mopping cloth sold separately), the robot has a mopping system with an electronically-controlled water... - Page 28 Select a cleaning mode to start mopping cleaning. Although water release is stopped when mopping Coredy L900 automatically sweeps and mops in the cleaning is paused, the mopping cloth will still be default suction level and mopping water level. wet, be careful not to keep robot in one location for...
-
Page 29: Regular Robot Care
Every 12 months Cliff Sensors Charging Contacts Once per week Floor Tracking Sensor Front Driving Wheel Unversal Wheel Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy Customer Care for more information. -
Page 30: Empty Robot's Dust Bin
4.1 Empty Robot's Dust Bin 4.2 Clean Robot's Filter Remove filter by grasping the white tab. Press dust bin release button to remove it. Open dust bin door to empty it. Shake off debris by tapping the filter against your trash container. -
Page 31: Clean Robot's Side Brush
4.3 Clean Robot's Side Brush Wipe the charging contacts on Robot and the Charging Dock with a clean, dry cloth. Remove the brush. Clean the brush and the brush stand, and reinstall the brush. 4.4 Clean Robot's Cliff Sensors and Charging Contacts Wipe Robot’s Cliff Sensors with a clean, dry cloth. -
Page 32: Clean Robot's Floor Tracking Sensor
4.5 Clean Robot's Floor Tracking Clean the rolling brush with the provided cleaning tool or a vacuum cleaner. Sensor Use a clean, dry microfiber or soft cotton cloth to wipe any debris that has accumulated in the round sensor opening on the right side of the bottom surface. Do not spray cleaning solution directly into the sensor entrance. -
Page 33: Battery And Charging Information
If storing robot off of the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement You can visit Coredy’s website http://shop.coredy.com to purchase the battery or other accessories for the robot. -
Page 34: Troubleshooting
When Coredy L900 Robot is in the vicinity of the Charging Dock, it will return more quickly. However, if the cannot return to the Charging Dock is located far away, Coredy L900 Robot will need more time to return. Please be patient as it works Charging Dock. - Page 35 Check whether you have installed the Amazon Alexa App onto your smart device and enabled “Smart Life” You cannot control Skill in the Amazon Alexa App. For details, refer to the “Smart Integrations” page in the Coredy Robot App. Coredy L900 Robot Make sure you have a Coredy Robot account and that it is connected to Coredy L900 Robot.
- Page 36 Voice Alert When Coredy L900 Robot encounters a problem, the red indicator on Coredy L900 Robot will be flashing and you will hear the relevant voice prompts. Follow the voice prompts to solve the problems. Voice Prompt Cause and Solution Front bumper is stuck.
- Page 37 Voice Prompt Cause and Solution Put the dust collector and filter back in and confirm that they are in place. Then restart Error 13: Please insert dust collector and filter. the device. Error 14: Restricted area detected. Move Device is too close to the restricted area. Move the device to a new position and try again. device to a different area.
- Page 38 Voice Prompt Cause and Solution Error S3: Side Brush Error. Refer to Owner's - Check whether the side brush is stuck in an unknown object before restarting the device. Manual or App for help. - If the issue persists, contact customer support for help. - Check whether the fan blades are stuck in an unknown object before restarting the Error S4: Suction Fan Error.
-
Page 39: Wi-Fi Connection
- Your Wi-Fi router supports 802.11b/g/n and IPv4 protocol. - You are using a 2.4GHz router or a dual-band router that If you cannot control Coredy L900 Robot with your smart- is configured to support a 2.4GHz frequency band. phone, try the solutions below to solve the problem. If the Coredy L900 Robot does not support 5GHz frequency band. -
Page 40: Specifications
7 Specifications Product Model L900 Input 24 V 1.2A Battery Voltage DC 14.4 V Power Consumption 50 W DC 14.4 V Battery Type Li-ion 5200 mAh Dust Collector Capacity 0.5 L Cleaning Time Max. 200 mins Charging Time 240 - 300 mins... -
Page 41: Customer Service
8 Customer Service US COST FREE Tech Support: +1 (800) 999 8470 E-mail: support@coredytech.com Website: http://shop.coredy.com UK COST FREE Tech Support: +44 (808) 134 9909 @CoredyOfficial @CoredyOfficial @coredy_robotvacuum @Coredy Official... - Page 42 MODEL: L900 US COST FREE Tech Support: UK COST FREE Tech Support: +44 (808) 134 9909 E-mail: support@coredytech.com +1 (800) 999 8470 Website: http://shop.coredy.com (PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00) V1.2...
