Owner's Manual

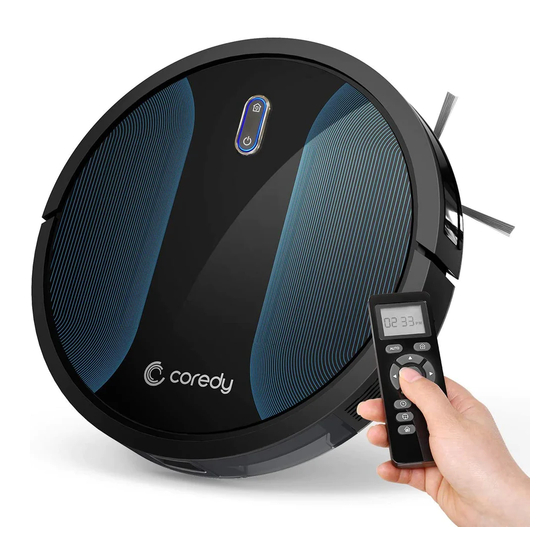

Coredy R550 (R500+ )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R550 and is the answer not in the manual?

Questions and answers

dave ellis
March 6, 2025

hi can i buy a copy already printed please, my printer has packed in.

0

Subscribe to Our Youtube Channel

Related Manuals for Coredy R550

Summary of Contents for Coredy R550

  • Page 1 Owner’s Manual Coredy R550 (R500+ )

  • Page 2: Table Of Contents

    2.4 Remote Control ......................Operating and Programming 3.1 Notes Before Cleaning ....................3.2 Quick Start ........................3.3 How Coredy R550 Clean Your Home ..............3.4 Cleaning Schedule ....................... Regular Robot Care 4.1 Emptying Robot’s Bin ....................4.2 Cleaning Robot’s Filter ....................

  • Page 3: Important Safety Information

    The robot must be used in accordance with the directions in this Instruction Manual. Coredy inc cannot be held liable or responsible for any damages or injuries caused by improper use.

  • Page 4: Battery And Charging

    Do not operate the robot in areas with exposed electrical outlets in the floor. 1.2 Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert- ers will immediately void the warranty.
  • Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack is leaking, contact Coredy Customer Service for disposal. The battery pack must be removed from the robot before disposal.

  • Page 6: Product Diagram

    2 Product Diagram 2.1 Robot Dock Button To send R550 (R500+ ) Robot back to the Charging Dock, press on robot or press the on Remote Control. Indicator Indicator Light Pink: Low Power Indicator Blink Pink: Charging Indicator Light Blue: Full Charging/ Standby Mode/ Cleaning...
  • Page 7 Bumper Infrared Sensor Dust Collector Release Button Dust Collector Anti-Drop Sensors Charging Contacts Universal Wheel Side Brushes Battery Pack Driving Wheels Power Switch Main Brush Dust Bin...

  • Page 8: Accessories

    2.2 Accessories 1 x Charging Dock 1 x Adapter 1 x Remote Control (with 2 x AAA battery) 1 x High Efficiency Filter 1 x Dust Bin 4 x Side Brushes 1 x Brush 1 x Main Brush Water Tank and Cleaning Cloth (Sold Separately)

  • Page 9: Charging Dock

    2.3 Charging Dock Charging indicator Location for remote control Signal transmission area Butting charging pole piece...

  • Page 10: Remote Control

    2.4 Remote Control Mode and time display screen Automatic cleaning Automatic re-charging button Direction buttons Start / Pause button Clock setup button Scheduling button Spot cleaning button Edge cleaning button Small-space button Max vacuuming cleaning button...

  • Page 11: Operating And Programming

    3 Operating and Programming 3.1 Notes Before Cleaning Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf.

  • Page 12: Quick Start

    Failure to place the remaining wire into the trunking, may cause Robot to Attach Side Brushes to the bottom of Coredy R550 (R500+ ) by become stuck while charging or cleaning. pressing a brush into each slot until it clicks.
  • Page 13 Start Cleaning Cycle Pause Press the power button once to wake up the robot. To pause the robot during a cleaning cycle press the button on robot or press the button on the Remote Control. Press the power button again to start a cleaning cycle (or button on Remote Control).

  • Page 14: How Coredy R550 Clean Your Home

    3.3 How Coredy R550 Clean Your Home Floor Mopping Cleaning Coredy R550 (R500+ ) continues this process until it has cleaned an Coredy R550 (R500+ ) support wet mopping function ( Required a entire level of your home. If its battery gets low before finishing a cleaning water tank,you can shop on http://shop.coredy.com ) the robot can...
  • Page 15 30 minutes. Select this mode only when one specific room Max Vacuuming Cleaning needs to be cleaned. Make sure to confine Coredy R550 (R500+ ) to Robot increases its vacuum power to provide a deeper clean when the room by closing the door.
  • Page 16 With the Boundary Strip, you can keep Coredy R550 (R500+ ) away Boundary Strip may not work well. from any area or item you do not want Coredy R550 (R500+ ) to Make sure the Boundary Strip is placed on the same clean.

  • Page 17: Cleaning Schedule

    3.4 Cleaning Schedule Coredy R550 (R500+ ) has cleaning schedule settings which allow you to customize when Robot cleans your home. These settings are available only through the Remote Control. Note: 1. Make sure the time is set correctly to your local time before setting a cleaning schedule.
  • Page 18 Setting Cleaning Schedule Press button on Remote Control, and Press button to select the desired And then press the button, the Robot will then the hour section begins to flash in the figures. Press the button to select “BEEP” when the Cleaning Schedule setting Cleaning Schedule display setting window.

  • Page 19: Regular Robot Care

    Dust Bin Cliff Sensors Charging Contacts Floor Tracking Sensor Once per month Front Driving Wheel Unversal Wheel Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy Customer Care for more information.

  • Page 20: Emptying Robot's Bin

    4.1 Emptying Robot’s Bin 4.2 Cleaning Robot’s Filter Press dust bin release button to remove it. Remove filter by grasping the white tab. Open dust bin door to empty it. Shake off debris by tapping the filter against your trash container.

  • Page 21: Cleaning Robot's Side Brush

    4.3 Cleaning Robot’s Side Brush Wipe the charging contacts on Robot and the Charging Base with a clean, dry cloth. Remove the brush Clean the brush and the brush stand, and reinstall the brush. 4.4 Cleaning Robot’s Cliff Sensors and Charging Contacts Wipe Robot’s Cliff Sensors with a clean, dry cloth.

  • Page 22: Cleaning Robot's Floor Tracking Sensor

    4.5 Cleaning Robot’s Floor Tracking Clean the rolling brush with the provided cleaning tool or a vacuum cleaner. Sensor Use a clean, dry microfiber or soft cotton cloth to wipe any debris that has accumulated in the round sensor opening on the right side of the bottom surface.

  • Page 23: Battery And Charging Information

    If storing robot off of the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement You can visit Coredy’s website http://shop.coredy.com to purchase the battery or other accessories for the robot.
  • Page 24 Battery Removal Reinstall the battery with the battery label and tabs facing up. Follow these instructions to remove and reinstall robot’s battery: Unscrew the door and the two screws on the battery door, then remove. Reinstall the battery door and the two screws. Take care not to pinch the side brush in the battery door when re-installing the battery.

  • Page 25: Troubleshooting

    5 Troubleshooting Robot will tell you something is wrong with a two-tone distress sound followed by message. The indicator will also blink or lit red. Refer to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our COST FREE customer service team for more assistance.
  • Page 26 Indicator Flashing Red Robot Blinks and Says Likely Cause What to Do Tap robot's bumper several times to dislodge any debris that might be trapped underneath. Two beeps Robot's bumper is stuck. Press robot's bumper 5-10 times to ensure bumper contracts freely. Clean robot's cliff sensors gently with a dry cloth.
  • Page 27 Dust off the charging contact pins with a dry cloth. cannot be charged. Check if you can hear a beep when Coredy R550 (R500+ ) is docked onto the Charging Base. If not, contact the Coredy service center to repair or replace the Charging Base.

  • Page 28: Specifications

    Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base. Coredy R550 (R500+ ) When Coredy R550 (R500+ ) is in the vicinity of the Charging Base （distance within 26ft/8M）, it returns cannot return to the more quickly.

  • Page 29: Customer Service

    7 Customer Service US COST FREE Tech Support: +1 (800) 999 8470 E-mail: support@coredytech.com Website: http://shop.coredy.com UK COST FREE Tech Support: +44 (808) 134 9909 @coredytech @CoredyOfficial @coredy_robotvacuum @Coredy Official...
  • Page 30 MODEL: R550 (R500+ ) US COST FREE Tech Support: UK COST FREE Tech Support: +44 (808) 134 9909 E-mail: support@coredytech.com +1 (800) 999 8470 Website: http://shop.coredy.com (PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00) V2.8...
