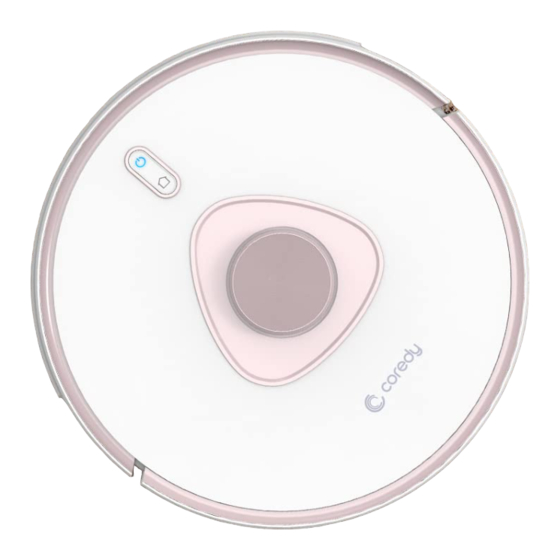

  • Page 1 Owner’s Manual Coredy L900W Robot...

  • Page 2: Table Of Contents

    3.1 Important Tips Before Use ..................3.2 Map Navigation and Management................3.3 Quick Start ........................3.4 Use Your Coredy L900W Robot with the “Coredy Robot” APP......3.5 How Coredy L900W Robot Clean Your Home ............3.6 Use Mopping System ....................

  • Page 3: Use Restrictions

    The robot must be used in accordance with the directions in this Instruction Manual. Coredy inc cannot be held liable or responsible for any damages or injuries caused by improper use.

  • Page 4: Battery And Charging

    Do not operate the robot in areas with exposed electrical outlets in the floor. 1.2 Battery and Charging Use only rechargeable battery packs with the correct specification approved by Coredy. Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert- ers will immediately void the warranty.
  • Page 5 Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs. If the battery pack is leaking, contact Coredy Customer Service for disposal. The battery pack must be removed from the robot before disposal.

  • Page 6: Product Diagram

    Press to start Auto cleaning Wi-Fi status light Press to pause the current task when working Press to return Coredy L900W Robot to the Charging Dock; press again to pause Press and hold both buttons for 5 seconds to active Wi-Fi...
  • Page 7 Laser distance sensor (LDS) Bumper Infrared Sensor Reset Button Dust Bin Release Button Dust Bin Anti-Drop Sensors Charging Contacts Universal Wheel Side Brushes Driving Wheels Brush Guard Dust Bin Rolling Brush...

  • Page 8: Accessories

    2.2 Accessories 1 x Charging Dock 1 x Adapter 4 x Side Brushes 1 x Cleaning Brush 1 x Dust Bin 1 x Rolling Brush High-performance filter Foam filter 1 x Washable HEPA Filter...

  • Page 9: Charging Dock

    2.3 Charging Dock Charging indicator Signal transmission area Butting charging pole piece...

  • Page 10: Led Indication

    2.4 LED Indication You can see the status of Coredy L900W Robot from the LED indicators. & Status (Power Status Lights) Standby / Cleaning (when not on Charging Dock) Solid blue Fully charged Solid purple Low power and returning to Charging Dock...

  • Page 11: Operating And Programming

    Remove power cords and small objects from the floor that may entangle Coredy L900W Robot. b. Fold tasseled edges of area rugs underneath to prevent tangling Coredy L900W Robot. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they may cause Coredy L900W Robot to malfunction.
  • Page 12 Keep Coredy L900W Robot away from wet areas during cleaning. e. Coredy L900W Robot may climb on top of objects less than 0.67 in/17 mm in height (the height will be reduced if the mopping module is installed). Remove these objects if possible.

  • Page 13: Map Navigation And Management

    1. open your doors for Coredy L900W Robot to map each room; The cleaning paths are planned along the walls, following a 2. remove any objects that may be in the way or get Coredy bow-shaped cleaning method to complete the cleaning of L900W Robot stuck.

  • Page 14: Quick Start

    Robot to become stuck while charging or cleaning. Activate the Robot Place Coredy L900W Robot onto the Charging Dock, making sure the metal charging contacts on the Charging Dock match up with those underneath the robot.
  • Page 15 To pause the robot during a cleaning cycle press the Press the power button and hold on about 3 seconds button on robot. to wake up the Coredy L900W Robot. To resume the cleaning cycle, press button again. Press the power button again to start a cleaning cycle.

  • Page 16: Use Your Coredy L900W Robot With The "Coredy Robot" App

    3.4 Use Your Coredy L900W Robot with the “Coredy Robot” APP To enjoy all available features, it is recommended to control your Robot via the Coredy Robot app. Scan the QR code as below to download the latest version of APP or download from the App Store (iOS devices) or Google Play (Android devices).
  • Page 17 Create a user account 1. Open the app and create a 2. Agree the “privacy Policy” 3. Create your account with 4. Enter verification code user account. the mobile phone number or E-mail ID.
  • Page 18 Add Device Wifi Connection 1. Press “Add Device” or tap 2. Add a Coredy L900W Robot 1. Press and hold the power 5. Set your password with the “+” in the top right to your Coredy account. and recharge both button 6-20 characters.
  • Page 19 2. Select the network you want 3. Press "Go to Connect", to 4. Select the hotspot 5. Wait 1-2 seconds for the Robot to use. You need to connect the mobile phone "CoredyRobot-XXXX" of connecting until "100%". select an exact Wi-Fi as your to the device's hotspot.
  • Page 20 "Done". Press and hold the & button simultaneously for 5 seconds on Coredy L900W Robot to reset the Wi-Fi connec- tion. You will hear a voice prompt when the Wi-Fi connection has been reset, and the Wi-Fi status light will slowly flash purple.
  • Page 21 Troubleshooting. After connecting successfully, you can control Coredy L900W Robot with the app, you can select cleaning at Before you start, make sure that: your desired suction level, schedule cleaning, view the cleaning map, set up “Zone cleaning”...
  • Page 22 Using Google Assistant 6. If you add two or more Robot devices to Coredy Robot App, you can edit name for each Coredy robot on Coredy App or Alexa, they're Synchronous. After named, giving a These instructions will help enable you to control your Coredy command by using your robot name.

  • Page 23: How Coredy L900W Robot Clean Your Home

    3.5 How Coredy L900W Robot Clean Your Zone cleaning (available via the app only) Home In this mode, set up a cleaning zone in the Coredy Robot app. Coredy L900W Robot will clean this zone Coredy L900W Robot continues this process until it has cleaned only and return to the Charging Dock after cleaning.
  • Page 24 4. Dock Coredy L900W Robot onto the Charging Dock or press to turn it on. The system is reset. In the Coredy app, you can set up a “No-Go Zone” as a virtual restricted area. This feature is designed for dividing the cleaning zones, not for isolating hazardous areas.

  • Page 25: Use Mopping System

    Do not use the mopping mode on a carpeted floor. It is recommended to set a No-Go” zone in the Coredy app to avoid cleaning the carpeted area. Remove the dust bin from the robot. When the water tank is inserted, Coredy L900W automatically switches to the mopping mode.
  • Page 26 High 120mins Default suction level: Quiet. Default water level: Low. When L900W finishes working and returns to the charging dock, hold the water tank release button by hand, drag backward and remove the water tank. Note: It is recommended to clean the mopping cloth after mopping each time.

  • Page 27: Regular Robot Care

    Every 12 months Cliff Sensors Charging Contacts Once per month Floor Tracking Sensor Front Driving Wheel Unversal Wheel Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy Customer Care for more information.

  • Page 28: Empty Robot's Dust Bin

    4.1 Empty Robot's Dust Bin 4.2 Clean Robot's Filter Remove filter by grasping the white tab. Press dust bin release button to remove it. Open dust bin door to empty it. Shake off debris by tapping the filter against your trash container.

  • Page 29: Clean Robot's Side Brush

    4.3 Clean Robot's Side Brush Wipe the charging contacts on Robot and the Charging Dock with a clean, dry cloth. Remove the brush Clean the brush and the brush stand, and reinstall the brush. 4.4 Clean Robot's Cliff Sensors and Charging Contacts Wipe Robot’s Cliff Sensors with a clean, dry cloth.

  • Page 30: Clean Robot's Floor Tracking Sensor

    4.5 Clean Robot's Floor Tracking Clean the rolling brush with the provided cleaning tool or a vacuum cleaner. Sensor Use a clean, dry microfiber or soft cotton cloth to wipe any debris that has accumulated in the round sensor opening on the right side of the bottom surface. Do not spray cleaning solution directly into the sensor entrance.

  • Page 31: Battery And Charging Information

    If storing robot off of the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement You can visit Coredy’s website http://shop.coredy.com to purchase the battery or other accessories for the robot.

  • Page 32: Troubleshooting

    When Coredy L900W Robot is in the vicinity of the Charging Dock, it will return more quickly. However, if the cannot return to the Charging Dock is located far away, Coredy L900W Robot will need more time to return. Please be patient as it works Charging Dock.
  • Page 33 Check whether you have installed the Amazon Alexa app onto your smart device and enabled “Smart Life” You cannot control Skill in the Amazon Alexa app. For details, refer to the “Smart Integrations” page in the Coredy Robot App. Coredy L900W Robot Make sure you have a Coredy Robot account and that it is connected to Coredy L900W Robot.
  • Page 34 Voice Alert When Coredy L900W Robot encounters a problem, the red indicator on Coredy L900W Robot will be flashing and you will hear the relevant voice prompts. Follow the voice prompts to solve the problems. Voice Prompt Cause and Solution Front bumper is stuck.
  • Page 35 Voice Prompt Cause and Solution Put the dust collector and filter back in and confirm that they are in place. Then restart Error 13: Please insert dust collector and filter. the device. Error 14: Restricted area detected. Move Device is too close to the restricted area. Move the device to a new position and try again. device to a different area.
  • Page 36 Voice Prompt Cause and Solution Error S3: Side Brush Error. Refer to Owner's - Check whether the side brush is stuck in an unknown object before restarting the device. Manual or App for help. - If the issue persists, contact customer support for help. - Check whether the fan blades are stuck in an unknown object before restarting the Error S4: Suction Fan Error.

  • Page 37: Wi-Fi Connection

    6 Wi-Fi Connection Network Security Requirement Before Wi-Fi setup, make sure Coredy L900W Robot and your Wi-Fi network meet the following requirements. - WPA and WPA2 using TKIP, PSK, AES/CCMP encryption. Wi-Fi Setup Requirements Wi-Fi Channels Coredy L900W Robot: - The FCC requires that all wireless devices in the United States operate on the 1-11 wireless spectrum channels.

  • Page 38: Specifications

    7 Specifications Product Model L900W Input 24 V 1.2A Battery Voltage DC 14.4 V Power Consumption 50 W DC 14.4 V Battery Type Li-ion 5200 mAh Dust Collector Capacity 0.5 L Cleaning Time Max. 200 mins Charging Time 240 - 300 mins...

  • Page 39: Customer Service

    8 Customer Service US COST FREE Tech Support: +1 (800) 999 8470 E-mail: support@coredytech.com Website: http://shop.coredy.com UK COST FREE Tech Support: +44 (808) 134 9909 @coredytech @CoredyOfficial @coredy_robotvacuum @Coredy Official...
  • Page 40 MODEL: L900W US COST FREE Tech Support: UK COST FREE Tech Support: +44 (808) 134 9909 E-mail: support@coredytech.com +1 (800) 999 8470 Website: http://shop.coredy.com (PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00) V1.1...
