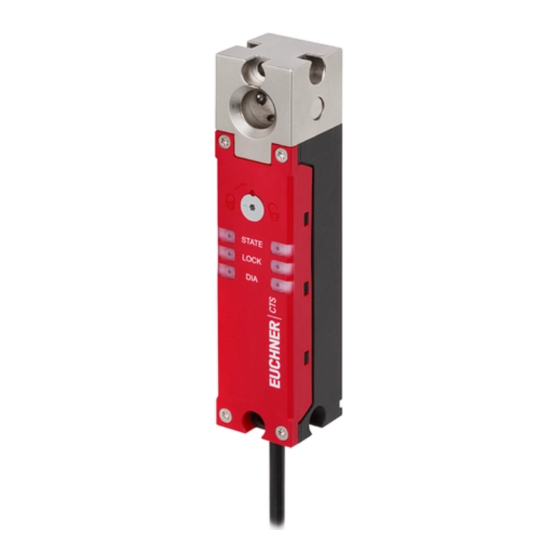

- Page 1 Operating Instructions Transponder-Coded Safety Switch with Guard Locking CTS-C1-BP/BR-FLX High/Low Coding Level...
-
Page 2: Table Of Contents
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................7 3.1. With active guard lock monitoring ..................7 3.2. - Page 3 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 9.8. Connection without and with IO-Link communication .................22 9.8.1. Connection without IO-Link communication ...............22 9.8.2. Connection with IO-Link communication ................22 Connection of a single CTS-C1-BP/BR-FLX (separate operation) ......23 Connection of several devices in a chain (series connection) ........ 24 11.1.
-
Page 4: About This Document
Important! Always read all documents to gain a complete overview of safe installation, setup and use of the device. The documents can be downloaded from www.euchner.com. For this purpose enter the doc. no. in the search box. (translation of the original operating instructions) MAN20001587-01-02/23... -
Page 5: Correct Use
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 2. Correct use Safety switches series CTS-C1-BP/BR-FLX are interlocking devices with guard locking solenoid (type 4). The device complies with the requirements according to EN 60947-5-3. The device can be configured with the aid of a function actuator. Depending on the taught-in function actuator, guard lock monitoring is switched on or off and evaluation of the actuator code has a high or low coding level. - Page 6 EN 60204-1 Ì The safety switch is allowed to be operated only in conjunction with the intended EUCHNER actuators and the related con- nection components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function.
-
Page 7: Description Of The Safety Function
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 3. Description of the safety function Devices from this series feature the following safety functions: 3.1. With active guard lock monitoring Monitoring of guard locking and the position of the guard (interlocking device with guard locking according to EN ISO 14119) Safety function (see chapter 6. -
Page 8: With Inactive Guard Lock Monitoring
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 3.2. With inactive guard lock monitoring Monitoring of the guard position (interlocking device according to EN ISO 14119) Safety function: the safety outputs are switched off when the guard is open (see chapter 6. Function on page Ì... -
Page 9: Exclusion Of Liability And Warranty
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. You can download the operating instructions from www.euchner.com. MAN20001587-01-02/23 (translation of the original operating instructions) -
Page 10: Function
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 6. Function The device monitors the position of movable guards and can enable locking of movable guards. Switch Coded actuator The system consists of the following components: coded actuator (transponder) and switch. The coding level of the system depends on the configuration of the device (see chapter 13.1. Configuring device and teaching-in actuator for the first time on page 32). -
Page 11: Door Position 2 Signal Ot
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 6.2.3. Door position 2 signal OT The door position 2 signal is present if the actuator is completely inserted in the switch head and the guard locking can be activated. In normal ambient conditions, the signal OT is sent after the signal OD as an additional door monitoring contact. The signal is also present if the guard locking is active (see chapter 6.4. -
Page 12: Switching States
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 6.4. Switching states The detailed switching states for your switch can be found in chapter 15. Status and error messages on page 35. All safety outputs, signals and display LEDs are described there. Guard closed and not Guard closed and locked Guard closed and not locked Guard open... -
Page 13: Manual Release
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 7. Manual release Some situations require the guard locking to be released manually (e.g. malfunctions or an emergency). A function test must be performed after release. More information on this topic can be found in the standard EN ISO 14119:2013, section 5.7.5.1. The device can feature the following release functions: 7.1. -
Page 14: Escape Release
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 7.2. Escape release The escape release can be retrofitted. Escape release The escape release permits opening of a locked guard from the danger zone without tools (see chapter 16.3. Dimension drawing for safety switch CTS on page 44). Important! It must be possible to actuate the escape release manually from inside Ì... -
Page 15: Mounting
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 8. Mounting CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for bypassing Ì an interlocking device. NOTICE Risk of damage to equipment and malfunctions as a result of incorrect installation. - Page 16 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX The following applies to inactive guard lock monitoring: Important! From the assured release distance S , the safety outputs are safely shut down. To achieve Ì the assured release distance S , the actuator must be pulled completely out of the switch head.
- Page 17 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 2 x M5 (6 Nm) M5 (6 Nm) M5 (3 Nm) Fig. 3: Installation example m = max. ± 2 mm Fig. 4: Maximum actuator deflection and maximum center offset MAN20001587-01-02/23 (translation of the original operating instructions)
-
Page 18: Electrical Connection
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 9. Electrical connection The following connection options are available: Separate operation Ì Series connection with wiring in the control cabinet Ì Series connection with Y-distributors Ì Connection without IO-Link communication Ì Connection with IO-Link communication Ì... -
Page 19: Notes About
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 9.1. Notes about Important! This device is intended to be used with a Class 2 power source in accordance with UL1310. Ì As an alternative an LV/C (Limited Voltage/Current) power source with the following properties can be used: This device shall be used with a suitable isolating source in conjunction with a fuse in accordance to UL248. -
Page 20: Requirements For Connecting Cables
Use connection components and connecting cables from EUCHNER. Ì On the use of other connection components, the requirements in the following table apply. EUCHNER Ì provides no warranty for safe function in case of failure to comply with these requirements. -
Page 21: Connector Assignment/Terminal Assignment Of Safety Switch Cts
Solenoid operating voltage, 24 V DC X2.5 n.c. 1) Only for standard EUCHNER connecting cable 2) The function of the monitoring output OX is determined by the actuator taught-in. You will find more detailed information in the data sheet 2153710 or at www.euchner.com. -
Page 22: Notes On Operation With Safe Control Systems
With series connection: always connect inputs FI1A and FI1B directly to a power supply unit or to outputs FO1A and FO1B Ì of another EUCHNER BR device. Pulsed signals must not be present at inputs FI1A and FI1B. A detailed example of connecting and setting the parameters of the control system is available for many devices at www.euchner.com, in the area Downloads/Applications/CTS. -
Page 23: Connection Of A Single Cts-C1-Bp/Br-Flx (Separate Operation)
The user is responsible for safe integration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. You will find all available connection examples for the device in Downloads. -
Page 24: Connection Of Several Devices In A Chain (Series Connection)
The user is responsible for safe integration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number of your switch in the search box. You will find all available connection examples for the device in Downloads. -
Page 25: Maximum Cable Lengths With Br Switch Chains
Important! The maximum number of switches in a BR switch chain depends on many factors, including the cable length. This case example shows a standard application. You will find further connection examples at www.euchner.com. =200 m <100 m = 24 V... -
Page 26: Connector Assignment Of Y-Distributor For Series Connection Without Io-Link Communication
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 11.2.3. Connector assignment of Y-distributor for series connection without IO-Link communication (Only for BR version with plug connectors 2 x M12) Important! The switch chain must always be terminated with strapping plug 097645. Ì A higher-level control system cannot detect which safety door is open or on which switch a fault has occurred Ì... - Page 27 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 24V DC 24V DC Actuator con g L+HC n.c. n.c. n.c. FI1A FI1B W2:BK W1:BN W1:RD W2:BU W2:GY W1:PK W1:WT Actuator EUC.167919 Safety Inputs Read Head Monitoring Outputs Locking Door Safety Outputs active Monitoring EUC.169053 CTS-C1-BR-CC-FLX-AP-V05-169053 W2:BN...
-
Page 28: Connector Assignment Of Y-Distributor For Series Connection With Io-Link Communication
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 11.2.4. Connector assignment of Y-distributor for series connection with IO-Link communication (Only for BR version with plug connectors 2 x M12) Important! The switch chain must always be terminated with strapping plug 097645. Ì Plug connector X1 Y-distributor Plug connector X2 / X3 Plug... -
Page 29: Using Communication Data
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 12. Using communication data A BR/IO-Link Gateway is required to use the device’s communication data and forward them to a higher-level bus system. The following devices are suitable: GWY-CB-1-BR-IO (BR/IO-Link Gateway) Ì ESM-CB (safety relay with integrated BR/IO-Link Gateway) Ì... -
Page 30: Overview Of The Communication Data
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 12.3. Overview of the communication data The switch transmits both process data that are continuously transmitted to the evaluation unit (cyclical data) and data that can be polled specifically as needed (acyclical data). For further information on connection and on the communication data, refer to the operating instructions for your BR/IO-Link Gateway. - Page 31 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX Command Reply Number Bit sequences Meaning of bytes (big endian format) 0x02 Send device ID number/serial number Bytes 1 - 3 Device ID number Bytes 4 - 6 Serial number 0x03 Send version number of the device Byte 1 Bytes 2 - 4 Version number 0x05...
-
Page 32: Setup
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 13. Setup 13.1. Configuring device and teaching-in actuator for the first time The device must be configured and the actuator must be allocated to the safety switch before the system forms a functional unit. During configuration, the function actuator is used to activate or deactivate guard lock monitoring and define the coding level. -
Page 33: Teaching-In New Actuator (Only For Evaluation Of The Actuator With A High Coding Level)
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 13.2. Teaching-in new actuator (only for evaluation of the actuator with a high coding level) Tip! Prior to switching on the operating voltage, close the guard on which the actuator to be taught-in is installed. -
Page 34: Functional Check
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 13.3. Functional check WARNING Danger of fatal injury as a result of faults in installation and the functional check. Before carrying out the functional check, make sure that there are no persons in the danger zone. Ì... -
Page 35: Factory Reset
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 14. Factory reset A factory reset deletes the configuration and restores the device’s factory settings. To perform a factory reset, connect the two outputs FO1A and FO1B to 0 V before applying the operating voltage or send the command 0x1E via IO-Link communication (see chapter 12.3.2. -
Page 36: Status Messages
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 15.2. Status messages LED indicator Safety Door po- outputs Guard sition 1 FO1A / locking Status STATE LOCK signal FO1B signal OL orange white quickly Self-test after operating voltage is switched on. 3 Hz (CTS-BP: 2 s; CTS-BR: 5 s) No communication with the BR/IO-Link Gateway. -
Page 37: Error Messages
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 15.3. Error messages knowl- LED indicator edging errors Error Troubleshooting STATE LOCK orange Teach-in errors Actuator removed from the actuating range prior Check whether the actuator is outside the actuat- ¨ to the end of the teach-in operation. ing range or in the limit range. - Page 38 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX knowl- LED indicator edging errors Error Troubleshooting STATE LOCK orange Actuator plausibility errors Possibly mechanically damaged actuator detected Check whether the actuator is outside the actuat- during operation. ing range or in the limit range. Release guard locking.
-
Page 39: Acknowledging Error Messages
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX knowl- LED indicator edging errors Error Troubleshooting STATE LOCK orange Internal error 0x01 Restart the device. On repeated occurrence, Internal device error contact the manufacturer. 15.4. Acknowledging error messages If the DIA LED flashes inversely once, the error message can be acknowledged by opening and closing the guard. If the error is still displayed afterward, a reset must be performed. -
Page 40: Technical Data
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 16. Technical data NOTICE If a data sheet is available for the product, the information on the data sheet applies. 16.1. Technical data for safety switch CTS-C1-BP/BR-FLX Value Parameter Unit min. typ. max. General Material - Switch head cover Die-cast zinc... - Page 41 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX Value Parameter Unit min. typ. max. Safety outputs FO1A/FO1B Semiconductor outputs, p-switching, short circuit-proof Output voltage U FO1A FO1B - HIGH V DC FO1A FO1B - LOW FO1A FO1B Output current Utilization category DC-13 24V 80mA DC-13 24V 75mA Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.
-
Page 42: Typical System Times
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 16.1.1. Typical system times Refer to the technical data for the exact values. Ready delay: After switching on, the device carries out a self-test. The system is ready for operation only after this time. Turn-on time of safety outputs: The max. -
Page 43: Radio Frequency Approvals
47 CFR § 2.1077 Compliance Information Unique Identifier: CTS-C1-BP Series CTS-C1-BR Series CTS-C2-BP Series CTS-C2-BR Series Responsible Party – U.S. Contact Information EUCHNER USA Inc. 1860 Jarvis Avenue Elk Grove Village, Illinois 60007 +1 315 701-0315 info(at)euchner-usa.com http://www.euchner-usa.com MAN20001587-01-02/23 (translation of the original operating instructions) -
Page 44: Dimension Drawing For Safety Switch Cts
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 16.3. Dimension drawing for safety switch CTS Necessary minimum travel + perm. overtravel Approach direction Standard actuator Horizontal (h) 27 + 4 15,5 15,5 Auxiliary release Auxiliary release on the front on the rear LEDs LEDs STATE... -
Page 45: Technical Data For Actuator A-Flx-D-0
Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX 16.4. Technical data for actuator A-FLX-D-0.-… Value Parameter Unit min. typ. max. Material - Mounting Safety screws, galvanized steel 8.8 - Cover - Actuating element Stainless steel - Housing Fiber reinforced plastic, black Weight 0.06 Ambient temperature °C... -
Page 46: Ordering Information And Accessories
20. Declaration of conformity The declaration of conformity is part of the operating instructions. The complete EU declaration of conformity can also be found at www.euchner.com. Enter the order number of your device in the search box. The document is available under Downloads. - Page 47 Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX MAN20001587-01-02/23 (translation of the original operating instructions)
- Page 48 Edition: MAN20001587-01-02/23 Title: Operating Instructions Transponder-Coded Safety Switch CTS-C1-BP/BR-FLX (translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 02/2023 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
