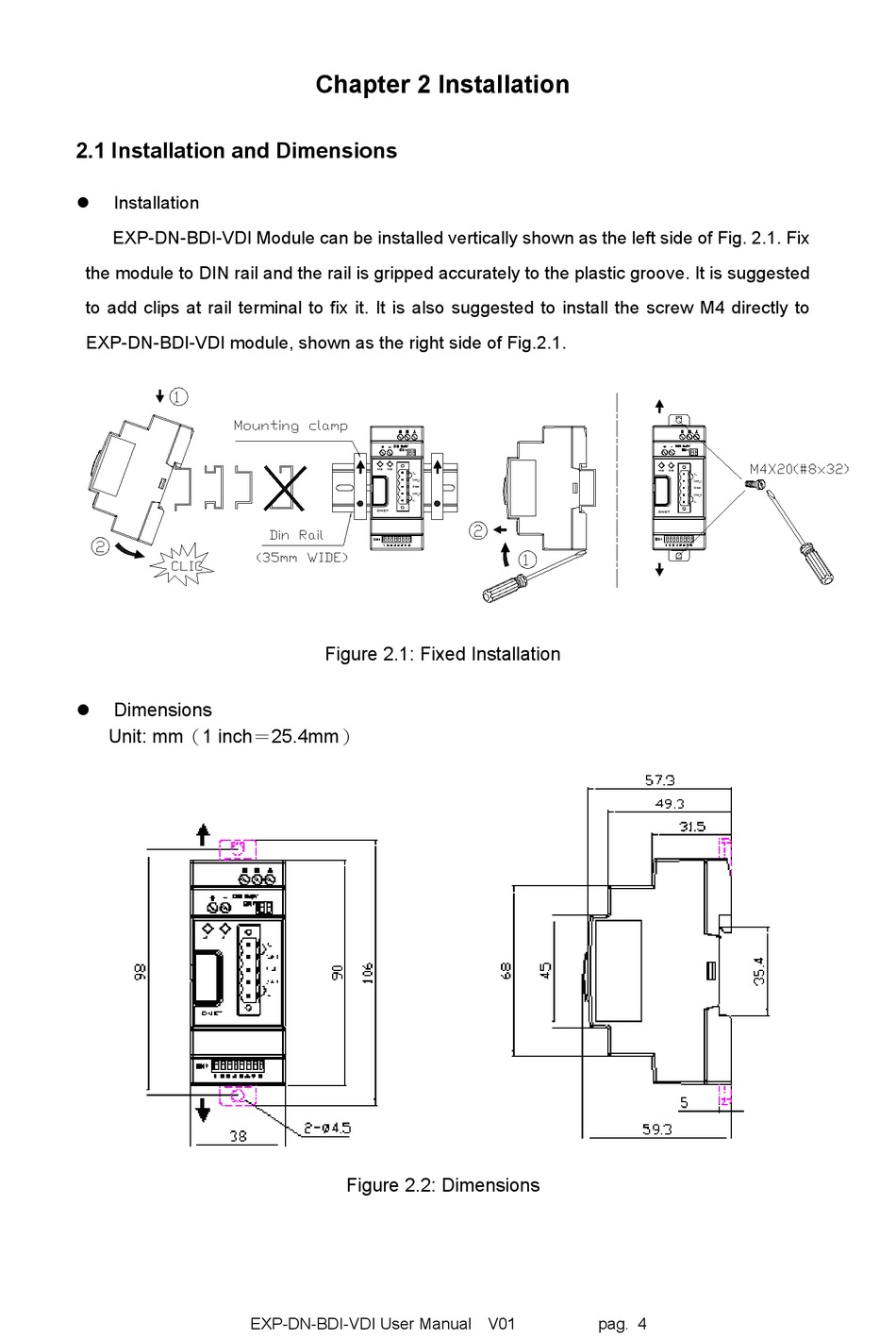

2.1 Installation and Dimensions
Installation
EXP-DN-BDI-VDI Module can be installed vertically shown as the left side of Fig. 2.1. Fix
the module to DIN rail and the rail is gripped accurately to the plastic groove. It is suggested
to add clips at rail terminal to fix it. It is also suggested to install the screw M4 directly to
EXP-DN-BDI-VDI module, shown as the right side of Fig.2.1.
Dimensions
Unit: mm（1 inch＝25.4mm）
Chapter 2 Installation
Figure 2.1: Fixed Installation
Figure 2.2: Dimensions
EXP-DN-BDI-VDI User Manual V01
pag. 4
