EXP-DN-BDI-VDI can connect with DeviceNet by DeviceNet Extended Communication
Module. To DeviceNet, EXP-DN-BDI-VDI DeviceNet Communication Module is a Group2
Only Slave device; it is a slave station of DeviceNet.
To Inverter, EXP-DN-BDI-VDI Communication Module connected with Inverter by RS485
communication port.
DIP switch SW1_8 is required to be set OFF if EXP-DN-BDI-VDI Module is connected
with the inverters of VDI100/BDI50 series.
The VDI100/BDI50 series have built-in RS485 interface so they can connect with
different extended communication module by Modbus protocol, such as DeviceNet
Communication module, Profibus Communication module. If Inverter connected with
DeviceNet Communication module, it can`t connected with other communication modules.

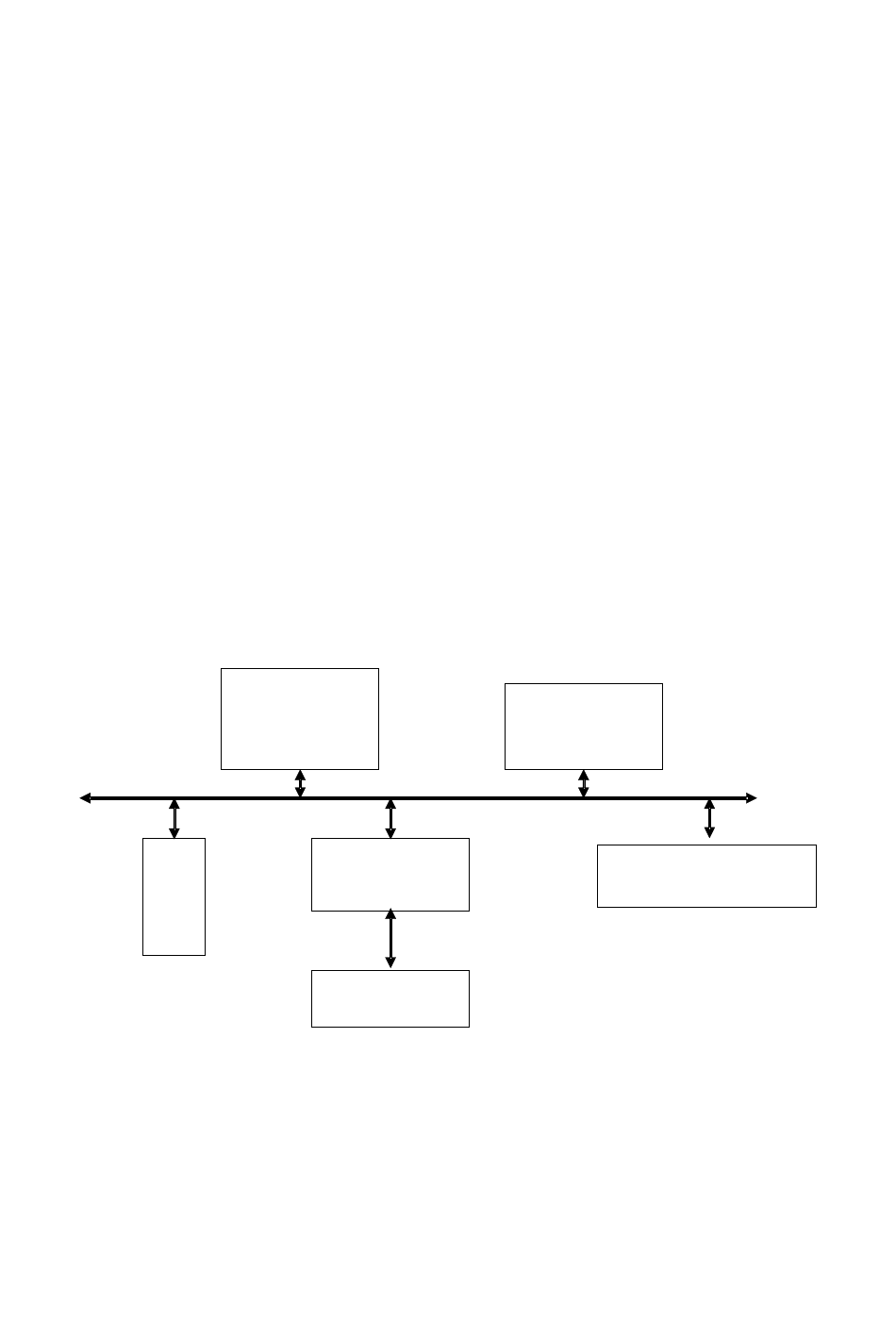

1.1 System Structural Diagram
It is the slave station of DeviceNet when EXP-DN-BDI-VDI Communication Module is
connected with the inverter via RS485. Refer to Fig.1.1:
DeviceNet Master
DeviceNet
Motor
Figure1.1: Bus System Structure of DeviceNet
Chapter 1 Summary
SLC and other
Devices
EXP-DN-BDI-VDI
Module 1
VDI100 Series
EXP-DN-BDI-VDI User Manual V01
Client Tool
Other DeviceNet Devices
Inverter RS485
pag. 1
