Summary of Contents for Antar AT51111

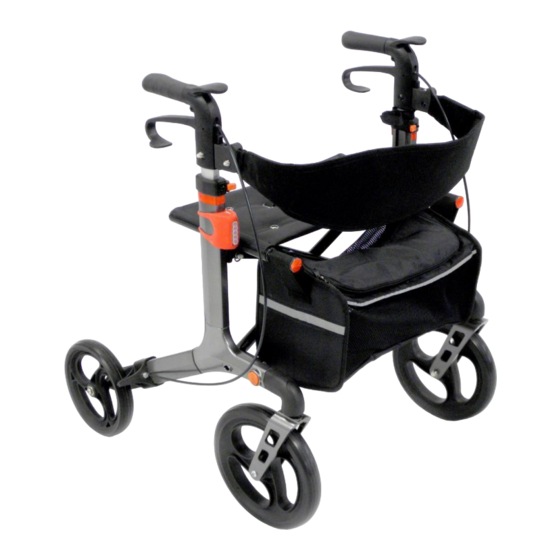

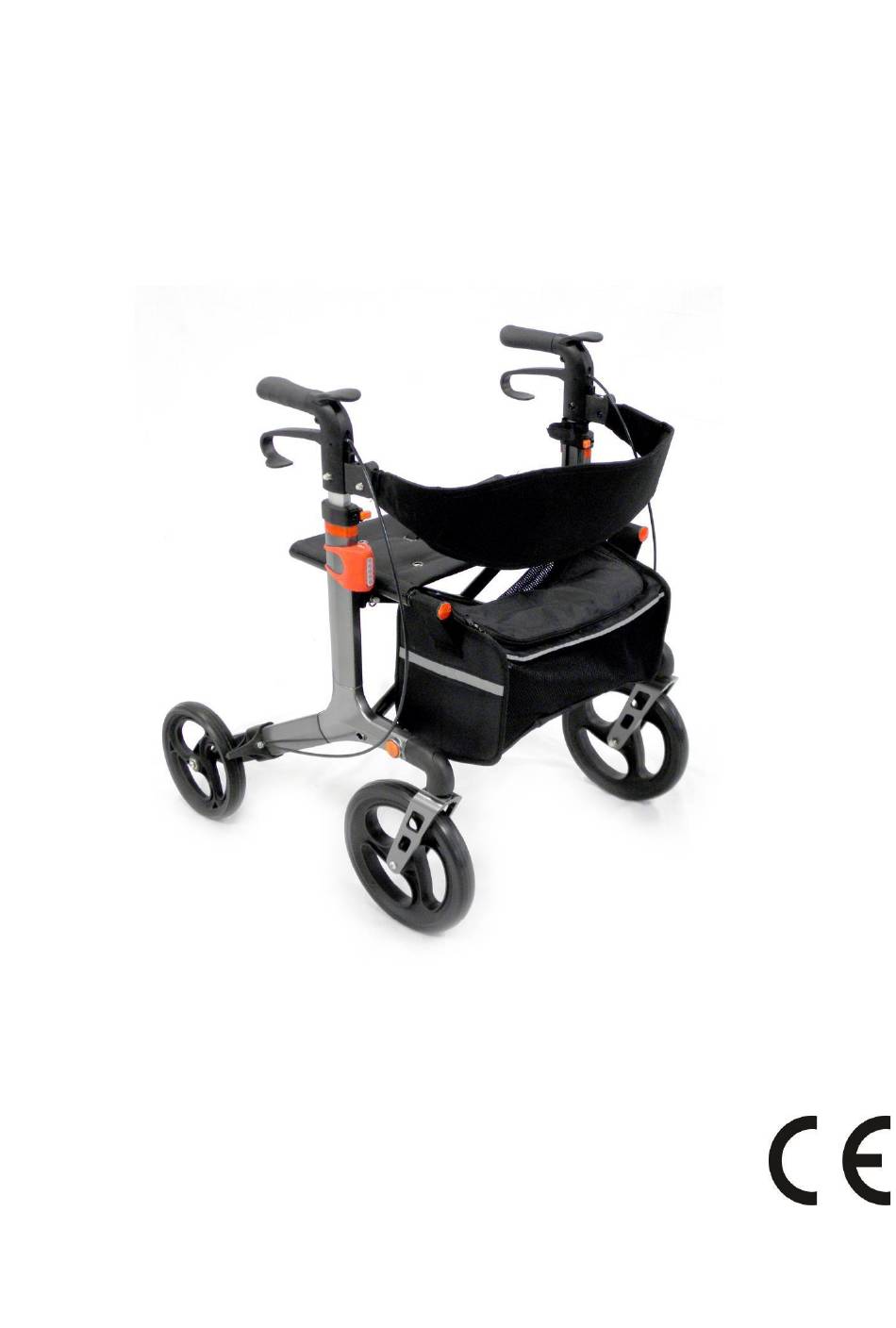

- Page 1 AT51111 Lightweight Wheeled Walker...
-
Page 2: Introductory Remark
Instruction Manual 1. INTRODUCTORY REMARK We are thankful that you decided on the AT51111 lightweight wheeled walker. The quality of the wheeled walker will not disappoint you. Please read through the instruction manual thoroughly before using the wheeled walker for the first time. -
Page 3: Table Of Contents
AT51111 2. TABLE OF CONTENTS 1. INTRODUCTORY REMARK ................. 2 2. TABLE OF CONTENTS ..................3 3. GENERAL INFORMATION .................. 5 Specific Function ........................5 Indications ..........................5 Contraindications ........................5 Duration of Use ........................6 Liability ..........................6 Declaration of Conformity .....................6 Symbols ..........................6 4. - Page 4 Instruction Manual Cleaning ..........................15 Disinfection .........................16 8. RE-USE ......................16 9. DISPOSAL ......................16 TECHNICAL DATA ..................17 REPAIR AND MAINTENANCE FOR THE SPECIALIZED SHOP ......18 WARRANTY ....................19...
-
Page 5: General Information
Specific Function The wheeled walker AT51111 is designed for indoor and outdoor spaces. It is designed exclusively as a walker with seating for one person. Carrying of more than one person is not allowed. If not otherwise described, this instruction manual is directed to the patients as the operator. -
Page 6: Duration Of Use
Instruction Manual Duration of Use The expected life span of the wheeled walker is up to 5 years with use, safety, care and maintenance in accordance with regulations. Beyond this time period, the wheeled walker can still be used as long as still in proper condition. -
Page 7: Product And Delivery Summary
AT51111 4. PRODUCT AND DELIVERY SUMMARY Delivery Inspection The AT51111 wheeled walker is delivered completely assembled in a box. After unpacking, retain the box and the packaging material if possible. They can be used for subsequent possible storage of the wheeled walker. -
Page 8: Overview Of Classic Pocket
Instruction Manual Overview of AT51111 Figure 2: Product overview Seat back Pouch Front wheels mounting Front wheels (steerable) Brake adjusting screw Rear wheels Tilt support (left and right) Rear wheels mounting Lighting (optional) 10 Sitting surface 11 Sliding height adjustment handle... -
Page 9: Classic Pocket Setup
AT51111 5. AT51111 Setup We recommend you setup the wheeled walker together with your specialized dealer. With enough manual skills, you can also complete this by yourself. Be aware of the increased risk of entrapment during setup of the wheeled walker. -
Page 10: Brakes
Instruction Manual Brakes Setup of the brakes should be completed by a trained specialist. However, if you have sufficient experience, you can complete this job by yourself. Keep in mind though that incorrectly installed brakes can have life-threatening consequences. Increase/lessen brake effect 1. -
Page 11: Use Of Classic Pocket
AT51111 6. USE OF AT51111 Be aware of risk of entrapment, especially during opening and folding up as well as when preparing to transport Opening and Folding Up The wheeled walker can be stored in a folded up position for space savings. -
Page 12: Transporting And Storage
Instruction Manual Transporting and Storage In order to be able to transport and store the wheeled walker for space savings, it is possible to pivot the front wheels up and take off the mounting bracket of the rear wheels (Figure 9). Figure 9 Front Wheels Press the red latch (Figure 10) in order to... -
Page 13: Running With The Wheeled Walker
AT51111 Running with the Wheeled Walker First test the use of the wheeled walker on a level, dry surface. Allow yourself to be accompanied by another person if possible. Practice after the first attempt – if you feel safe – using it on sloped surfaces. -
Page 14: Brakes And Parking Brake
Instruction Manual Brakes and Parking Brake Your wheeled walker is equipped with a charged operating brake and with a parking brake to prevent accidental rolling away. In order to easily and safely bring the wheeled walker to a stop, pull both brake handles upwards (Figure 13). -
Page 15: Carrying The Wheeled Walker
AT51111 Carrying the Wheeled Walker If you would like to carry the wheeled walker, over a curb for example, fold it together. Carry the wheeled walker with both hand grips or by the frame. Be aware of the risk of entrapment. -
Page 16: Disinfection
Allow the wheeled walker to air dry and be aware manufacturer’s treatment time for the disinfectant. 8. RE-USE The AT51111 wheeled walker is suitable for re-use. The wheeled walker is to be initially cleaned and disinfected according the attached care and hygiene information. During the transfer of the wheeled walker, think about handing over all necessary technical documents to the new user for safe handling. -
Page 17: Technical Data
AT51111 10. TECHNICAL DATA Size and Weight Seat width 450 mm Seat height 540 mm Total width 653 mm Total length 706 mm Total height/ 810 – 936 mm Height of handle (adjustable at 6 levels) Empty weight 7,85 kg... -
Page 18: Repair And Maintenance For The Specialized Shop
11. REPAIR MAINTENANCE SPECIALIZED SHOP It is recommended that the AT51111 undergo an inspection by the specialized dealer at least once a year. For errors or defects, the AT51111 is to be immediately handed over the the specialized dealer for repair. -
Page 19: Warranty
3) ANTAR reserves the right to replace the product if it considers that the repair costs make it unviable. Repair or replacement of defective products does not extend the warranty period.
