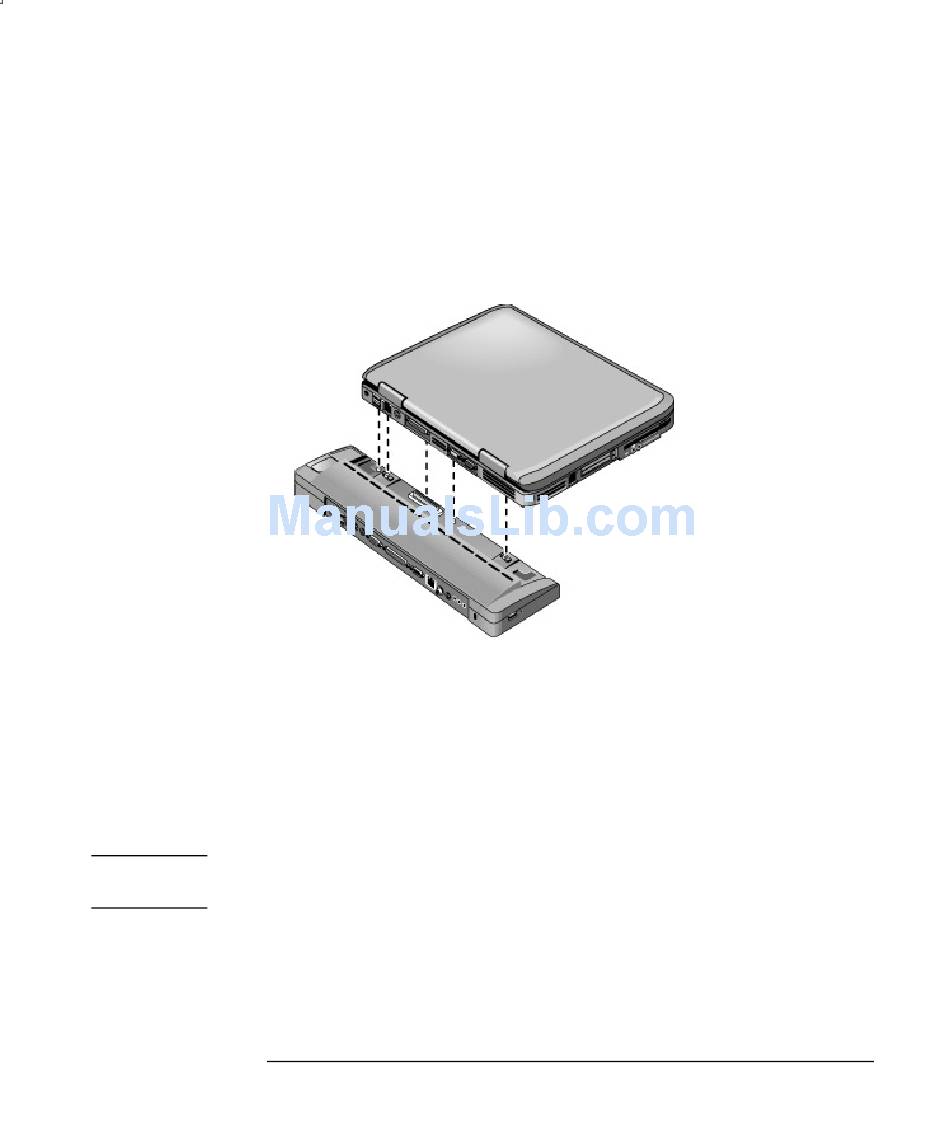

To dock to the port replicator
1. Plug in the AC adapter, then connect it to the back of the port replicator. You can
2. Remove the rubber cover from the docking connector on the bottom of the
3. Align the notebook with the locator posts on the port replicator.
4. Press the notebook down until both sides snap into place.
5. If the notebook is off, open the notebook and press the power button to turn it on.
When the notebook is docked, you can use the notebook security connector to secure
the notebook. To secure both the notebook and port replicator, install the cable lock
in the security connector next to the undock button. This will also lock the undock
button.
Note
If a device is connected to an audio port on the notebook, any device connected to the
corresponding port on the port replicator is ignored.
also operate the port replicator using power from the notebook battery.
notebook.
The lights on the port replicator turn on.
