To connect an audio device

You can plug in an external microphone, external speakers, or headphones. In
addition, if you connect your notebook to the port replicator, you can plug in a stereo
source (such as a CD player) or a device that accepts digital audio (such as a digital
audio recorder).
CAUTION
The headphone and line-in jacks are three-terminal stereo jacks. They are not
compatible with two-terminal mono plugs. Connecting a mono plug into either
of these jacks may damage the notebook.
Attach the audio cable to the corresponding audio port on the notebook or port

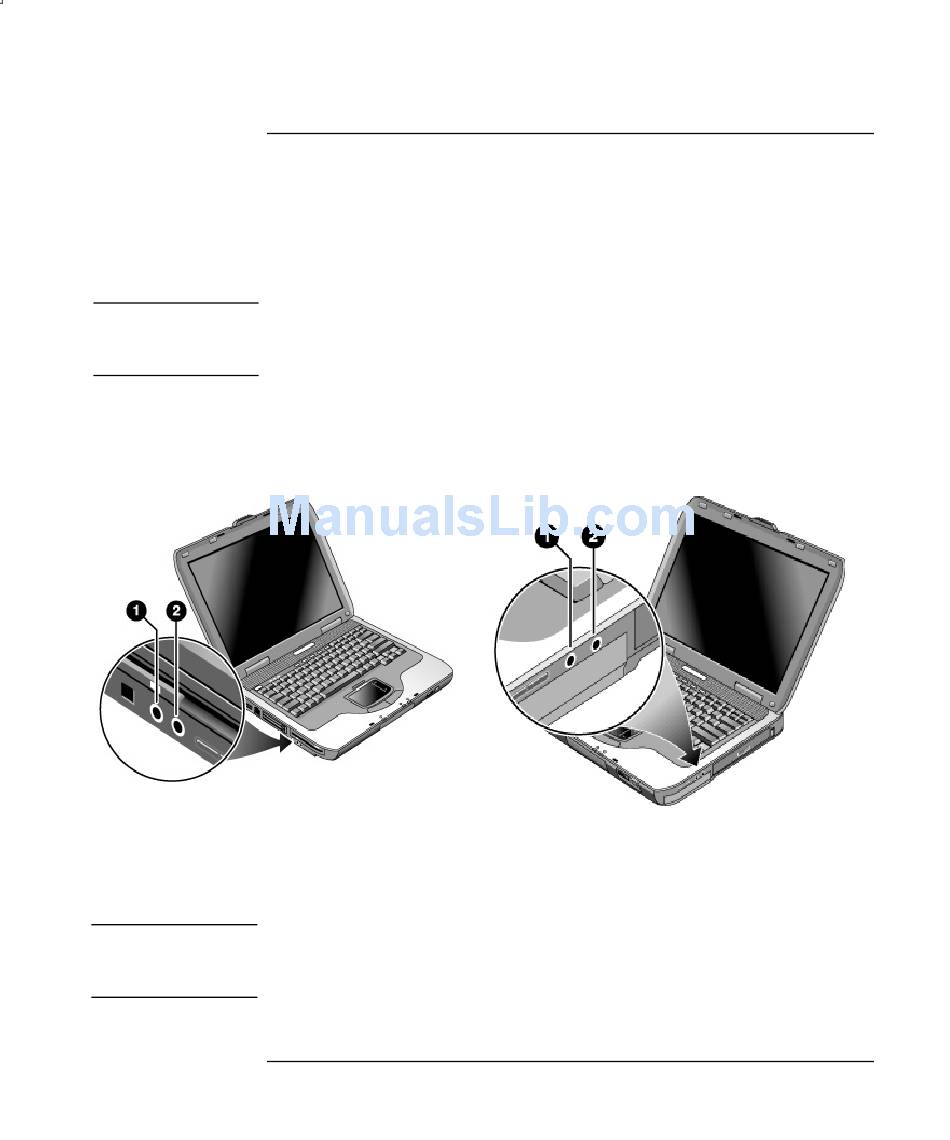

replicator. Match your notebook to one of the following illustrations and locate the
audio ports on your notebook.
1 External microphone connector (pink)
2 Audio out (headphones) connector
(green)
Note
When you plug a device into the headphone port, the built-in speakers automatically
turn off. When you plug a device into either audio port on the notebook, any device
connected to the corresponding port on the port replicator is ignored.
50 Reference Guide
1 Audio out (headphones) connector (green)
2 External microphone connector (pink)
