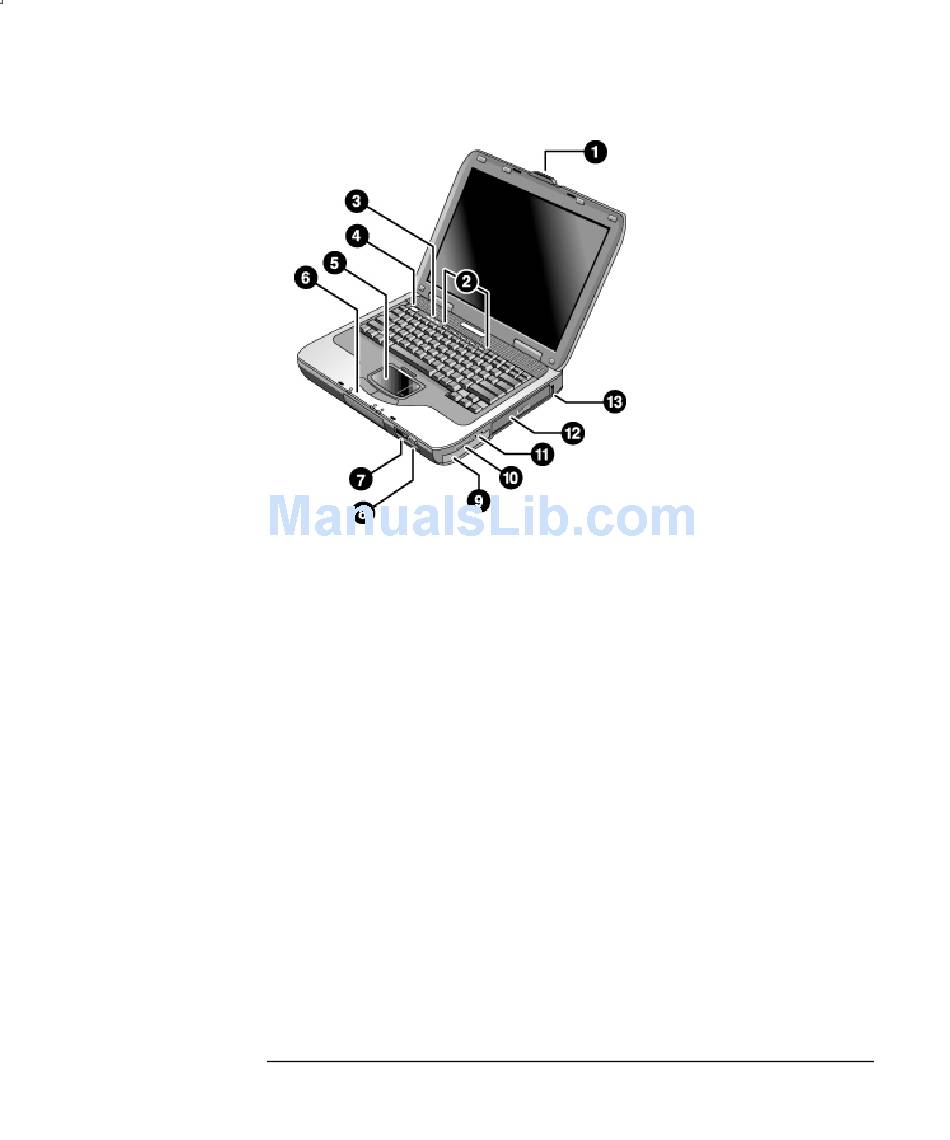

1 Notebook open/close latch
2 One-Touch buttons
3 Keyboard status lights
4 Power button: turns the computer on and off
5 TouchPad, scroll pad, Click buttons, plus
on-off button
6 Main status lights (left to right): power mode,
hard drive activity, and battery
7 Infrared port (select models only)
Getting Started with Your Notebook
Identifying Parts of the Notebook
8 Wireless on-off button and indicator light
(select models only)
9 Battery
10 Audio mute button, audio mute light, and
volume control
11 Audio jacks (left to right): audio out
(headphones), external microphone
12 CD-ROM, DVD, or other drive
13 Universal serial bus port (USB)
