1860304

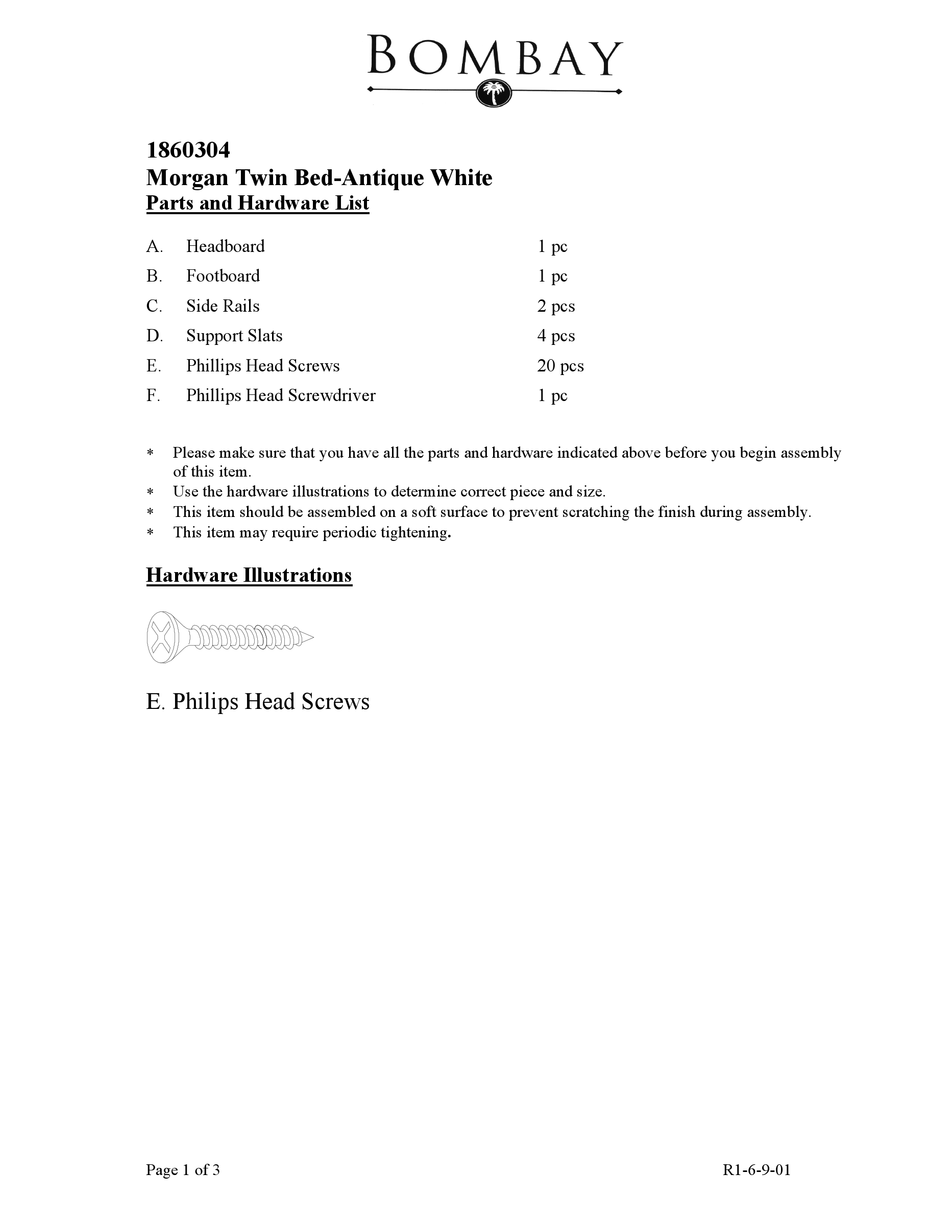

Morgan Twin Bed-Antique White
Parts and Hardware List
A.
Headboard
B.
Footboard
C.
Side Rails
D.
Support Slats
E.
Phillips Head Screws
F.
Phillips Head Screwdriver
∗
Please make sure that you have all the parts and hardware indicated above before you begin assembly
of this item.
∗
Use the hardware illustrations to determine correct piece and size.
∗
This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.
Hardware Illustrations
E. Philips Head Screws
Page 1 of 3
1 pc
1 pc
2 pcs
4 pcs
20 pcs
1 pc
R1-6-9-01
Advertisement
Table of Contents
Related Manuals for BOMBAY Morgan 1860304
Summary of Contents for BOMBAY Morgan 1860304
- Page 1 1860304 Morgan Twin Bed-Antique White Parts and Hardware List Headboard 1 pc Footboard 1 pc Side Rails 2 pcs Support Slats 4 pcs Phillips Head Screws 20 pcs Phillips Head Screwdriver 1 pc ∗ Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
- Page 2 1860304 Morgan Twin Bed-Antique White Assemble the Headboard & Footboard Parts required Headboard 1 pc C. Side Rails 2 pcs Footboard 1 pc 1. Attach the Side Rail (C). Insert the exposed hooks of the Side Rail (C) into the pre-bored slots of the Headboard (A) and Footboard (B), press down on the Side Rail (C) onto the pins in the Headboard (A).
- Page 3 1860304 Morgan Twin Bed-Antique White Assemble the Support Slats Parts required Phillips Head Screws 20 pcs F. Phillips Head Screwdriver 1 pc 3. Attach the Support Slats (D). Place the Support Slat (D) over the cleat of Side Rails (C). Secure both sides of each Support Slats (D), using the Phillips Head Screws (E) with the Phillips Head Screwdriver 4.
