1885088

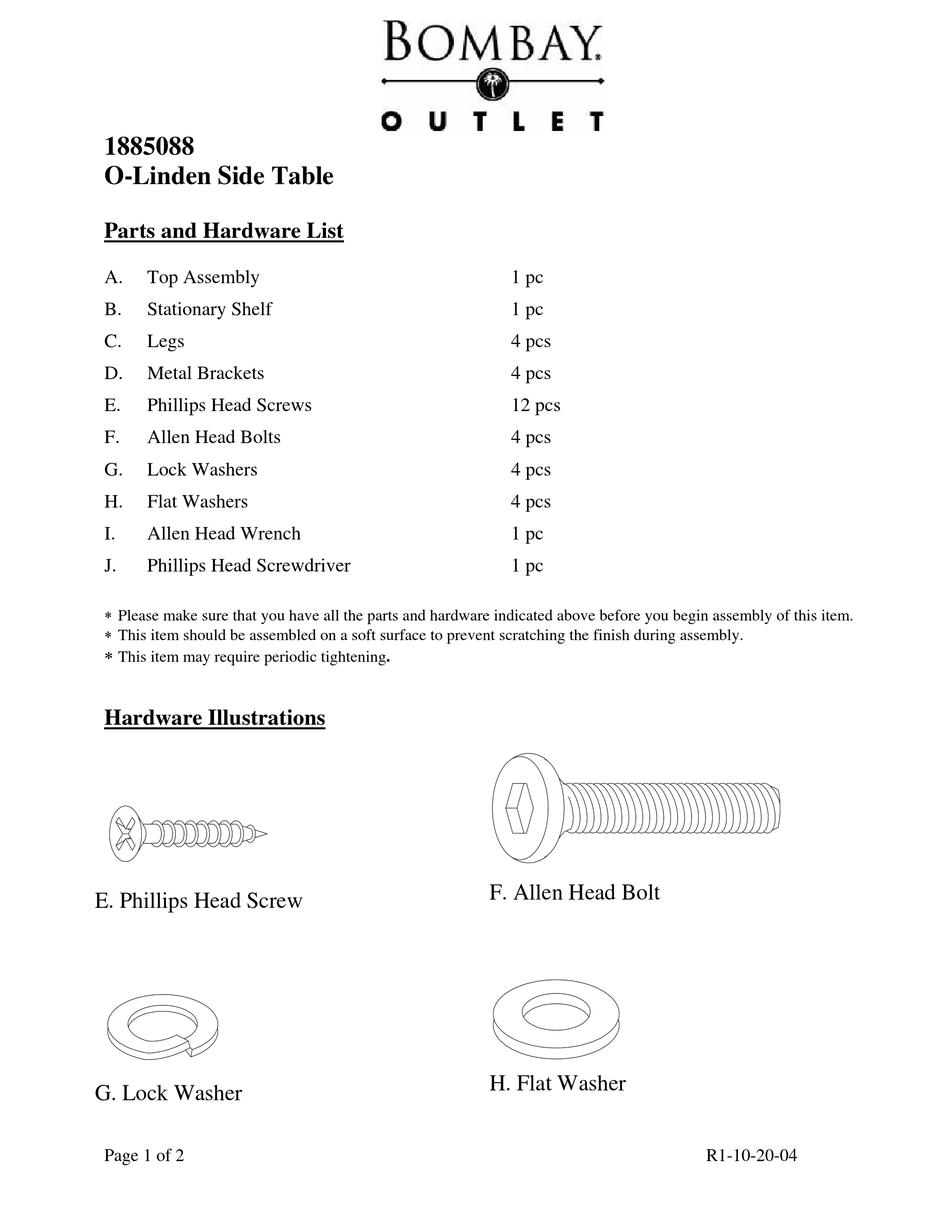

O-Linden Side Table
Parts and Hardware List
A.
Top Assembly
B.
Stationary Shelf
C.
Legs
D.
Metal Brackets
E.
Phillips Head Screws
F.
Allen Head Bolts
G.
Lock Washers
H.
Flat Washers
I.
Allen Head Wrench
J.
Phillips Head Screwdriver
∗ Please make sure that you have all the parts and hardware indicated above before you begin assembly of this item.
∗ This item should be assembled on a soft surface to prevent scratching the finish during assembly.
∗
This item may require periodic tightening.
Hardware Illustrations
E. Phillips Head Screw
G. Lock Washer
Page 1 of 2
1 pc
1 pc
4 pcs
4 pcs
12 pcs
4 pcs
4 pcs
4 pcs
1 pc
1 pc
F. Allen Head Bolt
H. Flat Washer
R1-10-20-04
Advertisement
Table of Contents
Related Manuals for BOMBAY O-Linden 1885088
Summary of Contents for BOMBAY O-Linden 1885088
- Page 1 1885088 O-Linden Side Table Parts and Hardware List Top Assembly 1 pc Stationary Shelf 1 pc Legs 4 pcs Metal Brackets 4 pcs Phillips Head Screws 12 pcs Allen Head Bolts 4 pcs Lock Washers 4 pcs Flat Washers 4 pcs Allen Head Wrench 1 pc Phillips Head Screwdriver...
- Page 2 1885088 O-Linden Side Table Assembly Instructions 1. Attach Metal Brackets (D) Align the two pre-drilled holes in the Metal Brackets (D) with the two pre-drilled holes in the Legs (C). Secure with Phillips Head Screws (E) using Phillips Head Screwdriver (J). See illustration #1. 2.
