M-system R7 Series Instruction Manual

INSTRUCTION MANUAL
PNP TRANSISTOR OUTPUT EXTENSION MODULE, 8 points
(Ethernet Modbus/TCP)
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Discrete output extension module ................................. (1)
■ MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ CONFORMITY WITH EU DIRECTIVES
• The actual installation environments such as panel con-
figurations, connected devices and connected wires may
affect the protection level of this unit when it is integrat-
ed in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure CE conformity.
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, approx. 10mA
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and output signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
SEN TRONIC

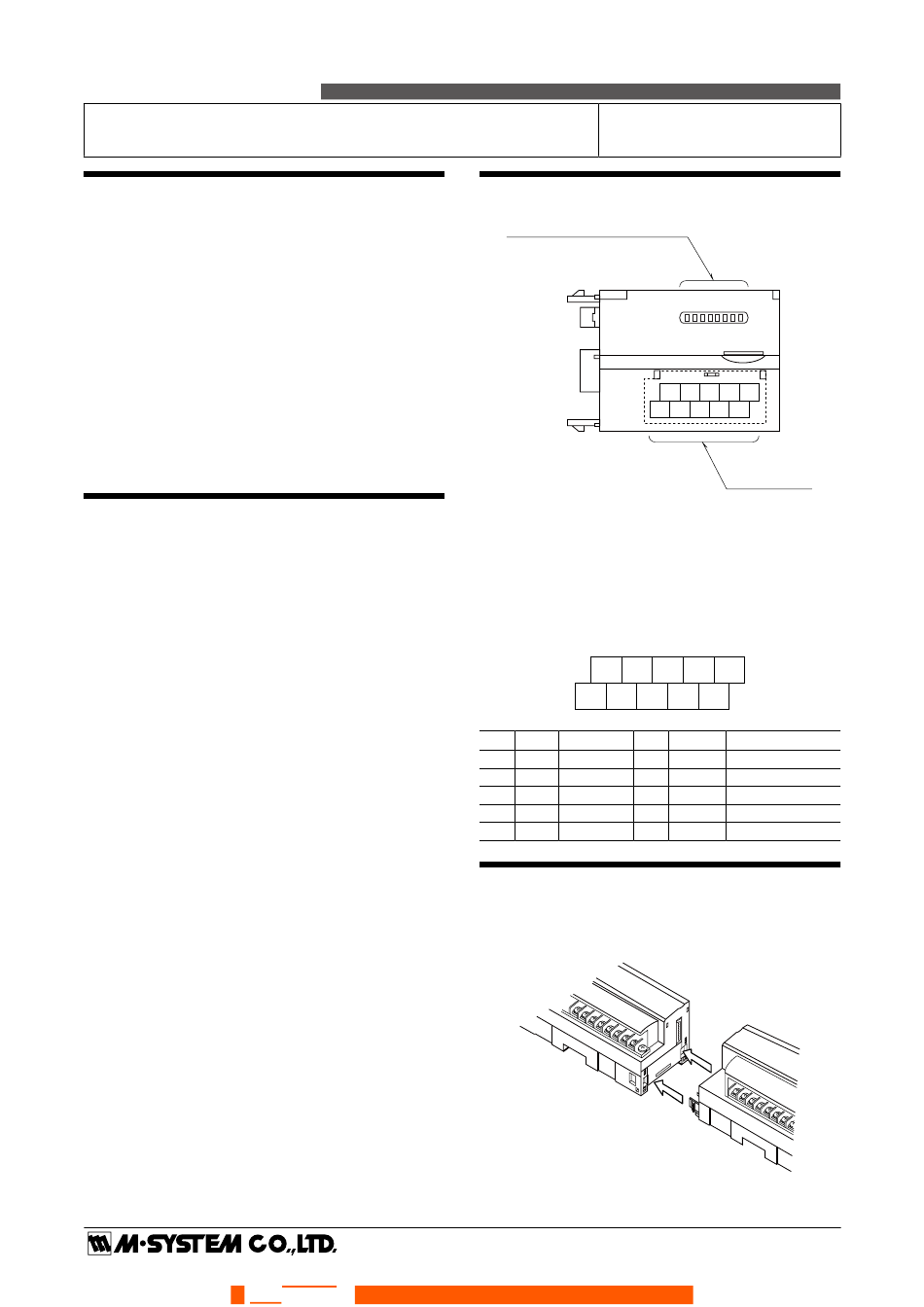

COMPONENT IDENTIFICATION
Discrete Output Status Indicator LED
■ DISCRETE OUTPUT STATUS INDICATOR LED
Discrete output extension modules have LED indicators
showing output signal status.
Contact ON: LED ON
Contact OFF: LED OFF
■ OUTPUT TERMINAL ASSIGNMENT
NO.
1
2
3
4
5
CONNECTING THE EXTENSION MODULE
1) Remove the extension connector cover located at the side
of the basic module.
2) Connect the extension module.
3) Mount the combined module on a DIN rail.
056 222 38 18 mailbox@sentronic.com
AG
R7E-EC8B
MODEL
0 1 2
6 7
1 2 3
6 7 8 9
+24V Y1 Y3 Y5
1 2 3 4 5
0V Y0 Y2 Y4
ID FUNCTION NO. ID
0V 0V 6 +24V
Y0 Output 0 7 Y1
Y2 Output 2 8 Y3
Y4 Output 4 9 Y5
Y6 Output 6 10 Y7
EM-7807-P Rev.2
www.sentronic.com
R7E-EC8B
3 4 5 6 7
8 9 10
4 5
Output Terminals
10
Y7
Y6
FUNCTION
24V DC (common)
Output 1
Output 3
Output 5
Output 7
P. 1 / 2
